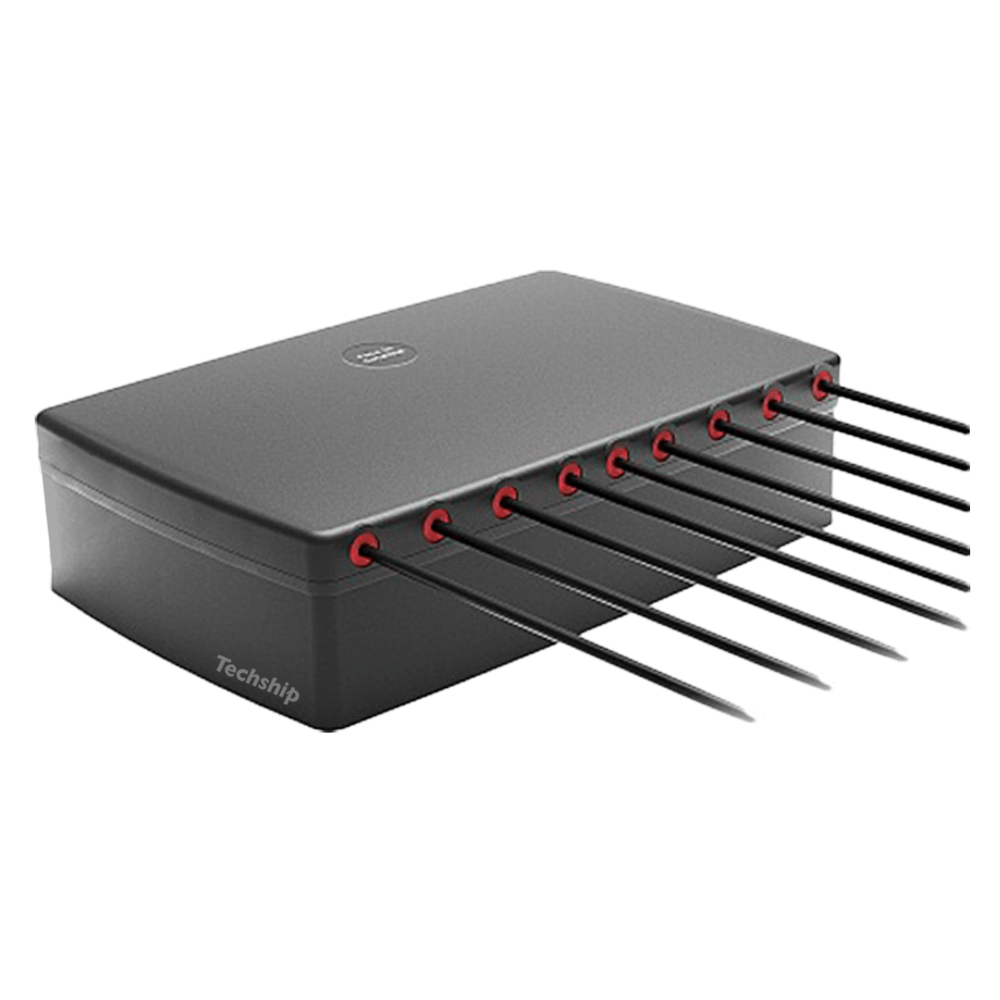

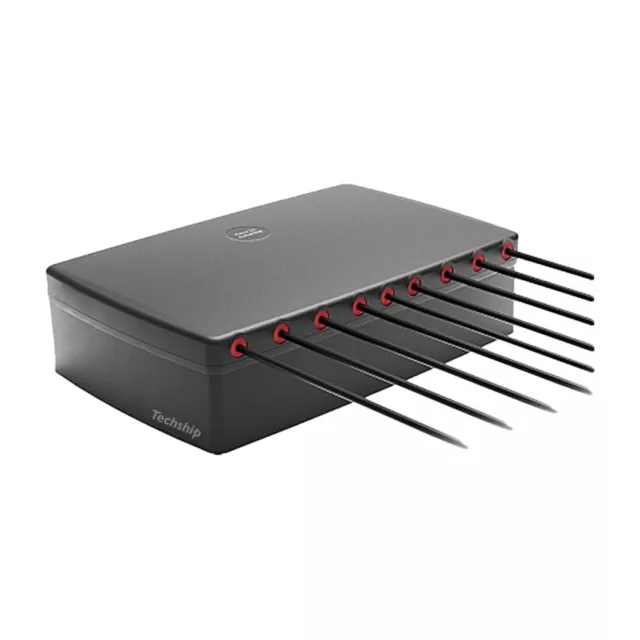

2J 2J4H86MCFf 5GNR MIMO/Wi-Fi 6E MIMO +GNSS 9in1 antenna, 3M, Magnetic

Article Number: 11518

|

Supplier Number: 2J4H86MCFF-300D302-C899GRST_C899GRST_C899GRST_C899

Brand

2J Antennas

Technology

5G NR, 4G LTE, LTE CBRS, 3G, 2G, GNSS, WiFi 2.4GHz, WiFi 5.0GHz, WiFi 6.0GHz

Mounting method

Magnetic

Antenna Location

Outdoor, External

All Technical Details

Variant description


≥ 1

$159

Download Datasheet

Product Details & Tech Facts

Description

<B>Sleekest 9-in-1 Antenna Design on the Market, Accelerating 5GNR and Wifi-6E Performance</B><br />

The patent pending super low profile 9-in-1 magnetic mount antenna (2J4H86MCFd) is 55% smaller than what the competition can offer and is designed for 5GNR, 2.4/5.0/6.0 and GNSS bands that operate within 617 MHz – 7125 MHz frequencies. This high-performance antenna offers superior connectivity, accuracy, and reliability for ultra-wide band MIMO, wireless, and navigation, allowing devices to remain online while moving through different coverage areas. These features make it a leading antenna solution for the next generation of mobile services including high-end public safety, transportation, automotive, consumer and commercial industries. This antenna is available in various combinations to meet different application needs.


4 X Cellular 5GNR/4G LTE/3G/2G MIMO

Cable 1-4 are designed for cellular and mobile devices that operate within 5GNR, FirstNet, CBRS, 4G LTE, CAT-X, CAT-MX, CAT-NBX, 3G, 2G, Cellular, HSPA+, UMTS, WCDMA, CDMA, GSM, GPRS, EDGE, EV-DO standards. With accelerated 5GNR technology and edge computing workloads, this antenna outperforms its competition. Tuned with high gain and with high efficiency within 617 – 5925 MHz frequency bands while maintaining full range 360-degree signal strength and quality.


4 X WiFi-6E 2.4/5.0/6.0 GHz ISM MIMO

Cable 5-8 are designed for devices that operate within Wifi, BT, ZigBee, ISM, SigFox and LoRa standards. The 2.4/5.0/6.0 GHz bands and WiFi6E technology combine long-range, short-range, and very large capacity without competing with traffic from other devices or networks. This results in high bandwidth channels, improved security, less interference, and reduces network congestion making it ideal for applications that demand faster WiFi and consistent network availability.


GNSS GPS/GLONASS/BeiDou/Galileo/QZSS

Cable 9 is designed for precision navigational applications that operate within GPS, GLONASS, BeiDou, Galileo and QZSS standards. The signal radiates on all planes and maximizes connectivity by avoiding conflict with propagating signals common with penetrating obstructions and dead spots in urban areas. This connection can maintain an active gain of 14 dB @ 2.7 V with an out of bound rejection of ~43 dBc. Designed with electrostatic discharge (ESD) protection for up to 2KV and a SAW pre-filter blocking inadequate frequencies (within 1561-1602 MHz) from passing from the antenna to the receiver.


Installation / Environmental

This ground plane independent antenna can be easily installed with the heavy-duty magnetic mount on metal surfaces such as vehicles and metal buildings for permanent or temporary applications. We also offer this antenna with adhesive mount, please see product 11519, 5GNR MIMO/Wi-Fi 6E MIMO +GNSS 9in1 antenna, 3M, Adhesive for more details. The low-profile housing measures only 198 x 126 x 50.7mm making this antenna 55% smaller than any other antenna on the market. Manufactured with ASA UV stable material and full IP67/IP69 rating offer durability and the highest level of protection against water and moisture. This antenna is available in black or white color.

2J4H86MCFd connections are standard SMA-Male (5GNR & GNSS)/ SMA-Male-RP (WiFi-6E ISM) and come with 300cm long D302 (5GNR/WiFi-6E ISM)/ LL100 (GNSS) cables. All the cables feed from one side of the antenna housing and are tuned for optimal performance.

This antenna is designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.


Technology

5G NR 4G LTE LTE CBRS 3G 2G GNSS WiFi 2.4GHz WiFi 5.0GHz WiFi 6.0GHz

Cable Specification

LL100 DACAR 302

Active/Passive GPS

Active

Mounting method

Magnetic

Antenna Connector type

SMA-M RPSMA-M

Width

198 mm

Antenna Location

Outdoor External

IP Class

IP67 IP69

Length

127 mm

Antenna Combination

9in1

Cable length

300 cm

Height

51 mm

Antenna Frequency

617-960/1427-2690/3300-5000/5150-5925 MHz MHzGPS 1575.42 MHzGLONASS 1598-1610 MHzWifi 6000 MHzWifi 5000 MHzWifi/Bluetooth 2400 MHz

Operating Temperature Range

-40 - 85 °C
