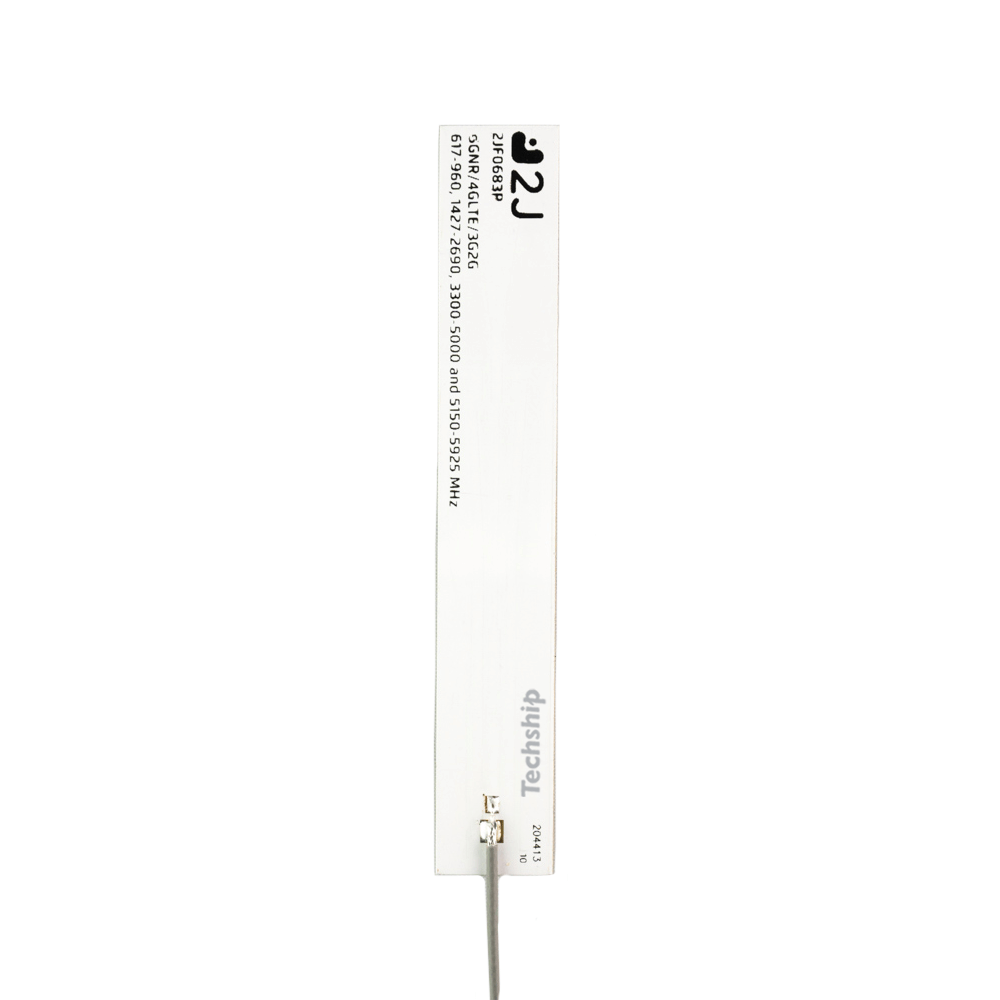

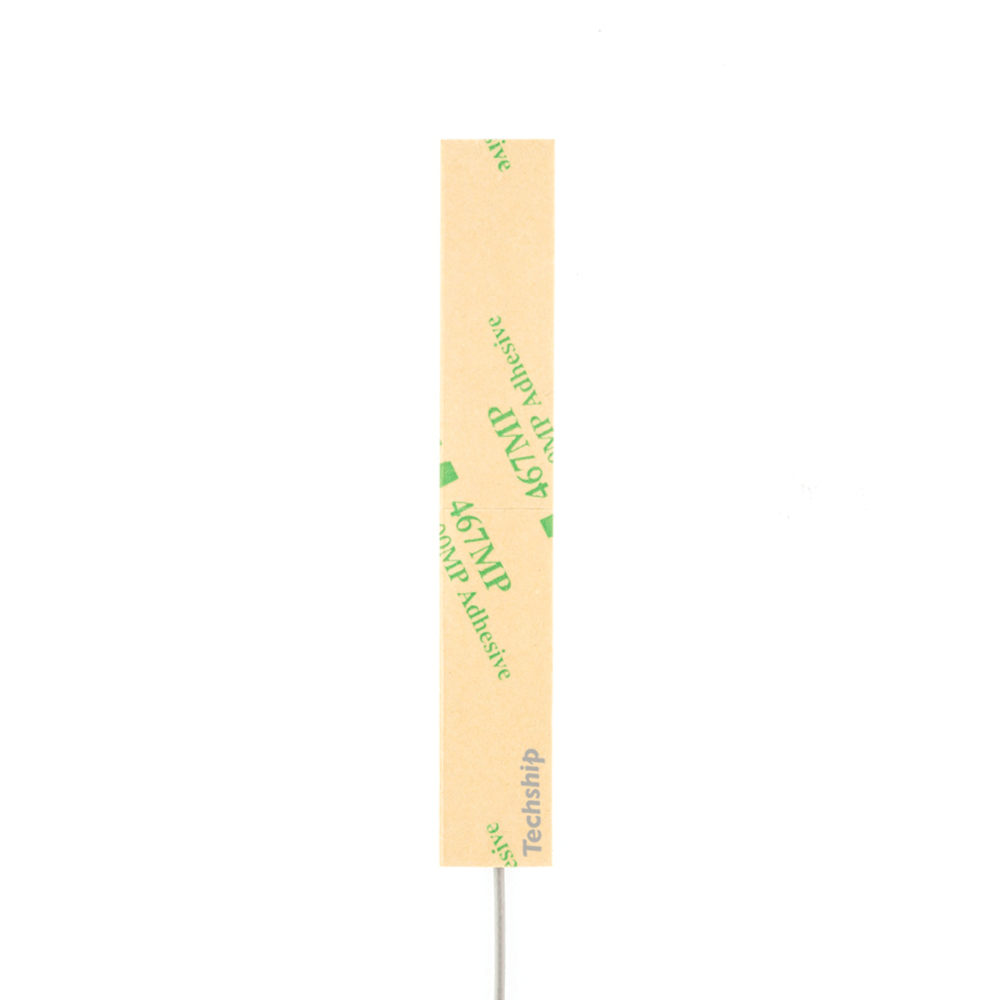

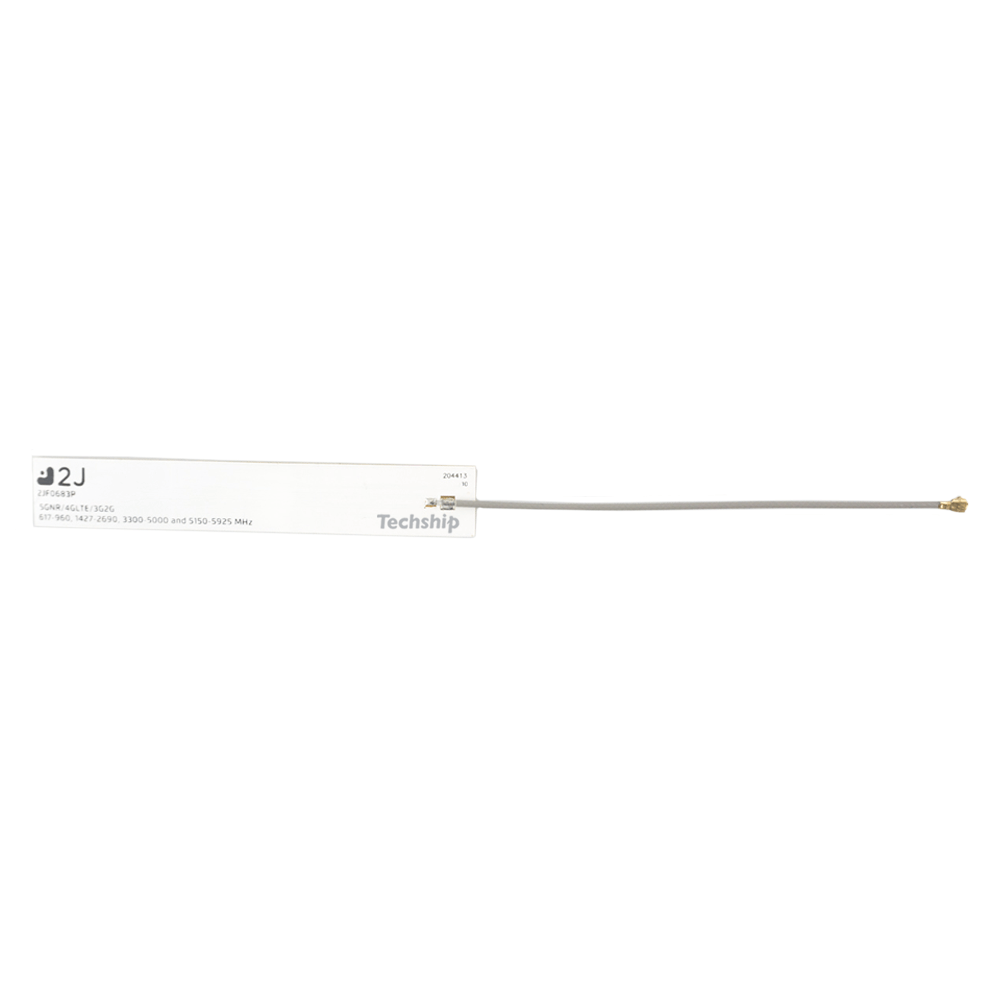

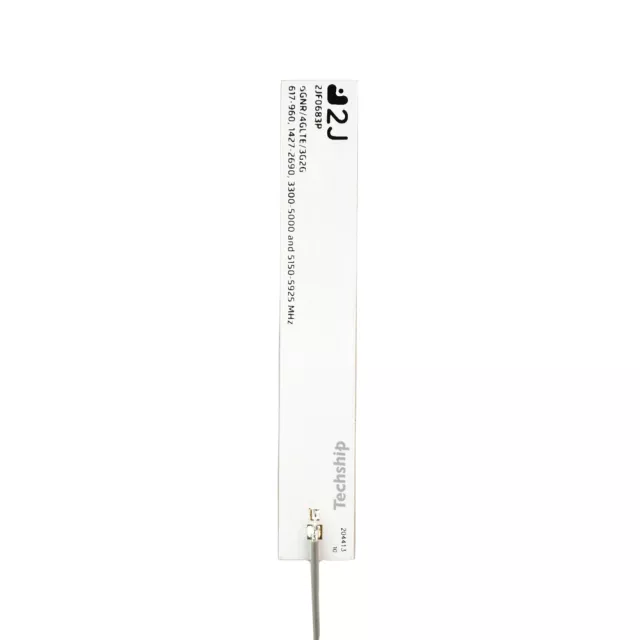

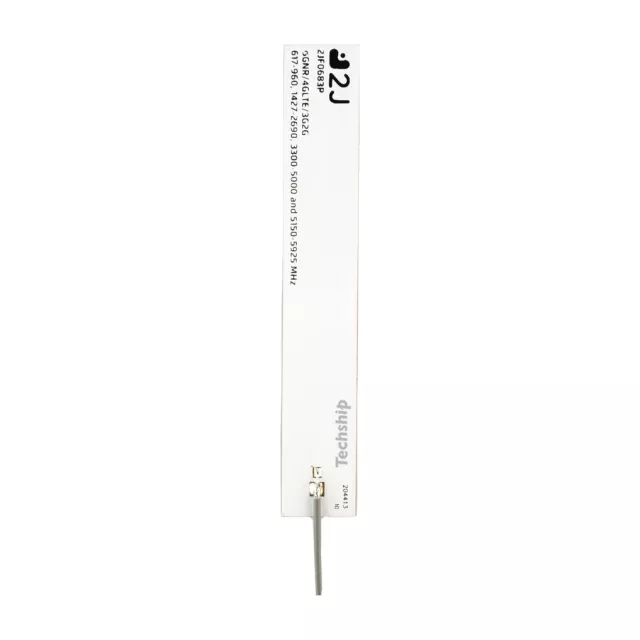

2J 2JF0683P 5G sub6/LTE antenna adhesive, 10cm, U.FL
Article Number: 11254
|
Supplier Number: 2JF0683P-010MC137-UF
Brand
2J Antennas
Technology
5G NR, 4G LTE, LTE CBRS, 3G, 2G
Mounting method
Adhesive
Antenna Location
Internal
All Technical Details
001 – 2JF0683P-010MC137-UF
Out of stock
Variant description
≥ 1
$8.30
Product Details & Tech Facts
Description
This 5GNR (sub6 GHz) LTE high performing ultra-wideband antenna is the smallest in the market. It is designed with ultra-thin dimensions of 90 x 14 x 0,2 mm and with strong adhesive mounting allowing for easy installation.
Technology
5G NR 4G LTE LTE CBRS 3G 2G
Antenna Frequency
617-960/1427-2690/3300-5000/5150-5925 MHz MHz
Mounting method
Adhesive
Cable length
10 cm
Operating Temperature Range
-40 - 85 °C
Antenna Location
Internal
Cable Specification
1.37mm coax
Height
0.2 mm
Antenna Connector type
IPEX MHF/U.FL
Width
14 mm
Antenna Combination
No
Length
90 mm
