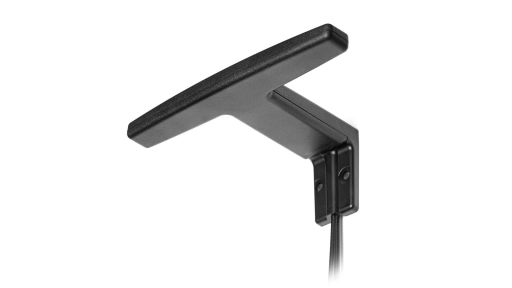

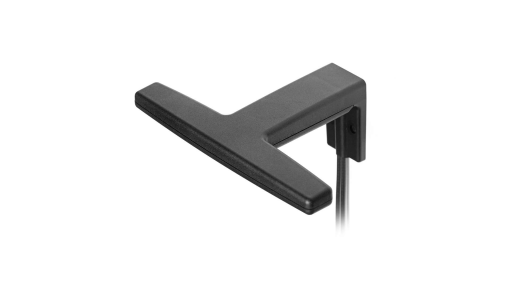

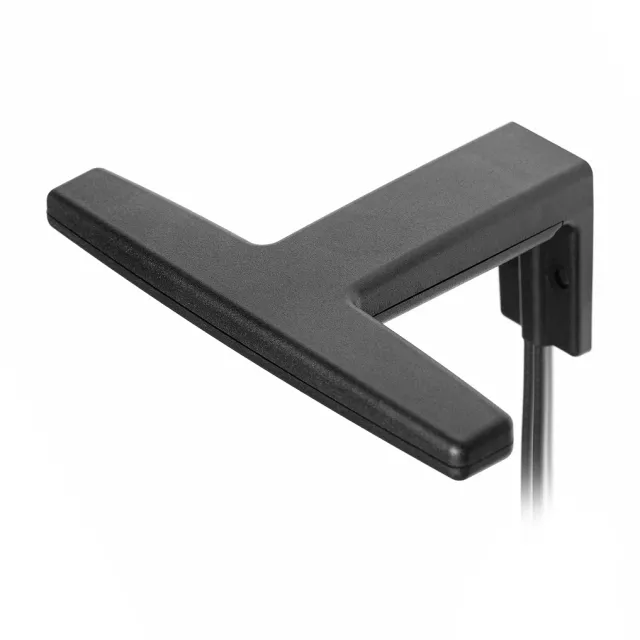

2J 2J2424Ha LTE MIMO antenna "Spitfire", wall mount, 3M, SMA-M

Article Number: 12380

|

Supplier Number: SI319100083

Brand

2J Antennas

Technology

4G LTE, 3G, 2G

Antenna Location

Outdoor, External

Mounting method

Wall mount

All Technical Details

Variant description

≥ 1

$21.50

Download Datasheet

Product Details & Tech Facts

Description

The 2J2424Ha MIMO antenna delivers exceptional performance with its dipole design, ground plane independence, and wall-mount versatility. This system is perfectly suited for installation on a wide range of indoor or outdoor surfaces without sacrificing performance. Whether affixed to a wall or on a rooftop, this dual antenna consistently ensures robust signal reception, making it the top choice for systems where instant communication is crucial.

Suggested applications include:

  • Alarm Signaling

  • Smart Homes

  • Fire Departments & First Responders

  • Cellular Networks

  • Internet of Things

  • Rural Broadband

  • Public Safety

  • Logistic and Shipping

  • Mission Critical Communication

  • Remote Monitoring and Control

  • Digital Signage

2J2424Ha maintains a maximum peak gain of ~3.5 dBi and a maximum efficiency of ~55% across all cables.

The #1 Trusted Solution For Alarm Signaling Applications

The 2J2424Ha Cellular/4G LTE Wall Mount Antenna is an excellent choice for alarm signaling applications. In alarm systems, every second counts, and this antenna ensures seamless connectivity, even in remote or challenging locations. Whether for security alarms, fire detection systems, or emergency notifications, this antenna provides the robust wireless connectivity required to transmit critical alerts efficiently. By strategically installing these compact and lightweight antennas outside a house or building, you can significantly enhance the reliability of your alarm system for seamless and safe delivery of data transmission.

Installation / Environmental

Measuring only 123 × 81 × 45mm, the compact 2J2424Ha is engineered to thrive in harsh conditions, thanks to its IP67 and IP69 certifications. Its user-friendly wall-mount design streamlines installation, and the ASA radome, available in either black or white, guarantees durability and aesthetic adaptability.

Both cables have a 300 cm long low-loss LL100 cable and SMA-Male connector. The connectors and cables are fully customizable to meet your specific requirements, and our team of highly experienced engineers is readily available to assist in selecting antennas that perfectly align with your unique usage needs. For more information, please don't hesitate to reach out to us.

A single cable version of this antenna is also available. Please explore Antenna 2J2424H for more details.

Technology

4G LTE 3G 2G

Antenna Connector type

SMA-M

Length

81 mm

Antenna Location

Outdoor External

IP Class

IP67 IP69

Height

45 mm

Mounting method

Wall mount

Cable length

300 cm

Antenna Combination

2in1

Cable Specification

LL100

Operating Temperature Range

-40 - 85 °C

Antenna Frequency

698-960/1710-2170/2500-2700 MHz MHz

Width

123 mm
