Compex embedded board WPJ531LV-A

Article Number: 10415

|

Supplier Number: WPJ531LV-A 7A04PO166

Brand

Compex

Wi-Fi Frequency

2.4 GHz

Wi-Fi Standard

Wi-Fi 4 - 802.11b/g/n

Data Streams

2T2R MIMO

All Technical Details

Variant description

Contact sales@techship.com for more information

Download Datasheet

Product Details & Tech Facts

Description

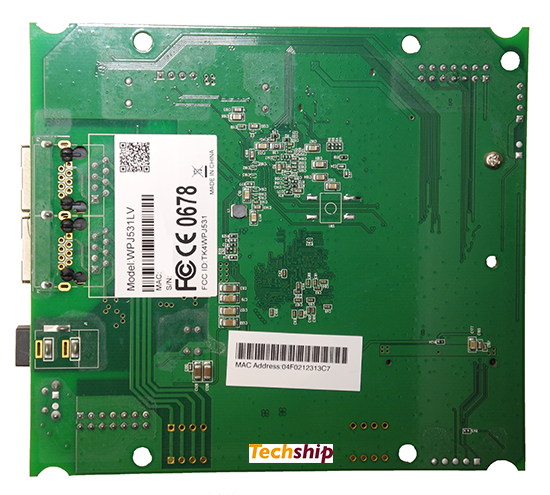

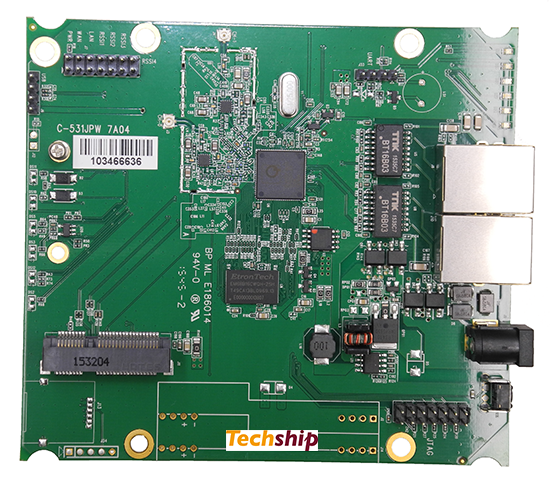

The Compex embedded board WPJ531LV-A is a 2.4GHz 2×2 Wireless Embedded Board with MiniPCI-e Slot.



FEATURES:

• Cost Effective QCA9531 WiSoC, 650Mhz CPU

• CompexWRT and OpenWRT firmware supported

• On-board 2×2 300Mbps 802.11n (max 23dBm output power (per chain))

• Dual Radio Solution (on-board radio and 1 miniPCIe slot that supports all Compex 802.11ac/abgn radio)

• Integrated Passive PoE

• Support 2 x FE Ports



APPLICATIONS:

• Dual Band, Dual Concurrent Access Point

• 802.11b/g/n + 802.11a/n/ac Access Point

• Point-to-Point and Point-to-Multipoint Wireless Bridge

• Wireless Base Station

• Wireless Customer-Premises Equipment (CPE)

• Support for Third Party 3G/LTE Radio Module

Wi-Fi Frequency

2.4 GHz GHz

Max output power

23 dBm

Wi-Fi Standard

Wi-Fi 4 - 802.11b/g/n

Operating Temperature Range

-20 - 70 °C

Data Streams

2T2R MIMO

Certification

CE FCC

Chipset

Qualcomm Atheros QCA9531

Driver Support

OpenWRT CompexWRT
