Article Number: 12750

|

End of Life

Supplier Number: WLE7002E25 7A0674S-TE

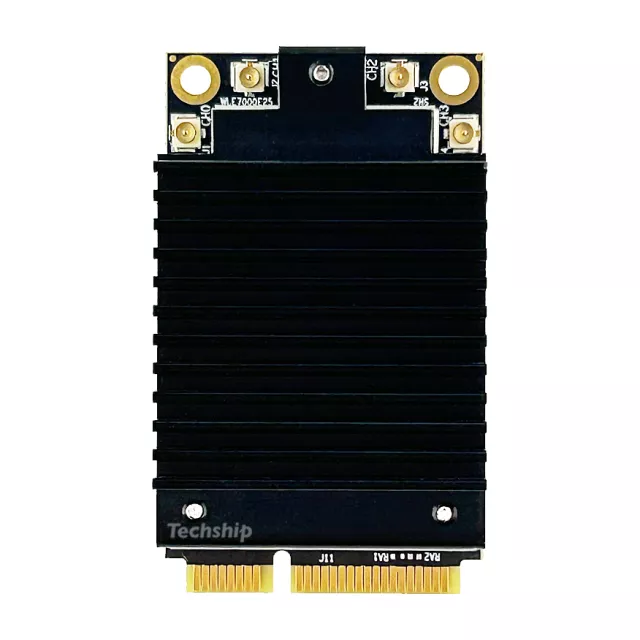

Compex WLE7002E25 .11be 2x2+2x2 mPCIe

Brand

Compex

AP/Client Mode

AP mode

Wi-Fi Frequency

2.4 GHz, 5 GHz

Form Factor

mPCIe - full size

All Technical Details

Contact sales@techship.com for more information

Out of Stock

Download Datasheet

Product Details & Tech Facts

Description

NOTE: NRND - not recommended for new design as this variant will be replaced with a diplexer version (12751) featuring the same specs but with half the antennas!

The Compex WLE7002E25 .11be mPCIe AP module supports DBDC (2x2 + 2x2) operation on 2,4 and 5 GHz frequencies, perfect for Wi-Fi 7 enterprise router solutions. The Qualcomm QCN6274 chipset with 4096-QAM modulation enables speeds of up to 2882 Mbps on the 5 GHz band with a PCIe gen 3.0 connection to the host via its mPCIe connector.

The module also comes in an industrial temperature range variant based on the QCN9274 chipset.

*Recommended Linux Kernel 6.5 with ATH12K open-source drivers.

AP/Client Mode

AP mode

Data Streams

2T2R + 2T2R

Operating Temperature Range

-20 - 70 °C

Wi-Fi Frequency

2.4 GHz GHz5 GHz GHz

Driver Support

Linux

Antenna Connectors

IPEX MHF/U.FL

Form Factor

mPCIe - full size

Chipset

QCN6274

Data Interface

PCIe

Max output power

20 dBm

Wi-Fi Standard

802.11a/b/g/n/ac/ax/be

Certification

TBA
