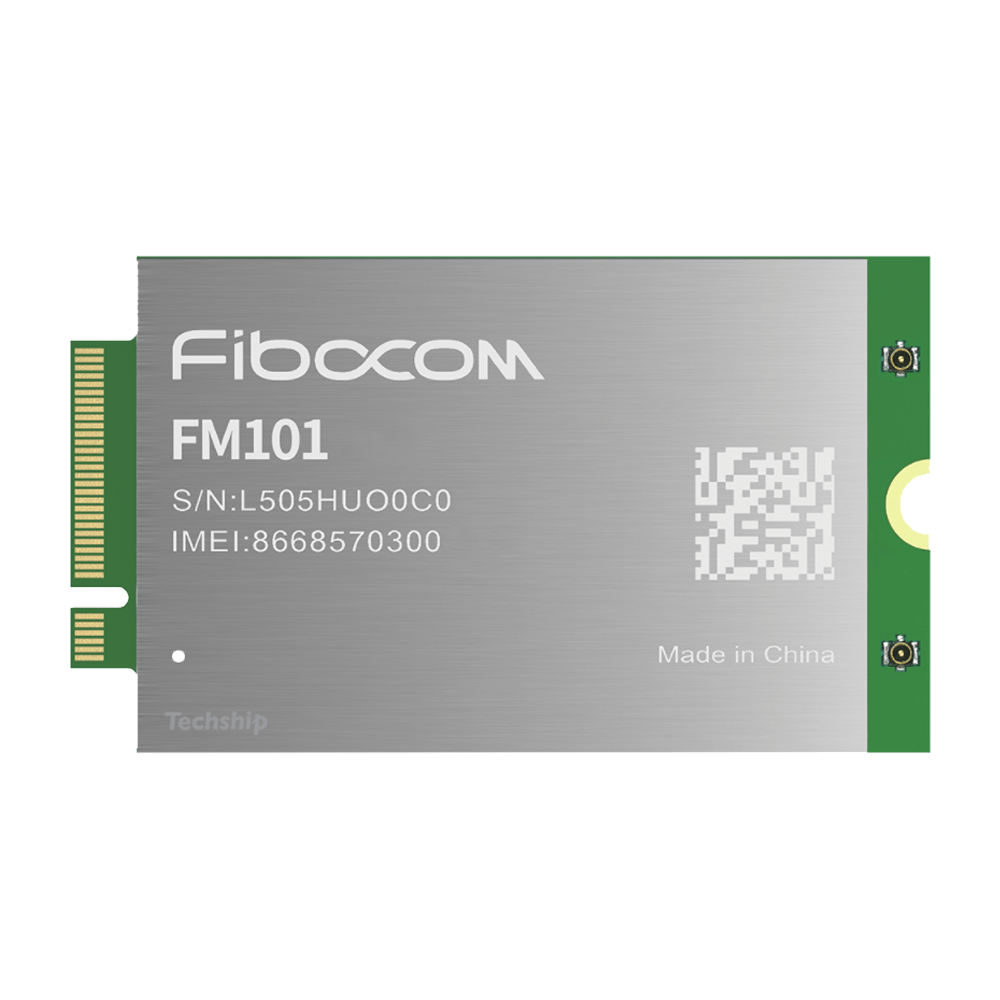

Fibocom FM101-EAU LTE Cat-6 M.2

Article Number: 11455

|

Supplier Number: FM101-EAU-20-00

Brand

Fibocom

Form Factor

M.2 3042

Primary Technology

LTE - cat 6

Region

Europe, Asia, Australia

All Technical Details

Variant description

≥ 1

$51.40

Download Datasheet

Product Details & Tech Facts

Description

Fibocom FM101-EAU is an optimized LTE-A module designed to boost highly efficient connectivity, ideally suitable for applications such as CPE, STB, IIoT etc.

FM101 series is powered by Qualcomm Snapdragon SDX12 and supports more than 20 LTE bands as well as 3G fallback delivering data rates up to 300Mbps downlink and 50Mbps uplink.
With abundant functionalities such as DFOTA, VoLTE and Audio, FM101 series supports multi-constellation GNSS receiver for high-performance positioning and navigation. It is compatible with Fibocom’s LTE Cat 4 module NL668 modules series, enabling customers to migrate from LTE to LTE-A and eliminating investment concerns.
With multiple Internet protocols and industry-standard interfaces for main operating systems (such as USB and PCIedrivers for Windows, Linux and Android), FM101-EAU-20 can be used a variety of cellular terminals such as CPE, STB, IPC, ODU and PDA, extending the applicability to a wide range of eMBB application scenarios such as Industrial IoT, Smart Cities, C-V2X, etc. The module is able to cover mobile network in EMEA / Australia.

Key benefits
• Compliant with 3GPP Release 12
• Standard M.2 NGFF form factor
• GNSS receiver available for applications requiring fast and accurate positioning in any environment.

Dev.kit can be found here; 11142 - Fibocom EVKB-M2

Form Factor

M.2 3042

UMTS Bands

B1 (2100) B3 (1800) B5 (850) B8 (900)

Chipset

Qualcomm SDX12

Driver Support

Linux Windows Android

Primary Technology

LTE - cat 6

Max DL Speed

300 Mbps

GNSS technology

GPS GLONASS Galileo BeiDou

Data Interface

USB 3.0 USB 2.0 Serial / UART GPIO SPI I2S I2C

Region

Europe Asia Australia

Max UL Speed

50 Mbps

Antenna Connectors

IPEX MHF-4

Audio interface

Digital I2S signal input/output in socket

LTE Bands

B1 (FDD 2100) B3 (FDD 1800) B5 (FDD 850) B7 (FDD 2600) B8 (FDD 900) B20 (FDD 800DD) B28 (FDD 700) B32 (SDL 1500) B38 (TDD 2600) B40 (TDD 2300) B41 (TDD 2500)

Operating Temperature Range

-30 - 75 °C

SIM interface

Through M.2 connector

Fallback

3G

GNSS

Yes

Certification

CE RED UKCA RoHS REACH RCM

Voice Call Support

Yes
