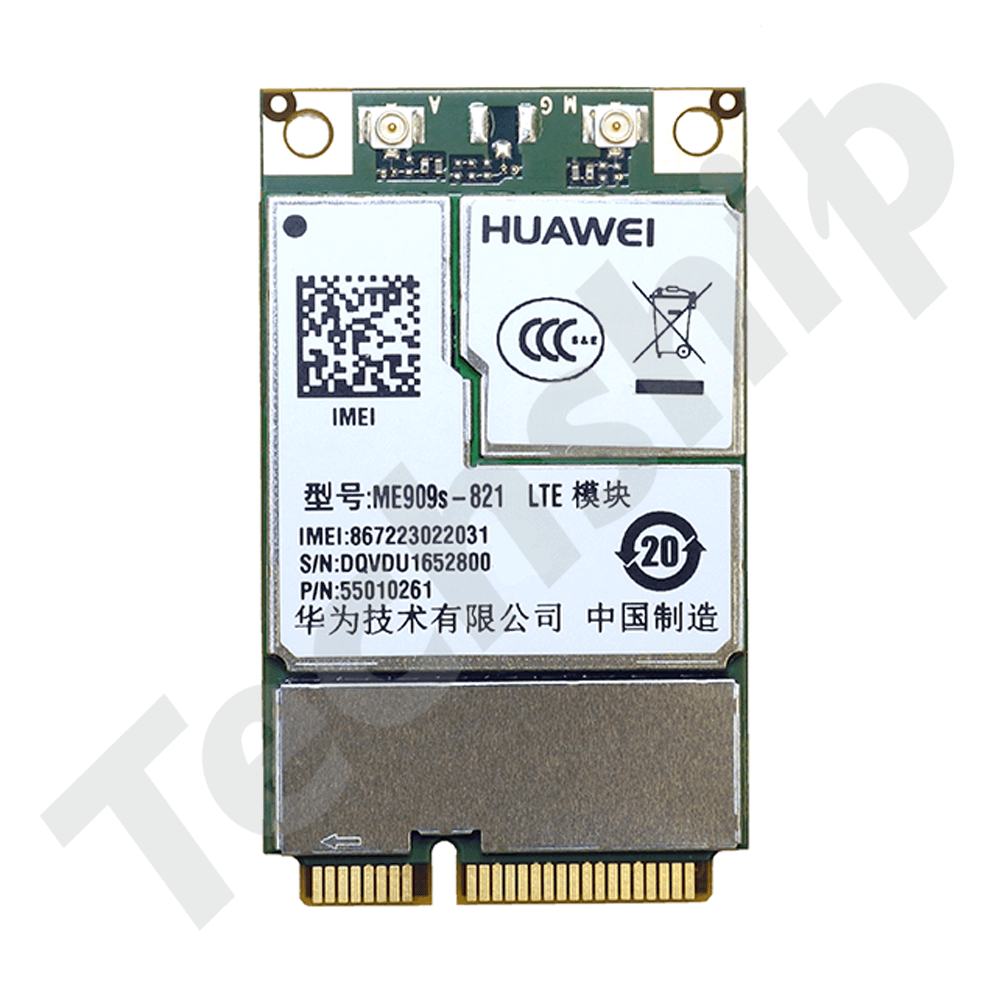

Huawei ME909s-821 mPCIe
Article Number: 10274
|
Supplier Number: 55010271
|
End of Life
Brand
Huawei
Form Factor
mPCIe - full size
LTE Bands
B1 (FDD 2100), B3 (FDD 1800), B8 (FDD 900), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500)
Region
Asia, China
All Technical Details
Discontinued
Variant description
Contact sales@techship.com for more information
Product Details & Tech Facts
Description
ME909s-821 is the first LTE cat4 module based on Hi-Silicon chipset. Which is high-quality designed LTE module in small size and Huawei standard LGA form factor, especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.
ME909s-821 supports 150Mbps downlink data rate, including enhanced features like FOTA, USSD and Huawei enhanced AT commands.
ME909s-821 supports China region LTE Bands including both FDD-LTE & TDD-LTE, and has two different form factor: LGA and Mini PCIe form factor.
With Huawei pin-to-pin form factor, it is easy to migrate from MU609, MU709 or ME909u family to ME909s-821.
To develop applications and to test the mPCIe module separately the article 10069 Techship MiniPCIe Developer Kit incl. Technical support could be very helpful.
Form Factor
GSM/EDGE Bands
Antenna Connectors
Data Interface
Size
LTE Bands
GNSS technology
Chipset
Driver Support
Region
Max DL Speed
150 Mbps
Certification
Audio interface
Primary Technology
Max UL Speed
50 Mbps
Operating Temperature Range
-40 - 85 °C
Voice Call Support
Yes
UMTS Bands
GNSS
No
Extended Operating Temperature Range
-40 - 85 °C
FOTA Firmware Updates
Yes
