Huawei ME936
Article Number: 10161
|
Supplier Number: 55010652
|
End of Life
Brand
Huawei
Form Factor
M.2 3042
Primary Technology
LTE - cat 3
LTE Bands
B1 (FDD 2100), B2 (FDD 1900), B3 (FDD 1800), B4 (FDD 1700 / AWS), B5 (FDD 850), B7 (FDD 2600), B8 (FDD 900), B13 (FDD 700c), B17 (FDD 700bc), B20 (FDD 800DD)
All Technical Details
Product Details & Tech Facts
Description

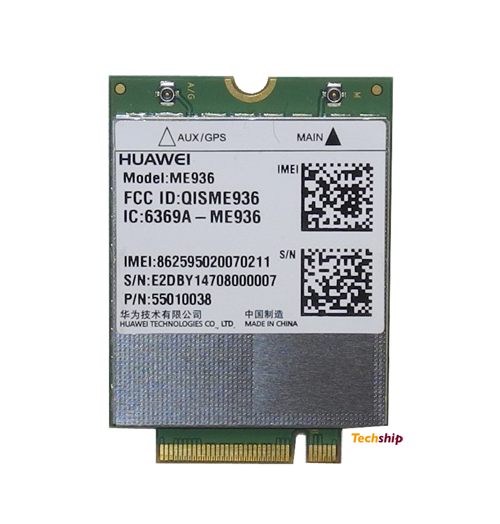

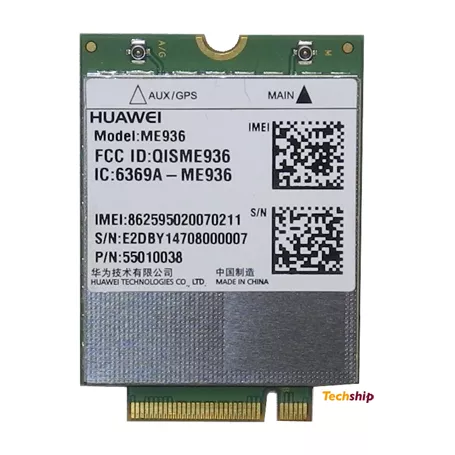

The Huawei ME936 is an M.2 (NGFF) module that supports 10 (!) LTE FDD bands as well as penta-band DC-HSPA+/HSPA+/HSPA/UMTS for both North America aswell as EMEA.
This module's low power consumption, size, GNSS compability, global certification enable easy and flexible design for any system. The ME936 is an ideal choice for ultrabooks, notebooks and tablets.
Form Factor
Max DL Speed
100 Mbps
GNSS antenna support
Chipset
Primary Technology
Max UL Speed
50 Mbps
Antenna Connectors
Data Interface
LTE Bands
Certification
Driver Support
Region
GNSS
Yes
Operating Temperature Range
-20 - 70 °C
GSM/EDGE Bands
GNSS technology
Carrier Certification
Size
