Article Number: 12800

Supplier Number: S2-10B94

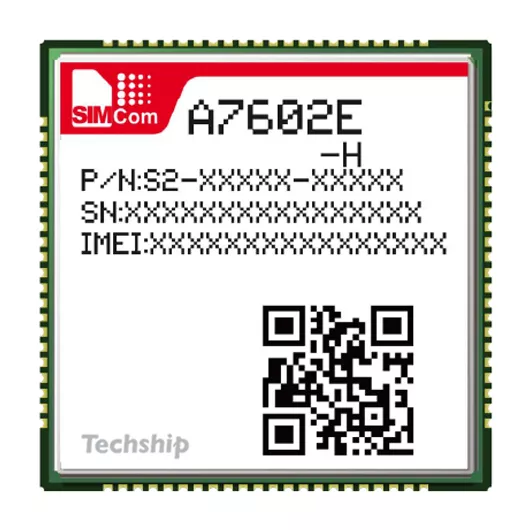

SIMCom A7602E-H TBBE LTE Cat-4 LGA

Brand

SIMCom

Region

Europe

Primary Technology

LTE - cat 4

Fallback

3G, 2G

All Technical Details

≥ 1

$19.30

Out of Stock

$19.30

Download Datasheet

Product Details & Tech Facts

Description

SIMCom A7602E-H TBBE is part of the A7602X-H series LTE Cat-4 modules from SIMCom. It is compatible with SIM5320/SIM5360 UMTS/HSPA+ modules and SIM7600/SIM7600-H LTE modules enabling a smooth migration path from 3G to LTE.

Key benefits

  • LTE Cat-4

  • Compatible with previous 3G and 4G designs

  • Cost-effective

This series consists of the following modules:

12796 - A7602E-H LABD Cat-4

12798 - A7602E-H LBBD Cat-4 w B28

12797 - A7602E-H TABE Cat-4 w GNSS

12800 - A7602E-H TBBE Cat-4 w B28 and GNSS

Dev.kit can be found here; 12804 - A7602E-H TE-KIT

Region

Europe

UMTS Bands

B1 (2100) B8 (900)

GNSS

Yes

Data Interface

USB 2.0 Serial / UART GPIO SDIO 3.0 ADC PCM I2C

Primary Technology

LTE - cat 4

GSM/EDGE Bands

B3 (1800) B8 (900)

GNSS technology

GPS GLONASS Galileo BeiDou

Chipset

ASR1803 ASR

Size

30x30x2.5 mm

Fallback

3G 2G

Max DL Speed

150 Mbps

Certification

CE RED UKCA RoHS REACH

Voice Call Support

Yes

LTE Bands

B1 (FDD 2100) B3 (FDD 1800) B5 (FDD 850) B7 (FDD 2600) B8 (FDD 900) B20 (FDD 800DD) B28 (FDD 700) B38 (TDD 2600) B40 (TDD 2300) B41 (TDD 2500)

Operating Temperature Range

-40 - 85 °C

FOTA Firmware Updates

Yes

Form Factor

LGA LCC

Max UL Speed

50 Mbps

Carrier Certification

Deutsche Telekom

Driver Support

Windows 10 Linux Android Windows 8.1 Windows 8 Windows 7
