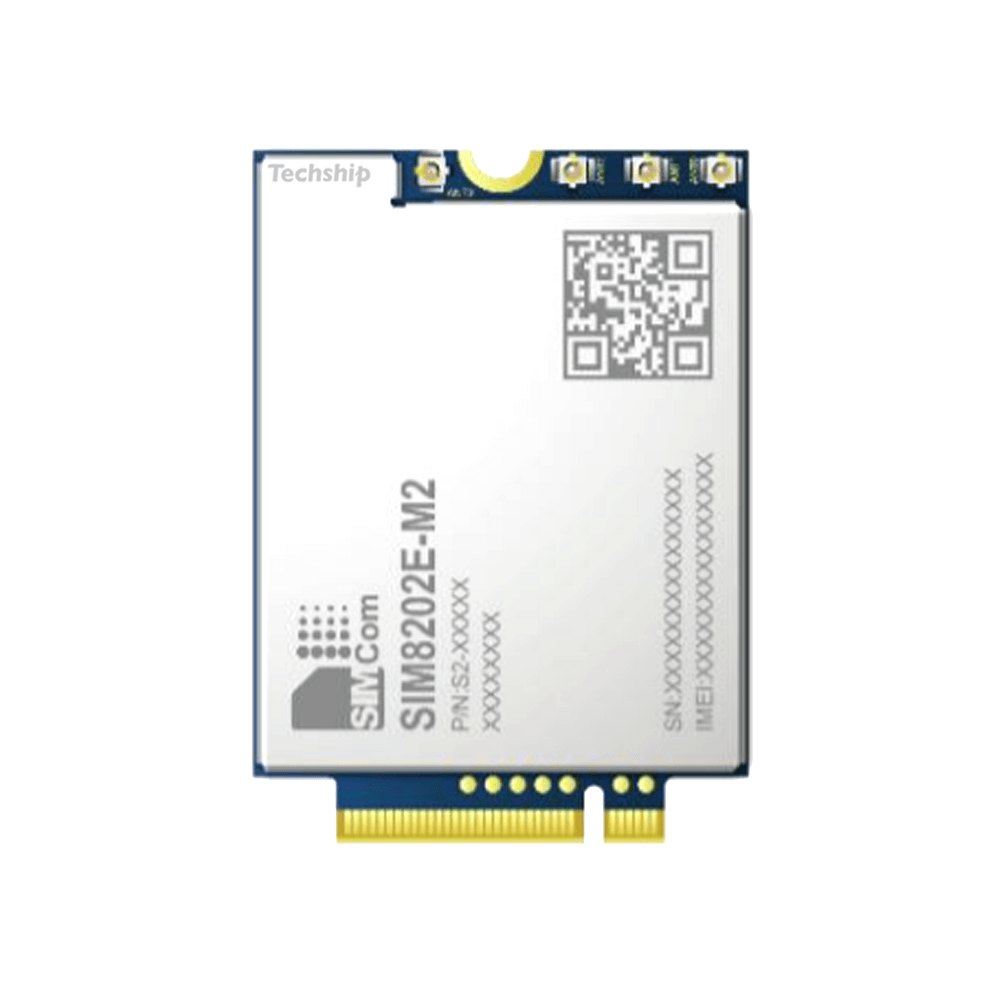

SIMCom SIM8202E-M.2 5G

Article Number: 11367

|

Supplier Number: S2-109HZ-Z31RR

Brand

SIMCom

Form Factor

M.2 3042

Primary Technology

5G sub-6

5G Bands

n1 (FDD 2100), n3 (FDD 1800), n5 (FDD 850), n7 (FDD 2600), n8 (FDD 900), n12 (FDD 700), n20 (FDD 800), n28 (FDD 700), n38 (TDD 2600), n40 (TDD 2300), n41 (TDD 2500), n48 (TDD 3600), n71 (FDD 600), n77 (TDD 3700), n78 (TDD 3500), n79 (TDD 4500)

All Technical Details

Variant description

FW LE14B03SIM8202M44A-M2

≥ 1

$330.90

Download Datasheet

Product Details & Tech Facts

Description

The SIM8202E-M2 is a Multi-Band 5G NR/LTE-FDD/LTETDD/HSPA+ module which supports R15 5G NSA/SA up to 2.4Gbps data transfer.

It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration forcustomer's applications.



The SIM8202E-M2 adopts M.2 form factor, TYPE 3042-S3-B. AT commands of SIM8202E-M2 are compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes the investments of customers and enables a short time-to-market.

It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.

Form Factor

M.2 3042

LTE Bands

B1 (FDD 2100) B3 (FDD 1800) B5 (FDD 850) B7 (FDD 2600) B8 (FDD 900) B12 (FDD 700ac) B13 (FDD 700c) B14 (FDD 700PS) B17 (FDD 700bc) B18 (FDD 800) B20 (FDD 800DD) B26 (FDD 850) B28 (FDD 700) B29 (SDL 700) B34 (TDD 2000) B38 (TDD 2600) B39 (TDD 1900) B40 (TDD 2300) B41 (TDD 2500) B42 (TDD 3500) B43 (TDD 3600) B48 (TDD 3600) B71 (FDD 600)

Primary Technology

5G sub-6

UMTS Bands

B1 (2100) B3 (1800) B5 (850) B8 (900)

Antenna Connectors

IPEX MHF-4

Certification

CE RED RoHS REACH NBTC ANATEL

Driver Support

Windows 10 Linux Android Windows 8 Windows 7

5G Bands

n1 (FDD 2100) MHzn3 (FDD 1800) MHzn5 (FDD 850) MHzn7 (FDD 2600) MHzn8 (FDD 900) MHzn12 (FDD 700) MHzn20 (FDD 800) MHzn28 (FDD 700) MHzn38 (TDD 2600) MHzn40 (TDD 2300) MHzn41 (TDD 2500) MHzn48 (TDD 3600) MHzn71 (FDD 600) MHzn77 (TDD 3700) MHzn78 (TDD 3500) MHzn79 (TDD 4500) MHz

Extended Operating Temperature Range

-40 - 85 °C

Region

Europe

Max DL Speed

2400 Mbps

GNSS

Yes

Operating Temperature Range

-30 - 70 °C

Size

42 x 30 x 2.3 mm

Fallback

4G LTE 3G

Max UL Speed

500 Mbps

GNSS technology

QZSS GPS GLONASS Galileo BeiDou

Chipset

Qualcomm SDX55

Data Interface

PCIe USB 3.1 USB 2.0 Serial / UART GPIO PCM I2C
