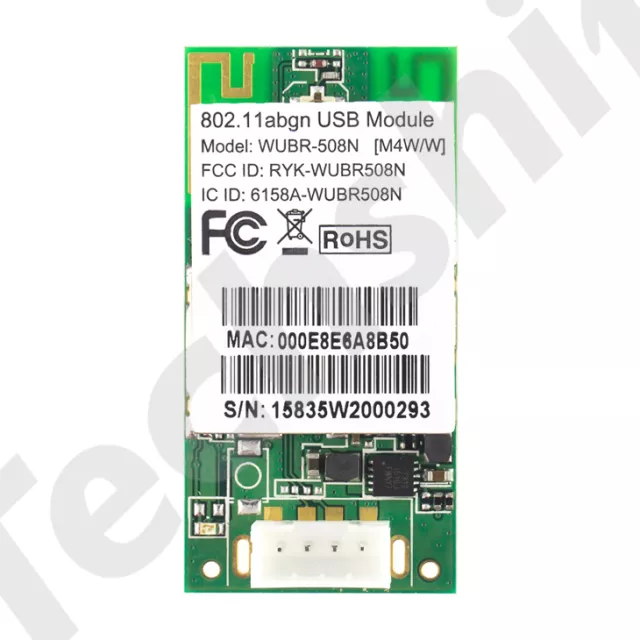

Sparklan WUBR-508N(M4W) WiFi 2.4GHz/5GHz

Article Number: 10179

|

Supplier Number: WUBR-508N(M4W)

|

End of Life

Brand

SparkLAN

Data Interface

USB 2.0

Wi-Fi Frequency

2.4 GHz, 5 GHz

Form Factor

4-pin wafer

All Technical Details

Variant description

Download Datasheet

Product Details & Tech Facts

Description

SparkLAN WUBR-508N Module Series, embedded with Ralink RT5572 chipset, is an 802.11n WiFi USB module. With advanced 2T2R MIMO technology, WUBR-508N Module Series delivers ultimate wireless data rate up to 300Mbps.



WUBR-508N Module Series also features advanced WEP encryption, WPA, and WPA2 to help to protect data over wireless communication without sacrificing the performance. Moreover, it reduces power usage by integrating Ralink Advanced Power Management. Driver is available for Windows XP/ Vista/ Win7, Linux, Android.



This wifi-module with article no 10179 has a standard USB 2.0 4-Pin Wafer connector and a u.fl connector for use with external antennas, but it is also available in a version with printed, onboard antenna. This version has article no 10182. Contact the Techship support if you are interested in this version.



The range of the WUBR-508N-series is:

10179, Sparklan WUBR-508N(M4W)

10180, Sparklan WUBR-508N(M4)

10181, Sparklan WUBR-508N(MU)

10184, Sparklan WUBR-508N(PU)

Data Interface

USB 2.0

Driver Support

Windows Windows 7 Windows Vista Windows XP Linux kernel 2.6.33 →

Wi-Fi Frequency

2.4 GHz GHz5 GHz GHz

Chipset

RT5572 Ralink

Antenna Connectors

IPEX MHF/U.FL

Form Factor

4-pin wafer

Max output power

17 dBm

Width

20 mm

Wi-Fi Standard

Wi-Fi 4 - 802.11a/b/g/n

Certification

CE FCC IC Telec

Length

40 mm

Data Streams

2T2R MIMO

Operating Temperature Range

0 - 50 °C
