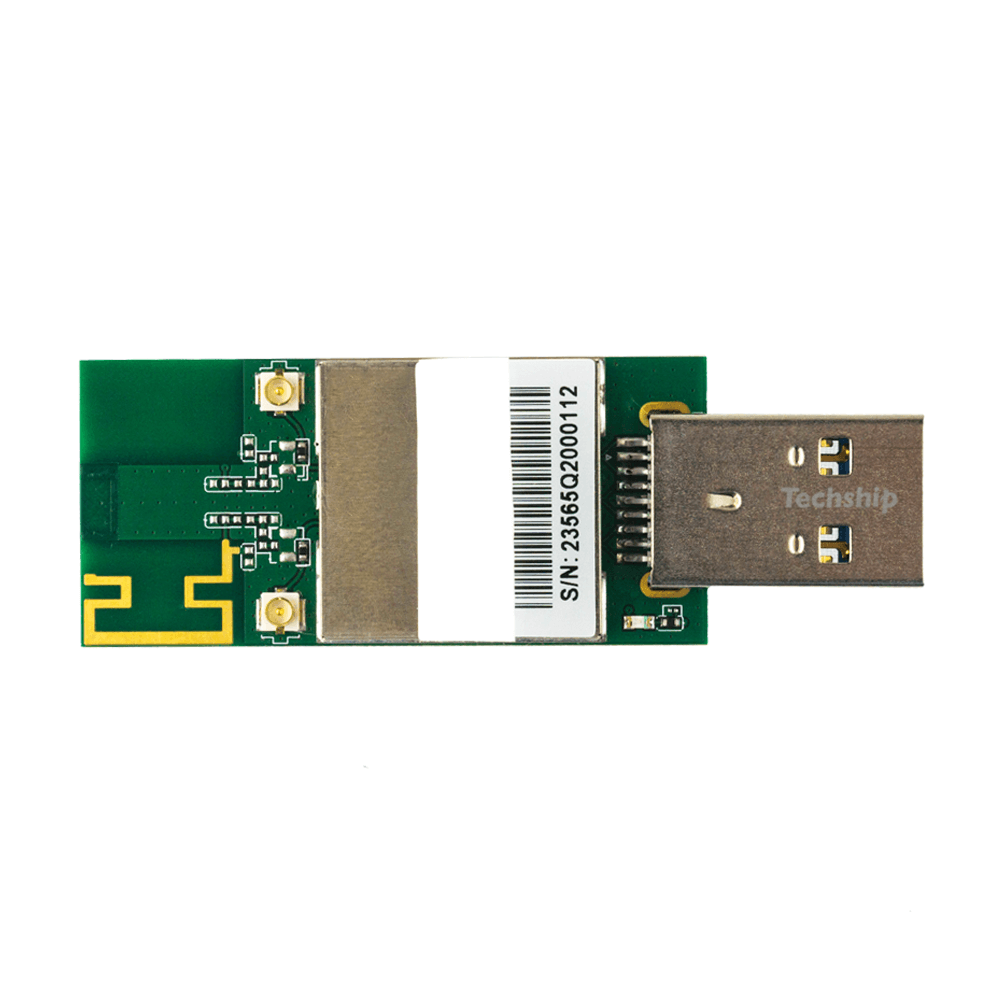

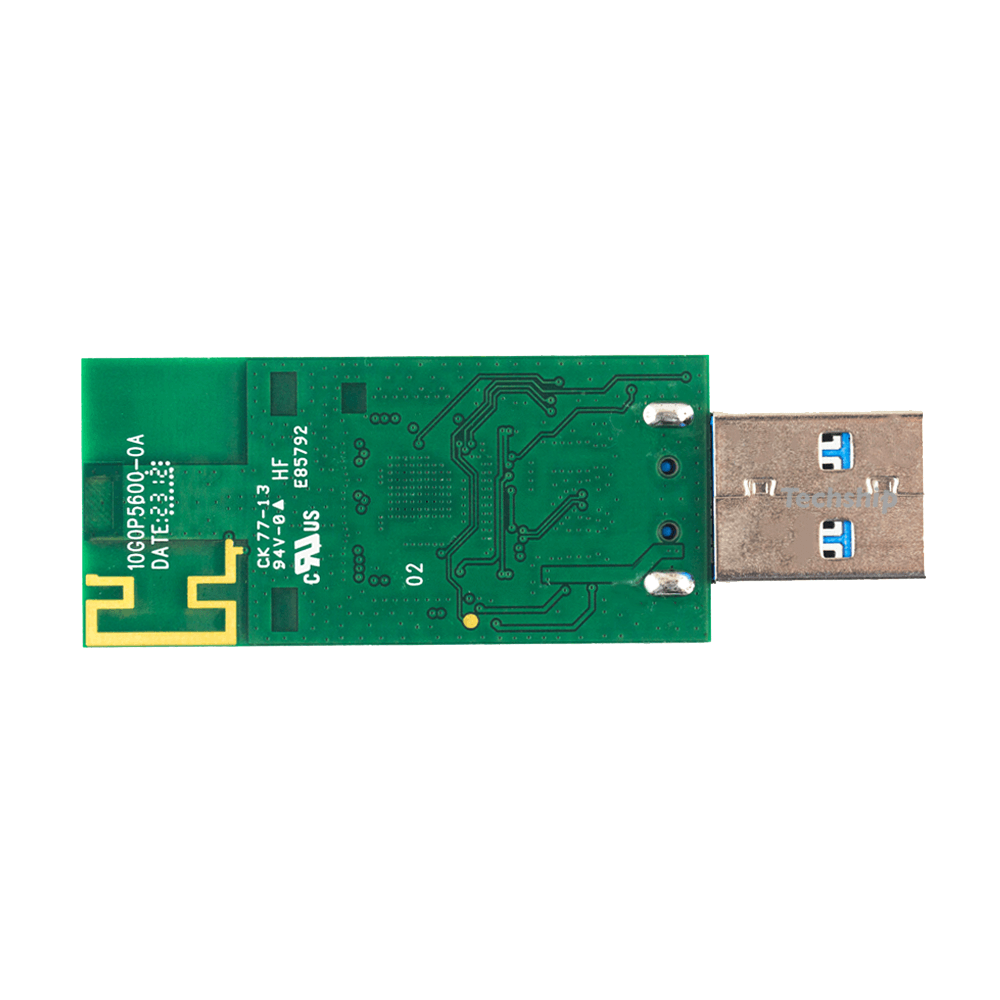

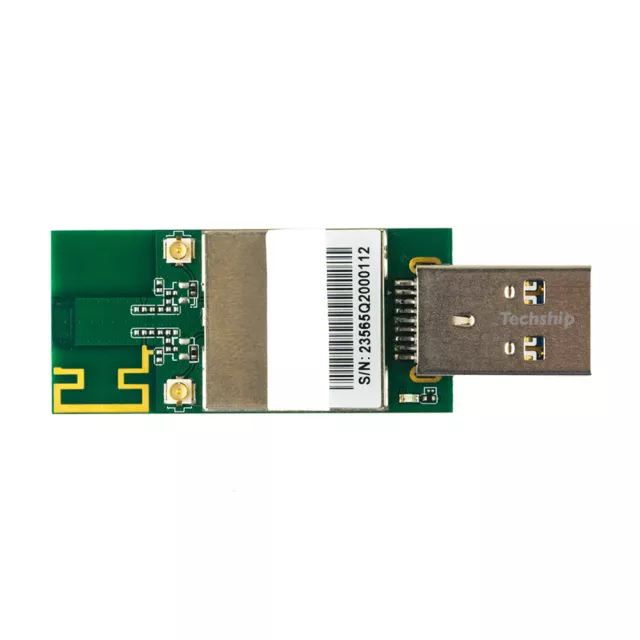

Sparklan WUBT-281AX [MU] .11ax USB Dongle

Article Number: 13198

|

Supplier Number: WUBT-281AX [MU]

Brand

SparkLAN

Form Factor

USB type A

Wi-Fi Frequency

2.4 GHz, 5 GHz

AP/Client Mode

Client mode

All Technical Details

Variant description

≥ 1

$37

Download Datasheet

Product Details & Tech Facts

Description

SparkLAN WUBT-281AX MU is a highly integrated single-chip Wireless LAN (WLAN) USB3.0 module which supports 2 streams 802.11ax solutions with multi-user MIMO (Multiple-Input, Multiple-Output) wireless LAN (WLAN). It is integrated 2Tx2R WLAN MAC, baseband, and dual band RF in a single chip USB3.0 module. WUBT-281AX provides a cost effective solution for M2M (machine to machine) connectivity product/device by one USB port.

WUBT-281AX 802.11ac/ax/b/g/n 2Tx2R USB WLAN module with various USB3.0 input format & internal printing or external RF antenna connector for high performance wireless LAN device. It is designed to provide completely M2M connection & excellent cost performance with low power consumption and enhance the advantages of robust system & applications.

Embedded Application Applications include portable handheld devices, thin client computer, medical devices, network security & monitoring, 3D printer, TV, STB, POS, digital signs, gaming machine, robotic machinery, industrial tablets, etc.

Key Feature:

  • 802.11ax/ac/b/g/n Wi-Fi

  • Support 802.11ax/ac 2x2, compliant with MU-MIMO. Operates in 2.4GHz and 5GHz frequency bands

  • Maximum data rates: 54Mbps in 802.11g, 300Mbps in 802.11n, 866.7Mbps in 802.11ac, 573.5Mbps in 802.11ax(2.4GHz), 1201MGbps in 802.11ax(5GHz).

  • Support Operation Systems (Android/Linux/Windows)

Form Factor

USB type A

Data Streams

2T2R MIMO

Wi-Fi Frequency

2.4 GHz GHz5 GHz GHz

Chipset

Realtek RTL8832BU

AP/Client Mode

Client mode

Antenna Connectors

IPEX MHF/U.FL

Data Interface

USB 3.0

Wi-Fi Standard

Wi-Fi 6 - 802.11a/b/g/n/ac/ax
