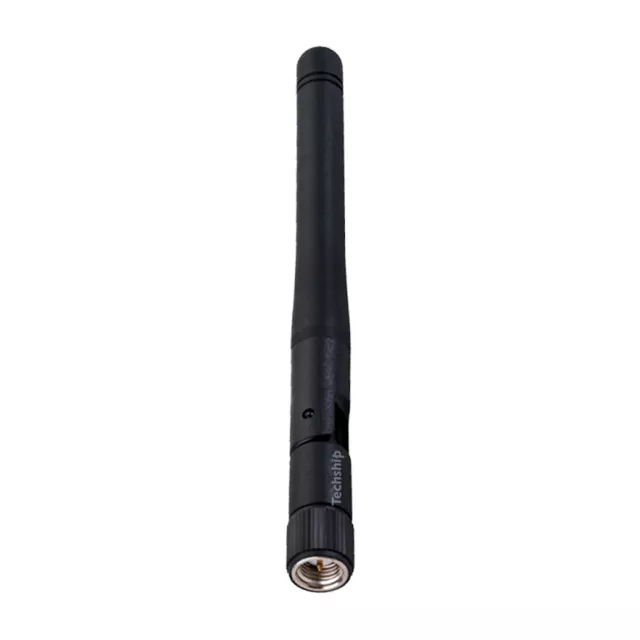

Taoglas GW.15.2113 2.4GHz Dipole Antenna, hinged SMA-M

Article Number: 13328

|

Supplier Number: GW.15.2113

Brand

Taoglas

Technology

WiFi 2.4GHz

Antenna Location

External

Mounting method

Connector

All Technical Details

Variant description

Contact sales@techship.com for more information

≥ 1

$4.40

Download Datasheet

Product Details & Tech Facts

Description

The GW.15 2.4 GHz dipole SMA plug mount antenna is ideal for 2.4 GHz wireless applications such as Bluetooth® and Wireless LAN. At only 108mm in length, an omnidirectional 6dBi gain across all bands ensures constant reception and transmission. The antenna structure is designed for robust handling and the housing is made with TPU giving superior environmental reliability and a quality finish. The antenna can be rotated 90 degrees on the base hinge for ease of placement.

Features:
·SMA Male Straight Connector
·Peak Gain 2dBi
·High Efficiency up to 85%
·Works well with or without ground plane
·Hinged Design for Straight or 90° Degree Mounting
·Robust TPU Housing
·Dimensions: 108.5 x 10mm
·RoHS & REACH Compliant

Technology

WiFi 2.4GHz

Width

10 mm

Antenna Location

External

Length

10 mm

Mounting method

Connector

Height

108.5 mm

Antenna Frequency

Wifi/Bluetooth 2400 MHz

Operating Temperature Range

-40 - 85 °C

Antenna Connector type

SMA-M

Certification

RoHS
