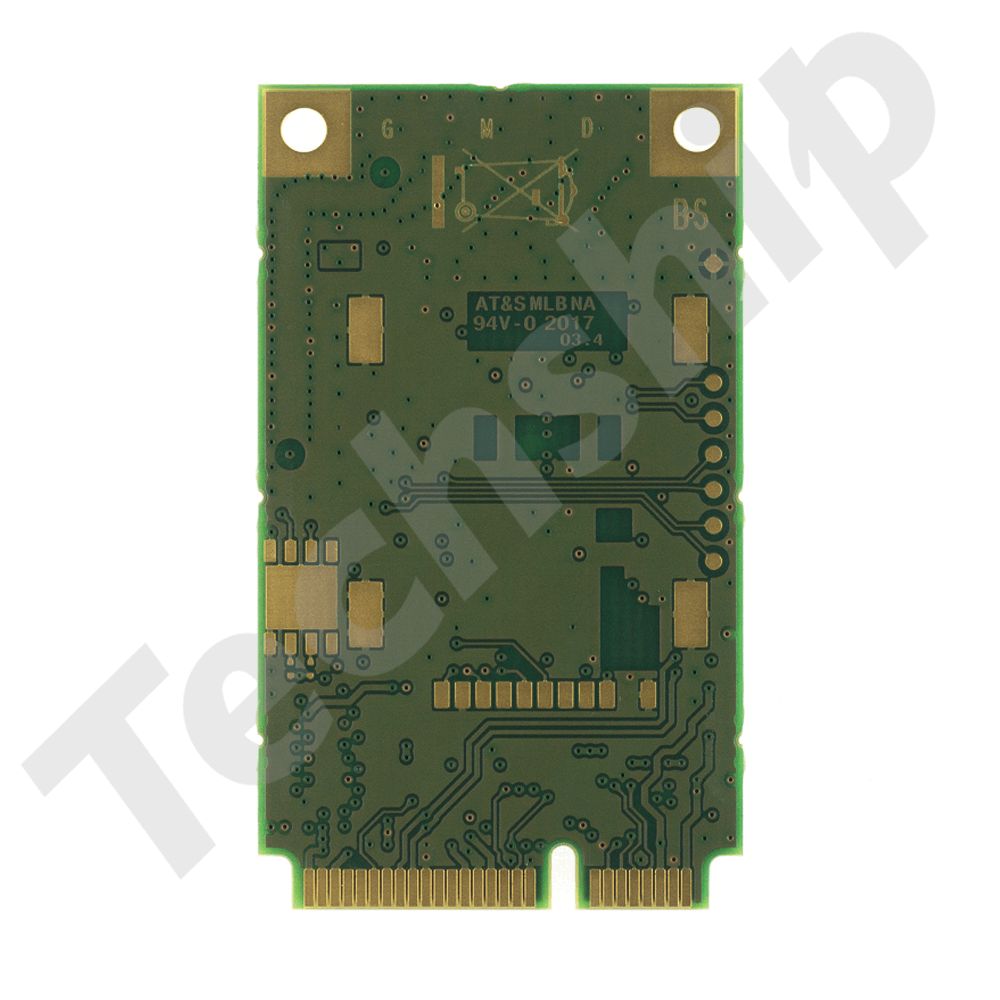

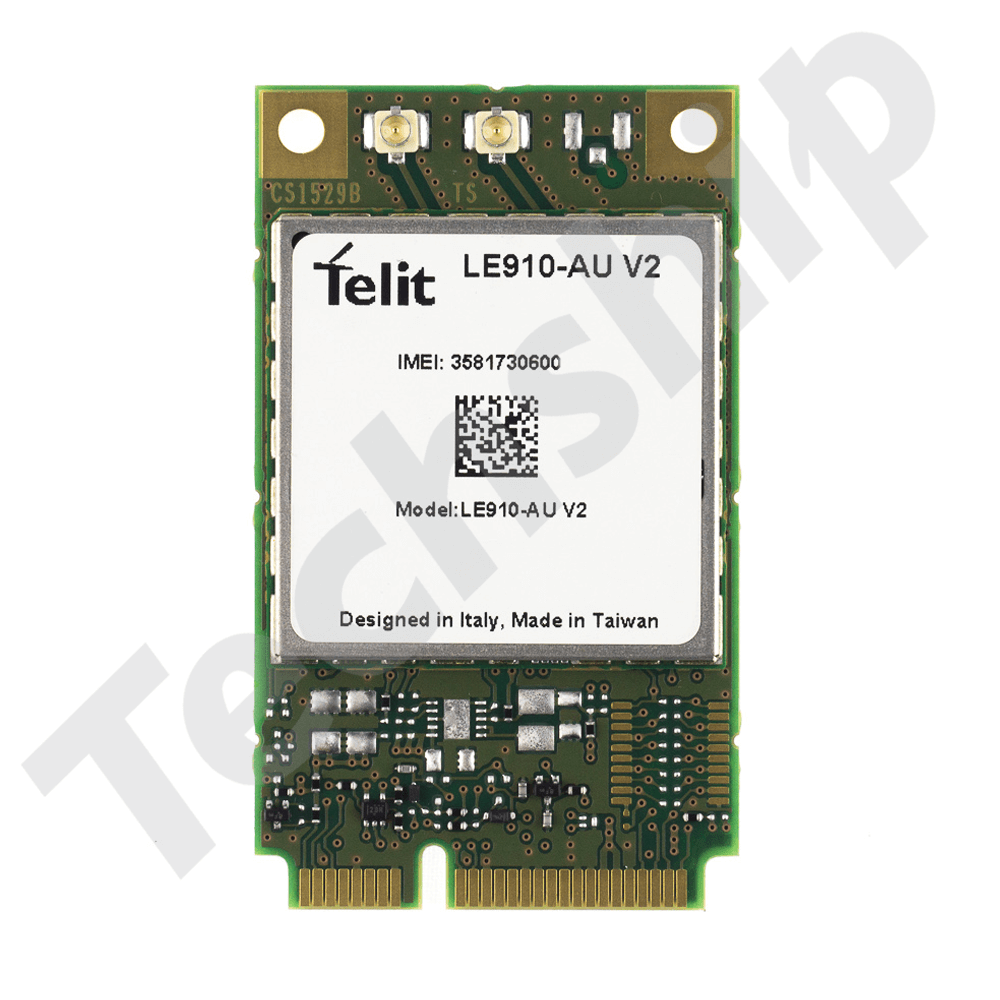

Telit LE910-AU V2 LTE CAT-4, Telstra, mPCIe
Article Number: 10642
|
Supplier Number: LEPCIAU2002T001
|
End of Life
Product Details & Tech Facts
Description
Telit LE910-AU V2 LTE CAT-4 is a miniPCIe data-card designed for devices with high data throughput but small form factor requirements. It's target region is Australia with network operator Telstra certification. It is compliant with 3GPP Release 9, fully certified and easy to integrate with peripherals using USB 2.0 HS.
The mini PCIe form factor has become a popular standard adopted by connected device manufacturers to easily integrate wireless connectivity into devices for commercial and industrial markets, in mobile computing, kiosks and electronics in general.
Key Benefits:
Standard Mini PCIe Data-card form factor.
Increased connectivity performance with MIMO 2x2.
Ideal for m2m applications and devices with compact design and extended operating temperature range requirements.
Internet friendly with integrated TCP/IP and UDP/IP stacks.
LTE technology interchangeable with HSPA+ or EV-DO counterpart Telit miniPCIe modules.
Rx diversity allows end-device to be equipped with two cellular antennas improving the quality and reliability of the wireless connectivity.
Over-the-Air firmware update.
Battery-friendly 1.8V GPIO.
Form Factor
Max DL Speed
150 Mbps
Carrier Certification
Audio interface
Primary Technology
Max UL Speed
50 Mbps
Operating Temperature Range
-40 - 85 °C
SIM interface
LTE Bands
Antenna Connectors
Chipset
Driver Support
Region
GNSS
No
Extended Operating Temperature Range
-40 - 85 °C
UMTS Bands
GSM/EDGE Bands
Certification
Data Interface
Size
