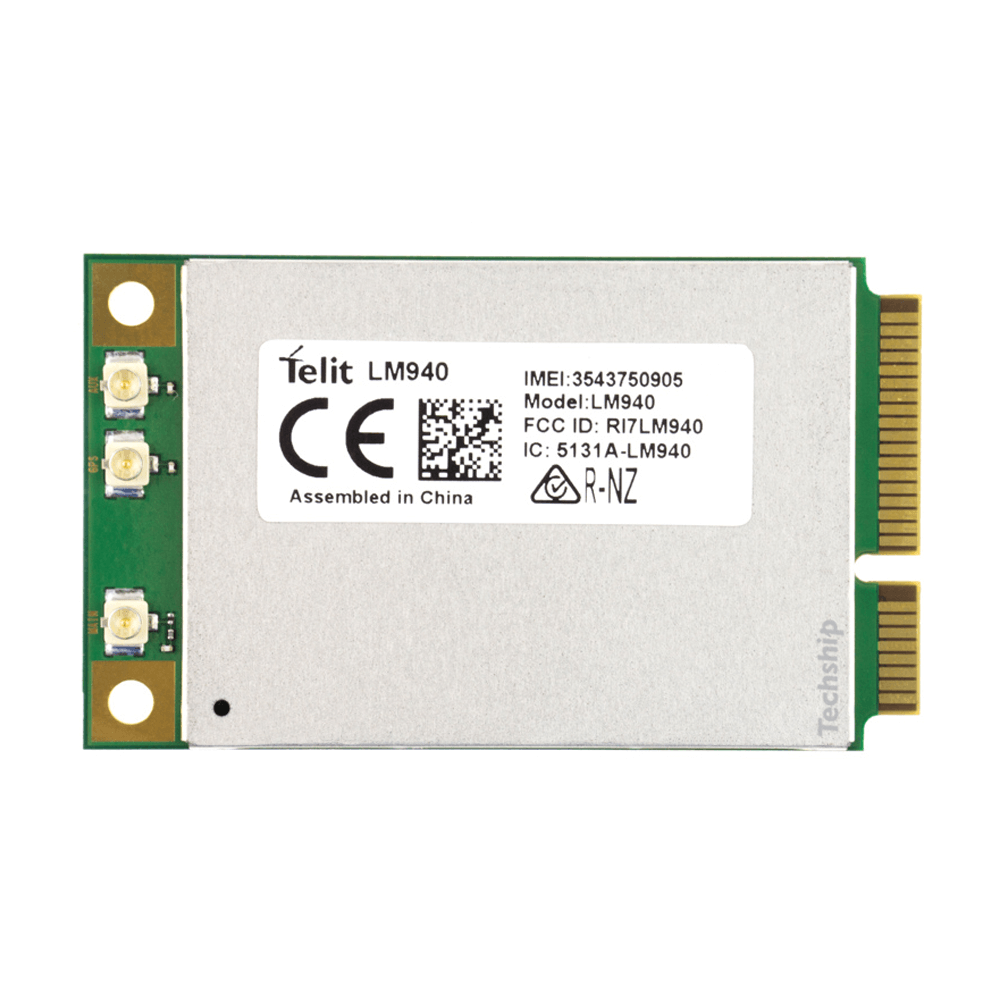

Telit LM940A11, HW Rev. 2, LTE CAT-11, GPS, mPCIe

Article Number: 12147

|

Supplier Number: LM940ABW414T0W4000

|

End of Life

Brand

Telit Cinterion

Form Factor

mPCIe - full size

Primary Technology

LTE - cat 11

LTE Bands

B1 (FDD 2100), B2 (FDD 1900), B3 (FDD 1800), B4 (FDD 1700 / AWS), B5 (FDD 850), B7 (FDD 2600), B8 (FDD 900), B12 (FDD 700ac), B13 (FDD 700c), B17 (FDD 700bc), B20 (FDD 800DD), B25 (FDD 1900), B26 (FDD 850), B28 (FDD 700), B29 (SDL 700), B30 (FDD 2300), B38 (TDD 2600), B40 (TDD 2300), B41 (TDD 2500), B66 (FDD 1700 / AWS-3)

All Technical Details

Variant description

FW: 24.01.5X4

Factory loaded firmware images and configs:
- Generic 24.01.514
- Verizon 24.01.524
- ATT 24.01.544
- Sprint 24.01.532

Refer to Telit LM940 AT commands guide and command AT#FIRMWARE for details on how to select active firmware image and config.

Download Datasheet

Product Details & Tech Facts

Description

The Telit LM940A11 miniPCIe form factor data-card delivers high speed data rates over 4G LTE Advanced technology with fallback to 3G HSPA+. It can offer a cellular connection for data throughput demanding end-products and applications such as remote routers and gateways, broadcasting solutions etc.



Telit LM940A11 module can support down link data throughput of up to 600 Mbps by taking advantage of LTE Carrier Aggregation, 2x2 MIMO antenna technology and 256 QAM signal modulation.



Since the LM940A11 miniPCie data card supports a wide range of various RF frequency bands and band combinations deployed worldwide it is great match for end-products needing data connectivity on a global target region with a single set of hardware configuration.



Key Benefits:

  • MiniPCIe data card form factor for eased integration and flexibility.
  • Takes advantage of LTE Advanced technology and meeting the requirements for LTE UE Category 11.
  • Throughput of up to 600 Mbps in downlink and 75 Mbps in uplink.
  • Full GNSS support - GPS, GLONASS, Galileo, Beidou.
  • Increased connectivity performance with Carrier Aggregation 3CA, 2x2MIMO and 256 QAM.



    Telit LM940A11 Hardware Revisions:

    In hardware revision 2 a set of signals have changed pin location in the miniPCIe socket in order to match the design of the Telit LM960 module. Please refer to the Telit LM940 Hardware Guide for complete details about the pin location differences in miniPCIe socket between hardware revision 1 and 2.



    Telit LM940A11 hardware revision 1 can be found here, 10637, Telit LM940A11, HW Rev. 1.

Form Factor

mPCIe - full size

UMTS Bands

B1 (2100) B2 (1900) B4 (AWS) B5 (850) B8 (900)

Certification

CE RED CE FCC IC PTCRB GCF RoHS REACH

Chipset

Qualcomm MDM9240

Driver Support

Windows 10 Linux Windows Android Windows 8.1 Windows 8 Windows 7 Windows Vista Windows CE

Primary Technology

LTE - cat 11

Max DL Speed

600 Mbps

GNSS technology

GPS GLONASS Galileo BeiDou

Carrier Certification

AT&T T-Mobile Verizon Sprint Telstra

Voice Call Support

No

LTE Bands

B1 (FDD 2100) B2 (FDD 1900) B3 (FDD 1800) B4 (FDD 1700 / AWS) B5 (FDD 850) B7 (FDD 2600) B8 (FDD 900) B12 (FDD 700ac) B13 (FDD 700c) B17 (FDD 700bc) B20 (FDD 800DD) B25 (FDD 1900) B26 (FDD 850) B28 (FDD 700) B29 (SDL 700) B30 (FDD 2300) B38 (TDD 2600) B40 (TDD 2300) B41 (TDD 2500) B66 (FDD 1700 / AWS-3)

Data Interface

USB 3.0 USB 2.0 I2C

SIM interface

Through miniPCIe connector Dual SIM interface

Region

Global *

Max UL Speed

75 Mbps

GNSS antenna support

Passive Active 3.3VDC Active Active 3.05VDC

Extended Operating Temperature Range

-40 - 85 °C

Size

51 x 30 x 2.7mm

Fallback

3G

GNSS

Yes

Antenna Connectors

IPEX MHF/U.FL

Operating Temperature Range

-40 - 85 °C

Audio interface

Digital PCM signal input/output in socket
