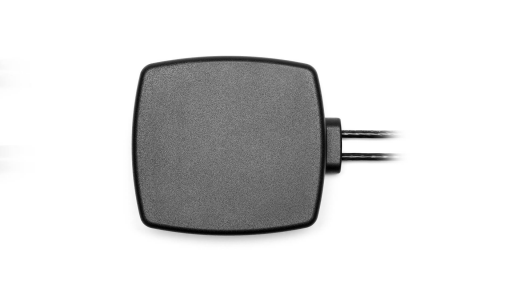

5G Sub6/LTE + GNSS (passive) antenna, magnetic/adhesive 3M, SMA

Article Number: 11684
Brand: 2J Antennas
Supplier number: 2J6984MPGP-300D302-C899GRST_300LL100-C20GBST_TECHS

This 2-in1 antenna 2J6984MPGp is from 2J's “Phoenix” series and offers 1x 5GNR and 1x GNSS.
This is a cost-effective solution for industrial, commercial, and residential applications that rely on high performance, reliability, high data throughput and precision.

Cable 1 is designed for 5GNR and cater to voice and data applications that operate within 5G NR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G and 2G standards.

Cable 2 is dedicated for navigation applications that service GPS, QZSS, Galileo and GLONASS global standards.

Note! The GNSS antenna is passive which makes it compatible for use with cellular modules that is not supporting active GNSS antennas.

With a convenient peel-n-stick adhesive magnetic mount, this antenna can be simply installed to any metal surface (vehicle or metal building) without the need for additional grounding. The adhesive and magnetic mount is strong enough for long-term installations but also offers an easy option for temporary applications and relocation. We recommend installing this antenna with a clear line of sight and directed to the signal for the most reliable connectivity.

The low-profile box-shaped housing measures 89 x 76 x 27/30 mm and is manufactured with industrial-grade IP67/IP69 rated ABS UV stable material. This material is the top choice for antenna applications due to its high resistance to water, dust, sand and with high durability in extreme environmental conditions.

The 2J6984MPGp comes with high-quality standard SMA-Male connectors and a 300cm long cables.

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

Do you need offline data on this product?

Download datasheet

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
Technology / Antenna Frequency
LTE 698-960/1710-2170/2500-2700 MHz
617-960/1427-2690/3300-5000/5150-5925 MHz
GLONASS 1598-1610
GPS 1575.42
Antenna Location
Outdoor
Internal
Mounting method
Adhesive
Magnetic
Connector Type
SMA-M
Impedance
50 Ohm
Cable length
300 cm
Cable Specification
DACAR 302
LL100
Polarization
Linear
RHCP (GPS)
Radiation pattern
Omnidirectional
Max power
35 W
IP Class
IP67
IP69
Operating Temperature Range
-40 °C – 85 °C
Active/Passive GPS
Passive
