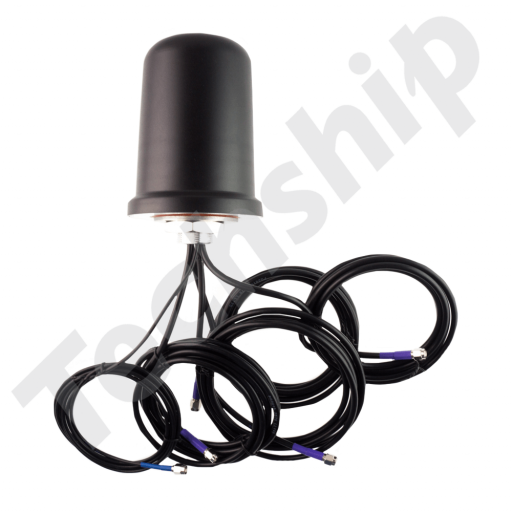

5G/Sub6 LTE MIMO +GNSS 5in1 antenna, 2M, SMA-M

Article Number: 11081
Supplier number: 2J7184BGFC-200LL195-

This antenna includes 4 antenna elements for cellular communication. The wide frequency range covers the 5G NR bands as well as all current LTE bands.
This is a heavy duty scew mounted antenna with anti-rotation mounting to prevent theft.
It also includes a GNSS antenna with pre-filter.
The antenna is ground plane independent.

As a 5in1 wide band antenna it would be a good match with Telit LM960 and other similar high speed modules.

This antenna comes with 2 meter LL195 cables for the cellular elements and 2 meter LL100 cable for GNSS. SMA-Male connectors on all 5 cables. Other cable lengths and connectors are available on request.

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Sample Price

No prices available

For more information
please contact us at
sales_email

For larger quantities and complete pricing, please sign in or register

Do you need offline data on this product?

Download datasheet

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
Manufacturer
2J
Technology / Antenna Frequency
GPS 1575.42
GLONASS
617-960/1427-2690/3300-5000/5150-5925 MHz
Mounting method
Screw
Antenna Location
Outdoor
External
Connector Type
SMA-M
Impedance
50 Ohm
Cable length
200 cm
Cable Specification
LL195
LL100
Polarization
Linear
RHCP (GPS)
Radiation pattern
Omnidirectional
Max power
35 W
IP Class
IP67
IP69
IK09
Operating Temperature Range
-40 °C – 85 °C
Height
130 mm
Diameter
96 mm

Datasheet for 2J7184BGFc 5in1 antenna

Download

Uploaded at
2020-01-28 14:02:11
Last updated
2020-01-28 14:02:11
