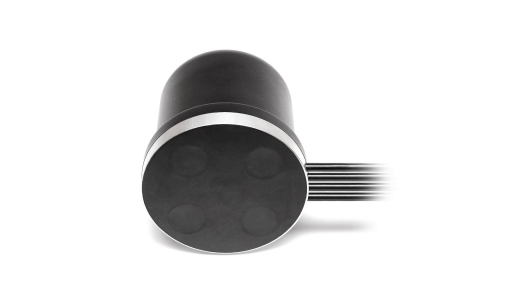

5GNR MIMO, 4in1 antenna, 3M, magnetic mount

Article Number: 11793
Brand: 2J Antennas
Supplier number: SI313100107

The Next-Gen Most Robust 4-in-1 5GNR MIMO Solution for Worldwide Connectivity

The 4-in-1 combination ultra wideband magnetic mount antenna combines 4 x 5GNR MIMO, is fully backwards compatible and delivers faster and more responsive mobile broadband experiences. This omni-directional antenna enhances mobile broadband (eMBB) with high performance and ultra-reliable low-latency communication (URLLC) with 360-degree clear signal strength and maximizes throughput making it ideal for next-generation MIMO devices, base station technology, and carrier aggregation (CA). This antenna is designed to improve signal strength allowing uninterrupted connectivity, better signal quality, and reliability while providing increased data throughput. These features make it an ideal candidate for the next generation of mobile services which involve high safety applications such as critical communications, police, ambulance, fire services, and other crucial connectivity.

This high performance and compact solution offers up to 5.1 dBi 5GNR peak gain while maintaining an efficiency of up to 45.9 % across all bands. This antenna delivers powerful worldwide connectivity by allowing devices to remain connected while moving through different coverage areas.

Cables 1-4: 5GNR MIMO

Cables 1-4 are designed for 5GNR devices that operate within all  5GNR, 4G LTE, FirstNet, CBRS, LPWA, low-power wide-area (LPWA), CAT-X, CAT-Mx, CAT-NBx, Narrow Band-IoT, 3G and 2G standards (617 – 5925 MHz). All cables are designed with an omni-directional radiation pattern and linear polarization for maximum signal strength and throughput.

Installation / Environmental

The easy-to-install heavy-duty antenna offers durability and efficiency. The magnetic mount feature facilitates quick on-and-off installations on any metal surfaces such as vehicles, metal buildings and steel towers. This ground plane independent antenna measures only 96 x 102 mm. The cables are low loss LL195 cables that measure 300 cm in length and are fed through SMA-Male connectors for a secure connection. These cables are highly preferred for high-frequency applications up to 6 GHz.

The fully IP67 and IP69 rated antenna is manufactured with ASA UV stable material that provides protection against water and moisture while maintaining optimal operation in outdoor applications. This antenna is manufactured with both REACH and RoHS compliance along with IK09 ratings for enhanced anti-vandal security.

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

Do you need offline data on this product?

Download datasheet

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
Technology / Antenna Frequency
617-960/1427-2690/3300-5000/5150-5925 MHz
Antenna Location
Outdoor
External
Mounting method
Magnetic
Connector Type
SMA-M
Impedance
50 Ohm
Cable length
300 cm
Cable Specification
LL195
Polarization
Linear
Radiation pattern
Omnidirectional
Max power
25 W
IP Class
IP69
IP67
IK09
Operating Temperature Range
-40 °C – 85 °C
Height
102 mm
Diameter
96 mm

Datasheet for #11793 2j7083mc

Download

Uploaded at
2023-01-26 10:07:33
Last updated
2023-01-26 10:07:33
