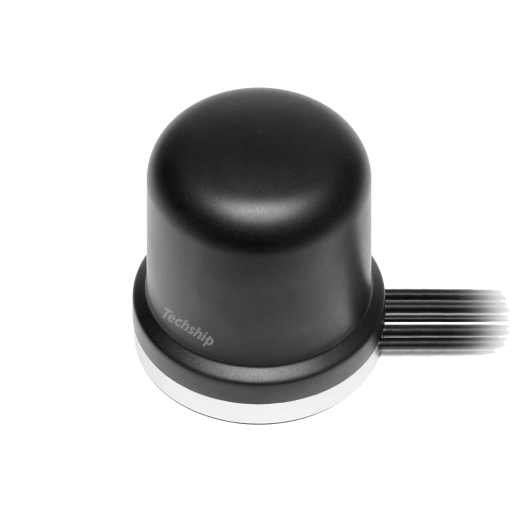

5GNR MIMO/Wi-Fi 6E MIMO +GNSS 5in1 antenna "Medusa", 3M, Magnetic

Article Number: 11569
Brand: 2J Antennas
Supplier number: 2J7086MGFA-300LL195-C91NRST_C91NRST_C151NYST_C151N

The Heavy Duty 5-in-1 Solution That Delivers Powerful Technology And High Performance While On The Move

This is an ultra-wideband external 5-in-1 antenna combining 5 ideal technologies into one antenna. The antenna offers 5 high-performance antennas that support 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G, 2G, WiFi, WiFi-6E, BT, ZigBee, ISM, GPS, QZSS, Galileo and GLONASS standards making it the most reliable and versatile antenna on the market.

This next-generation antenna integrates durability, high performance, efficiency, and ultra-reliable low-latency communication (URLLC) into a low-cost solution for medical emergency, construction, agriculture, and transportation industries.  This antenna offers good efficiency and isolation which increases signal throughout. This antenna is ideal for applications that require real-time streaming and high-speed video uplink and downlink speed.

Cable 1 and 2: 5GNR MIMO

Cables 1 and 2 are designed for 5GNR devices that operate within 5G/4GLTE/3G/2G frequencies (617 – 5925 MHz) and are fully 4G LTE backwards compatible with existing networks. The 5GNR technology introduces millimeter-wave (mmWave) frequency for new generation LTE bands and is the ideal solution for MIMO technology. It has an omni-directional radiation pattern giving it a 360-degree uninterrupted signal quality with a maximum efficiency of up to ~58.8% and 5GNR peak gains of ~5.3 dBi.

Cables 3 and 4: WiFi 6E 2.4/5.0/6 GHz MIMO ISM

Cables 3 and 4 are dedicated to wireless-enabled device solutions operating within WiFi, ZigBee, and ISM standards. Both cables are designed with an omni-directional radiation pattern for maximum radiation efficiencies delivering unmatched performance making it the ideal solution for high-capacity network communications and HD video streaming. It offers a maximum efficiency of  up to ~49% and 5.0 dBi WiFi Peak Gain.

Cables 5: GPS/GLONASS

Cable 5 is designed for precision navigational applications that operate within GPS, QZSS, Galileo and GLONASS standards. Designed with a hemispherical radiation pattern and linear polarization this antenna provides improved throughput. This active GNSS antenna offers an active gain of 28 dB @ 2.7V The SAW pre-filter blocks inadequate frequencies with an out of band rejection of ~43 dB across the 1575 – 1606 MHz bands.

Installation / Environmental

This is a low-profile heavy-duty, external antenna. It is protected with a robust and heavy-duty housing made with (ASA) UV stable material, known for its thermal resistant properties, and an aluminum alloy base. This antenna is impact resistant, dust resistant, and waterproof with full IP67, IP69, and IK09 certification making it ideal for external applications in harsh environmental conditions. Ground plane independence and magnetic mount installation offer easy installations on a wide range of surfaces.

Cable 1-2 (Cellular): 300cm long LL195 cables and standard SMA-Male connectors.

Cable 3-4 (Wi-Fi) :300cm long LL195 cables and RPSMA-Male connectors.

Cable 5 (GNSS) :300cm long LL100 cable and a standard SMA-Male connector.

All cables and connectors can be customized.

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

Do you need offline data on this product?

Download datasheet

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
Technology / Antenna Frequency
Wifi 6000
617-960/1427-2690/3300-5000/5150-5925 MHz
GLONASS 1598-1610
GPS 1575.42
Wifi 5000
Wifi/Bluetooth 2400
Antenna Location
Outdoor
External
Mounting method
Magnetic
Connector Type
SMA-M
RPSMA-M
Impedance
50 Ohm
Cable length
300 cm
Cable Specification
LL195
LL100
Polarization
Linear
RHCP (GPS)
Radiation pattern
Omnidirectional
IP Class
IP67
IP69
Operating Temperature Range
-40 °C – 85 °C
Height
102 mm
Diameter
96 mm

Datasheet for 11569 2J7086MGFa 5in1 antenna
