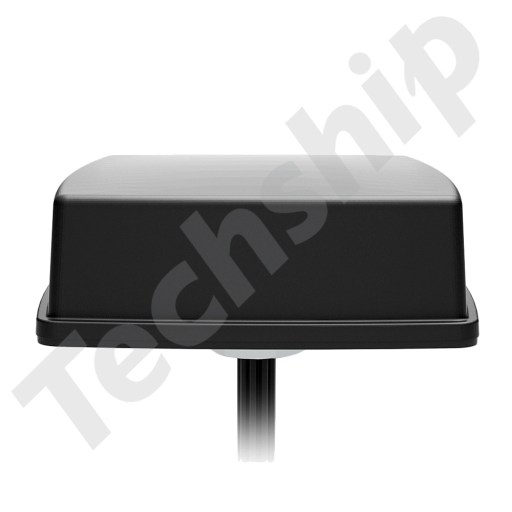

5GNR MIMO/Wi-Fi 6E MIMO +GNSS 9in1 antenna, 30 cm, Screw mount

Article Number: 11564
Brand: 2J
Supplier number: 2J6B86BGFF-030D302-C899GRST_C899GRST_C899GRST_C899

9-in-1 Combination of Performance, Durability and Reliability Designed for Critical Communications

This patent pending lightweight 9-in-1 screw mount antenna is designed for accelerated 5GNR, WiFi-6E 2.4/5.0/6.0 and GNSS bands that operate within 617 MHz – 7125 MHz frequencies. This high-performance and high efficiency antenna offers superior connectivity, accuracy, and reliability for ultra-wide band MIMO, wireless, and navigation, allowing devices to remain online while moving through different coverage areas. Designed for MU-MIMO (multi-users) and mobile terminal applications with excellent ECC (Envelope Correlation Coefficient) and no performance null, this antenna is the #1 choice for the next generation of mobile services where performance and reliability are critical such as law enforcement, medical and public transportation, automotive, and industrial automation. This antenna is available in various combinations to meet different application needs.

4 X Cellular 5GNR/4G LTE/3G/2G MIMO

Cable 1-4 are designed for cellular and mobile devices that operate within 5GNR, FirstNet, CBRS, 4G LTE, CAT-X, CAT-MX, CAT-NBX, 3G and 2G standards. With accelerated 5GNR technology and edge computing workloads, this antenna outperforms its competition.  Tuned with high gain and with high efficiency within 617 – 5925 MHz frequency bands while maintaining full range 360-degree signal strength and quality with no performance nulls.

4 X WiFi-6E 2.4/5.0/6.0 GHz ISM MIMO

Cable 5-8 are designed for devices that operate within Wifi, BT, ZigBee, ISM, SigFox and LoRa standards. The 2.4/5.0/6.0 GHz bands and WiFi6E technology combine long-range, short-range, and very large capacity without competing with traffic from other devices or networks. This results in high bandwidth channels, improved security, less interference, and reduces network congestion making it ideal for applications that demand faster WiFi, real-time connectivity and consistent network availability.

GNSS GPS/GLONASS/Galileo/QZSS

Cable 9 is designed for precision navigational applications that operate within GPS, GLONASS, Galileo and QZSS standards. The signal radiates on all planes and maximizes connectivity by avoiding conflict with propagating signals common with penetrating obstructions and dead spots in urban areas. This connection can maintain an active gain of 28 dB @ 2.7 V with an out of bound rejection of ~43 dBc. Designed with electrostatic discharge (ESD) protection for up to 2KV and a SAW pre-filter blocking inadequate frequencies (within 1561-1602 MHz) from passing from the antenna to the receiver.

Installation / Environmental

This ground plane independent antenna can be easily installed with the screw mounting that ensures reliable and permanent installations on vehicles or any structures. .We also offer 9-in-1 antennas with adhesive and magnetic mount options, please see product 5GNR MIMO/Wi-Fi 6E MIMO +GNSS 9in1 antenna, 3M, Adhesive and 5GNR MIMO/Wi-Fi 6E MIMO +GNSS 9in1 antenna, 3M, Magnetic for more details. The low profile housing measures only 50 mm in height and is manufactured with IP67/IP69 rated ASA UV stable material offering durability with the highest level of protection against water and moisture exposure.

The connectors are standard SMA-Male (5GNR & GNSS) & RPSMA-Male (WiFi-6E ISM) and come with 30cm long low loss D302 (5GNR/WiFi-6E ISM)/ LL100 (GNSS) cables, but can be customized as needed. All the cables feed from one side of the antenna housing and are tuned for optimal performance. We offer a wide range of alternative connectors and cables to meet any customization needs.

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

Do you need offline data on this product?

Download datasheet

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
Technology / Antenna Frequency
617-960/1427-2690/3300-5000/5150-5925 MHz
Wifi 6000
GLONASS 1598-1610
GPS 1575.42
Wifi 5000
Wifi/Bluetooth 2400
Antenna Location
Outdoor
External
Mounting method
Screw
Connector Type
SMA-M
RPSMA-M
Impedance
50 Ohm
Cable length
30 cm
Cable Specification
DACAR 302
LL100
Polarization
Linear
RHCP (GPS)
Radiation pattern
Omnidirectional
Max power
25 W
IP Class
IP69
IP67
Operating Temperature Range
-40 °C – 85 °C
Width
199 mm
Length
167 mm
Height
54 mm
Active/Passive GPS
Active

Datasheet for 11564 2J6B86BGFf 9in1 antenna.

Note! The datasheet is for 2J6B86BCFf. The antenna we sell,, 2J6B86BGFf don't support Beidou. All other data in the datasheet is the same.

Download

Uploaded at
2022-02-04 11:59:32
Last updated
2022-02-04 12:01:12
