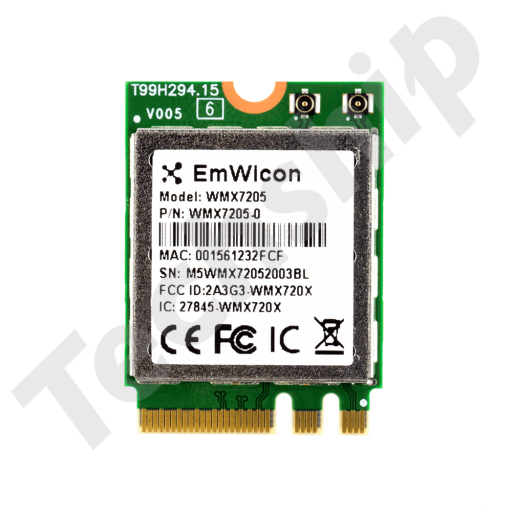

EmWicon WMX7205-0 .11ax M.2

Article Number: 11479
Brand: Emwicon
Supplier number: C-10-WMX7205-0

The WMX7205-0 is a Tri Band Dual Continous (TBDC) M.2 module based on Qualcomm WCN6856 and features 802.11ax Wi-Fi 6 and Bluetooth (BT)
It supports simultaneous operation on 2,4GHz/5GHz or 2,4GHz/6GHz.

Key benefits
• 2x2 Multi-User MIMO (MU-MIMO)
• Up to 3,6Gbps data rate
• Dynamic Frequency Selection (DFS, radar detection)
• Bluetooth V5.2 and backwards compatible
• PCIe Gen 3

Also available in half size mPCIe form factor;
11351 - Emwicon WMX7203 Half mPCIe

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
AP/Client Mode
Client mode
Soft AP mode (limited number of clients)
Wifi Standard
802.11a/b/g/n/ac/ax
Wifi Frequency
2.4 GHz
5 GHz
6 Ghz
Bluetooth Standard
Bluetooth 2.1 +EDR
Bluetooth 4.0
Bluetooth 4.1
Bluetooth 4.2
Bluetooth 5.0
Bluetooth 5.1
Bluetooth 5.2
Form Factor
M.2
M.2 2230
Data Interface
Wifi: PCIe / BT:USB
Data Streams
2T2R MIMO
Chipset
WCN6856-5
Qualcomm
Certification
UKCA
CE RED
FCC
IC
Operating Temperature Range
-30 °C – 85 °C
Antenna Connectors
IPEX MHF-4
Length
30 mm
Width
22 mm

Datasheet for EmWicon WMX7205

Download

Uploaded at
2023-03-16 16:24:02
Last updated
2023-03-16 16:24:02
Version
1.0.11
Related products
EmWicon WMX7205-0 .11ax M.2

UKCA Declaration of Conformity for Emwicon WMX7205

Download

Uploaded at
2022-07-13 08:59:54
Last updated
2022-07-13 08:59:54
Version
20220712
Related products
EmWicon WMX7205-0 .11ax M.2

IC Certification for EmWicon WMX7205

Download

Uploaded at
2023-03-16 16:46:20
Last updated
2023-03-16 16:46:20
Related products
EmWicon WMX7205-0 .11ax M.2

FCC for EmWicon WMX7205

Download

Uploaded at
2023-03-16 16:36:20
Last updated
2023-03-16 16:36:20
Related products
EmWicon WMX7205-0 .11ax M.2

CE Certificiation for EmWicon WMX7205

Download

Uploaded at
2023-03-16 16:32:44
Last updated
2023-03-16 16:34:50
Related products
EmWicon WMX7205-0 .11ax M.2

PCN 20220627 WMX7203 & WMX7205 ordering code and IC

Download

Uploaded at
2022-06-27 16:10:15
Last updated
2022-06-27 16:10:49
Version
20220627
Related products
Emwicon WMX7203-0 Half mPCIe
Emwicon WMX7203-F .11ax mPCIe
EmWicon WMX7205-0 .11ax M.2
