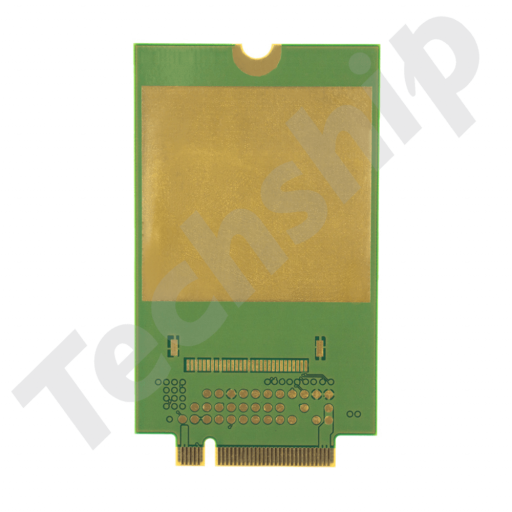

Fibocom FM350-GL 5G M.2 sub-6

Article Number: 11421
Brand: Fibocom
Supplier number: FM350-GL-10-00

Fibocom's global 5G module FM350-GL is based on Mediatek T700 chipset and supports both 5G SA and NSA network architectures with faster transmission speed, better carrying capacity and lower network latency.

FM350-GL supports 5G NR Sub-6 bands with fallback to LTE and WCDMA standards, eliminating customers' investment concerns in the initial stage of 5G construction and responding to the commercial demand of rapid landing.
It provides perfect high-speed experience for customers in the fields of gateways, industrial monitoring, remote medical treatment, UAV, virtual reality (VR / AR) and more.

NOTE

This product is NRND (Not Recommended for New Design)

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
Region
Europe
North America
Australia
South America
Japan
APAC
Technology
5G
Form Factor
M.2 3052
5G Sub6 Bands
n1 (FDD 2100)
n2 (FDD 1900)
n3 (FDD 1800)
n5 (FDD 850)
n7 (FDD 2600)
n8 (FDD 900)
n20 (FDD 800)
n25 (FDD 1900)
n28 (FDD 700)
n30 (FDD 2300)
n38 (TDD 2600)
n40 (TDD 2300)
n41 (TDD 2500)
n48 (TDD 3600)
n66 (FDD 1700 / AWS-3)
n71 (FDD 600)
n77 (TDD 3700)
n78 (TDD 3500)
n79 (TDD 4500)
LTE Bands
B1 (FDD 2100)
B2 (FDD 1900)
B3 (FDD 1800)
B4 (FDD 1700 / AWS)
B5 (FDD 850)
B7 (FDD 2600)
B8 (FDD 900)
B12 (FDD 700ac)
B13 (FDD 700c)
B14 (FDD 700PS)
B17 (FDD 700bc)
B18 (FDD 800)
B19 (FDD 800)
B20 (FDD 800DD)
B25 (FDD 1900)
B26 (FDD 850)
B28 (FDD 700)
B29 (SDL 700)
B30 (FDD 2300)
B32 (SDL 1500)
B34 (TDD 2000)
B38 (TDD 2600)
B39 (TDD 1900)
B40 (TDD 2300)
B41 (TDD 2500)
B42 (TDD 3500)
B43 (TDD 3600)
B46 (TDD 5200)
B48 (TDD 3600)
B66 (FDD 1700 / AWS-3)
B71 (FDD 600)
UMTS Bands
B1 (2100)
B2 (1900)
B8 (900)
B4 (AWS)
B5 (850)
Max DL Speed
4670 Mbps
Max UL Speed
1250 Mbps
GNSS
Yes
GNSS technology
QZSS
GPS
GLONASS
Galileo
BeiDou
Antenna Connectors
IPEX MHF-4
Certification
Telec
SRRC
RCM
PTCRB
NCC
Jate
IC
GCF
FCC
CTA
CE RED
CE
CCC
Carrier Certification
Vodafone
Verizon
TMO
Telstra
Telefonica
T-Mobile
Swisscom
Softbank
Optus
NTT DOCOMO
KDDI
Deutsche Telekom
AT&T
Operating Temperature Range
-10 °C – 55 °C
Chipset
T700
MediaTek
Data Interface
PCIe
Driver Support
Windows
Linux
SIM interface
Through M.2 connector
Dual SIM interface
Datasheet for Fibocom FM350-GL 5G sub-6 module

Download

Uploaded at
2021-07-09 15:05:41
Last updated
2021-12-07 14:04:37
Version
V 1.0
Requirements

Related products
Fibocom FM350-GL 5G M.2 sub-6
Fibocom FM350-GL Hardware Guide.

Download

Uploaded at
2021-12-07 14:03:55
Last updated
2021-12-07 14:03:55
Version
V1.0.8
Requirements

Related products
Fibocom FM350-GL 5G M.2 sub-6
Fibocom FM350-GL Hardware Guide for Lenovo.

Download

Uploaded at
2021-12-07 14:01:32
Last updated
2021-12-07 14:01:33
Version
V1.01
Requirements

Related products
Fibocom FM350-GL 5G M.2 sub-6
AT commands guide for the Fibocom FM350 series 5G cellular module.

Download

Uploaded at
2021-12-07 10:33:07
Last updated
2021-12-07 10:33:07
Version
V2.2
Requirements

Related products
Fibocom FM350-GL 5G M.2 sub-6
Installation guide for Fibocom FM350 USB driver.

Download

Uploaded at
2021-12-07 13:52:57
Last updated
2021-12-07 13:52:57
Version
V1.02
Requirements

Related products
Fibocom FM350-GL 5G M.2 sub-6
Question

How to collect initial diagnostics data and logs for Fibocom cellular modules needed when requesting Techship technical support?

Solution

In order to ease the troubleshooting of technical problems and understand your end-product or application and its usage scenario we ask you to please provide the following information when creating a technical support ticket at: techship.com/technical_support/

Please give a detailed problem description and in what precise circumstances it is present.

Describe the host system:
-Hardware (system board, processor architecture, other peripheral devices...)
-Operating system with detailed versions (E.g. Windows version and build, Linux distribution, kernel version)
-Drivers used and versions (Linux: out-of-tree vendor drivers or in-kernel drivers?)

Details from the cellular module label:
-Model
-SKU/BOM or P/N code
IMEI number

For Linux systems, capture terminal logs from commands:
uname -a
lsusb
lsusb -t
ifconfig -a
ls -l /dev/serial/by-id
ls -l /sys/bus/usb-serial/devices
dmesg

The cellular module logs can be acquired by accessing one of the USB enumerated serial (COM) interfaces or physical UART serial interfaces accepting AT commands. In Windows device manager they are generally found as modem infterface or serial and ports interface types).

Send AT commands to module and capture the text output:
Test that you get a OK reply:
AT
Enable AT command echo:
ATE1
Verbose error reporting:
AT+CMEE=2
Module model:
AT+CGMM
Firmware version:
AT+CGMR
IMEI Code:
AT+CGSN
USB endpoint configuration:
AT+GTUSBMODE?
Serial port configuration:
AT+GTUSBMODE=?
Operational mode:
AT+CFUN?
Selected network access techniques:
AT+WS46?
List network operator info:
AT+COPS?
Network registration status:
AT+CREG?
AT+CGREG?
AT+CEREG?
Signal strength:
AT+CSQ
Signal quality parameters:
AT+CESQ
List APN details:
AT+CGDCONT?
List Packet switch enable/disable status:
AT+CGATT?
List PDP profiles status:
AT+CGACT?
List bearers and IP addresses:
AT+CGCONTRDP=
AT+CGPADDR=
Check Temperaure:
AT+MTSM?
Check SIM status:
AT+GTUSIM?
Selected radio access technology:
AT+GTRAT?
Selected RAT and active frequency band(s):
AT+GTACT

For modems supporting 5G
List CA information:
AT+GTCAINFO?
