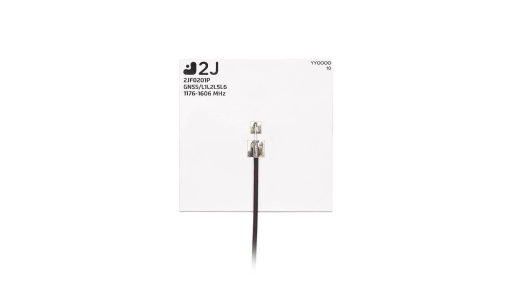

GNSS antenna, L1L2L5L6, flexible adhesive, 10cm, MHF-4L

Article Number: 11842
Brand: 2J
Supplier number: 2JF0201P-010MC137B-MHF4L_TECHSE

Passive Multiband GNSS Antenna That Combines High Precision, Flexibility For High Performance and Reliability

The 2JF0201P is a passive multiband constellation antenna, ideal for applications using high precision GNSS L1, L2, L5, and L6 bands. It can receive GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, and IRNSS signals, making it ideal for multiple applications including land survey, transportation and autonomous vehicles. This antenna allows the user to achieve higher location accuracy, as well as stability of position tracking in urban environments, mountainous or rough terrain.

This high-performance antenna is designed to operate on low power consumption without compromising its high efficiency of up to 79.9% across all bands within 1176 – 1606 MHz. Efficiency is 75% in L5 and 76.2% in L2 band, making it one of the most reliable solutions on the market. The 2JF0201P has excellent performance and its design achieves a 4.9 dBi GNSS passive peak gain with an excellent broad axial ratio, which makes it resilient to multipath rejection and excellent phase center stability.

Installation / Environmental

The 2JF0201P is a flexible polymer antenna manufactured without any hazardous materials, and it is both REACH and RoHS compliant. Exceptional durability in temperatures ranging between -40C and +85C. The combination of flexible polymer material, thin size design, and self-adhesive mounting make the integration process extremely simple.

This antenna comes with an MHF-4L connector and 10cm cable length.

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

Do you need offline data on this product?

Download datasheet

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
Technology / Antenna Frequency
GLONASS 1598-1610
GPS 1575.42
Antenna Location
Internal
Mounting method
Adhesive
Connector Type
IPEX MHF-4L
Impedance
50 Ohm
Cable length
10 cm
Cable Specification
1.37mm coax
Polarization
Linear
Radiation pattern
Omnidirectional
Max power
25 W
Operating Temperature Range
-40 °C – 85 °C
Width
45.4 mm
Length
45.4 mm
Height
0.2 mm

Datasheet for 2JF0201P internal GNSS antenna

Download

Uploaded at
2023-05-15 09:33:21
Last updated
2023-05-15 09:33:21
