Huawei M.2 Developer kit for ME906/MU736

Article Number: 10118
Manufacturer: Huawei
Supplier number: 51079113

The Huawei M.2 Development Kit (DVK) for MU736 and ME906V/E/J provides a complete solution based on the data functions of the module. For designers who adopt the module in their design, the DVK facilitates their module- based programming and troubleshooting at the project development stage.

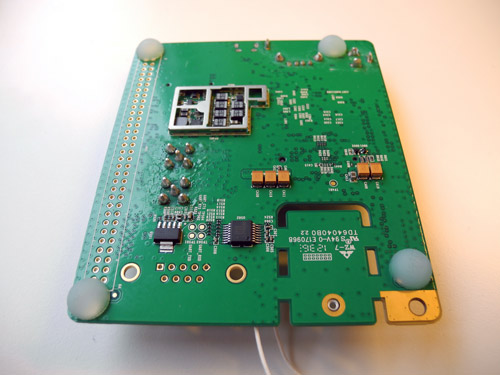

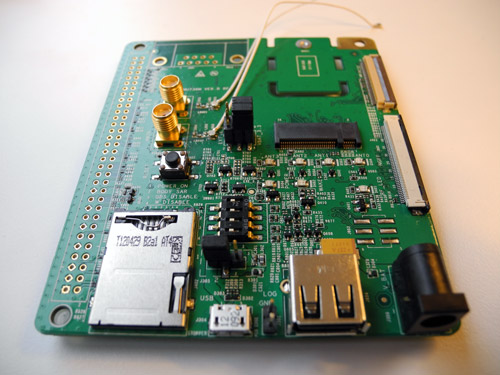

Consisting of a dedicated interface board and accessories, the DVK provides the following interfaces:

One Micro USB port
Standard Subscriber Identity Module (SIM) card interface
Two antenna connectors

The ME906 or MU736 module is connected to the M.2 connector. The signals output from the module are transferred to the development board for secondary development.

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Sample Price

No prices available

For more information
please contact us at
sales@techship.com

For larger quantities and complete pricing, please sign in or register

Do you need offline data on this product?

Download datasheet

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
Manufacturer
Huawei
External Voltage
Yes
Interface to host
micro USB port
Form Factor
M.2
Technology
LTE - cat 3
HSPA+

This document mainly describes the power supply design for Huawei modules. This document also provides Huawei modules' requirements for power supplies, which can be used as reference for designing power supplies for Huawei modules. This document is composed of four chapters:

Power Supply Requirements
Power Supply Design Requirements
External Power Supply Circuits
Recommendations for the Layout and Routing of External Power Supply Circuits

Download

This chapter provides a brief description of the M.2 module development kit (DVK), including:
- Introduction to the DVK
- Components of the DVK

The DVK provides a complete solution based on the data functions of the module.
For designers who adopt the module in their designs, the DVK facilitates their module-based programming and troubleshooting at the project development stage.
Consisting of a dedicated interface board and accessories, the DVK provides the following interfaces:
- One 5 V power supply input interface
- Two USB interfaces (one Micro USB port and one A-type USB port)
- One standard RS-232 interface: COM1 with 4-line
- Standard Subscriber Identity Module (SIM) card interface
- Two antenna connectors

The M.2 module is fixed to the DVK through the M.2 connector. The signals output from the module are transferred to the DVK for secondary development.

Download

Uploaded at
2013-01-15 12:57:47
Last updated
2015-09-30 13:21:22
Version
Draft 01
Related products
Huawei ME906J - Japan
Huawei ME906E - EU/ASIA
Huawei ME906V - US
Huawei MU736
Huawei M.2 Developer kit for ME906/MU736
