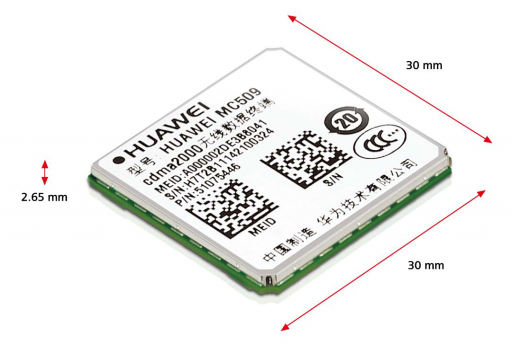

Huawei MC509 - CDMA/EVDO LGA Module - M2M - GPS

Article Number: 10076
Brand: Huawei
Supplier number: MC509

Huawei MC509 is a dual-band CDMA EVDO Rev A wireless module with downlink data rates up to 3.1Mbps and uplink data rates up to 1.8Mbps. MC509 is part of the MX509 family, pin-to-pin compatible with MU509 and MT509.

MC509 has also been globally certified and has been approved by Verizon Wireless. With its ultra-compact design and extended operating temperature range, MC509 is the perfect wireless broadband module for M2M and other embedded applications.

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

We suggest Telit LE910C1-WWX LTE Cat-1 LGA
as replacement for this module.

Do you need offline data on this product?

Download datasheet

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
Form Factor
LGA
Max DL Speed
3.1 Mbps
Max UL Speed
1.8 Mbps
GNSS
Yes
GNSS technology
Antenna Connectors
Through pin
Certification
FCC
CCC
Carrier Certification
Verizon
Sprint
Operating Temperature Range
-30 °C – 75 °C
Chipset
Qualcomm
QSC6085
Data Interface
USB 2.0
Driver Support
Windows
Android
Linux
CDMA bands
800
1900
This guide explains how to make a dial up connection with Linux.

Download

This document describes how electrostatic discharge (ESD) occurs, how to conduct ESD tests, how interfering signals resulted from ESD are coupled to circuits of electronic devices, and what rules need to be followed during ESD design for Huawei LGA modules. Following these rules can provide users with good ESD performance during applications of Huawei LGA modules.

Download

This document describes the rules and precautions of designing Printed Circuit Board (PCB) interconnection for the HUAWEI LGA module. By observing the rules, users can ensure the performance of this module in use and reduce costs effectively.

Download

This document provides instructions for storage, packing, SMT assembly, and rework of the HUAWEI LGA module, and serves as a guide to secondary assembly of the HUAWEI LGA module. Meanwhile, this document provides PCB design guide for module assembly requirements of producibility and maintainability
The HUAWEI LGA module has two types of packaging:

PCB145-3030M: 145 pin LGA with a dimension of 30 mm × 30 mm
PCB114-3020M: 114 pin LGA with a dimension of 30 mm × 20 mm

Download

The purpose of this document is to describe some hardware specification which is useful to develop a product with HUAWEI LGA module supporting PCM (Pulse- Coded Modulation). This document is intended for HUAWEI customers who are integrators and about to implement their applications by using our module.

The HUAWEI LGA module supports the PCM, which can be used for the module to transmit and receive digital audio data. Linear and μ-law codecs are supported. The HUAWEI LGA module uses the PCM interface as part of the audio front end; it easily allows for an external codec to be used instead of the internal codec. As an example, through the PCM you could connect a HUAWEI LGA module to a Bluetooth device.

The HUAWEI LGA module has one PCM port. Please refer to the Hardware Guide of the module that you are in use to know the PIN number of the PCM ports.

Download

Communications through universal asynchronous receiver/transmitter (UART) serial ports is convenient and reliable. UART serial ports are widely adopted in Huawei modules. This design guide describes the serial port specifications of Huawei modules and provides recommended design schemes for peripheral circuits. When designing UART serial ports for Huawei modules, customers can refer to this document.

Most of Huawei modules provide 8-wire serial ports with flow control. These 8-wire serial ports can also be used as 2-wire or 4-wire serial ports.

Download

Datasheet for Huawei MC509. This document includes an overview of MC509 and it's features. For more detailed technical information, see the Huawei MC509 Hardware Guide.

Download

Uploaded at
2012-09-14 12:21:31
Last updated
2015-09-24 19:52:52
Related products
Huawei MC509
Huawei MC509-a Mini PCI Express
Huawei MC509-p Mini PCI Express
This document provides information about the major functions, supported services, system architecture, and technical references of HUAWEI MC509 CDMA LGA Module.

Download

Uploaded at
2012-09-18 10:14:30
Last updated
2015-09-24 19:35:32
Version
01
Related products
Huawei MC509
Huawei MC509-a Mini PCI Express
Huawei MC509-p Mini PCI Express
This document describes the AT command interface specification that is supported by Huawei terminal product MC509&MC509-a module. This document describes certain AT commands (implemented by terminal devices) of international standards such as TIA/EIA/IS-707-A.3,GSM 07.07, GSM 07.05, and International Telecommunication Union-Telecommunication Standardization Sector (ITU-T) V.250 according to the requirements of terminal devices. In addition, this document describes the proprietary AT command interfaces that are implemented by terminal devices.

This document does not describe the interfaces that have been defined by standards or implemented by the mobile terminal (MT) but are not required by the MC509&MC509-a. The description of AT command interfaces covers only the data packets of interfaces and the methods and processes for the terminal equipment (TE) and the MT to use interfaces, excluding the contents that are not directly related to interfaces. In addition, this document describes only the AT command interfaces falling within the range of Rm interfaces between the TE and MT, excluding the AT command interfaces falling within the range of Um interfaces between the MT and interworking function (IWF).

Download

Uploaded at
2013-01-08 14:24:35
Last updated
2015-09-24 19:30:08
Version
05
Related products
Huawei MC509
Huawei MC509-a Mini PCI Express
Huawei MC509-p Mini PCI Express
This archive contains certification documents for Huawei MC509. Includes FCC and RoHS certificate and report.
