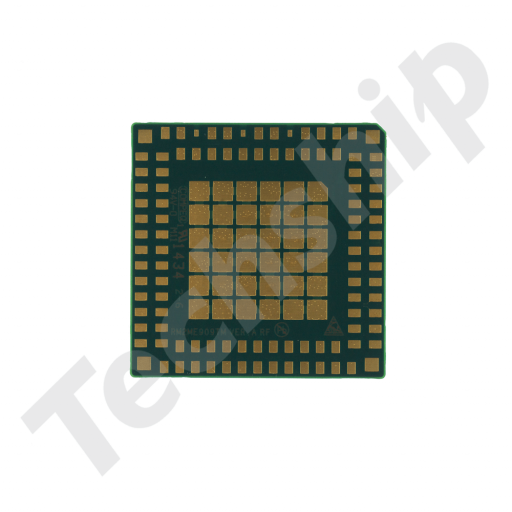

Huawei ME909Tu-120

Article Number: 10186
Manufacturer: Huawei
Supplier number: 55010094

ME909T is an automotive grade LTE module. European version is dedicated for Europe network coverage. It is pin-to-pin compatible with MU609T, offers full set of telematics features and functions, including ecall, GNSS, FOTA...etc. ME909T is fully approved, including regional, country and carrier approvals. It is perfect for applications like telematics, fleet management, emergency call, breakdown or roadside assistance.

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Sample Price

No prices available

For more information
please contact us at
sales@techship.com

For larger quantities and complete pricing, please sign in or register

Do you need offline data on this product?

Download datasheet

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
UMTS Bands
B1 (2100)
B2 (1900)
B26 (850)
B8 (900)
MIMO (Multiple-Input Multiple-Output)
Yes
LTE Bands
B1 (2100)
B2 (1900)
B3 (1800)
B4 (AWS)
B7 (2600)
B8 (900)
B20 (800DD)
B5 (850)
Manufacturer
Huawei
LTE Region
Europe
Form Factor
LGA
Technology
LTE - cat 3
Antenna Interface
Through pin
GPS
Yes
GNSS technology
Max DL Speed
100 Mbps
Max UL Speed
50 Mbps
Chipset
Qualcomm
MDM9X15
Operating Temperature Range
-40 °C – 85 °C
Driver Support
Linux
Interface
USB 2.0
GPIO
Yes
Carrier Certification
Vodafone
Size
40x40x4 mm

This document mainly describes the power supply design for Huawei modules. This document also provides Huawei modules' requirements for power supplies, which can be used as reference for designing power supplies for Huawei modules. This document is composed of four chapters:

Power Supply Requirements
Power Supply Design Requirements
External Power Supply Circuits
Recommendations for the Layout and Routing of External Power Supply Circuits

Download

The datasheet for the Huawei module ME909Tu-120

Download

Uploaded at
2014-02-26 10:16:20
Last updated
2015-10-05 12:49:52
Version
01
