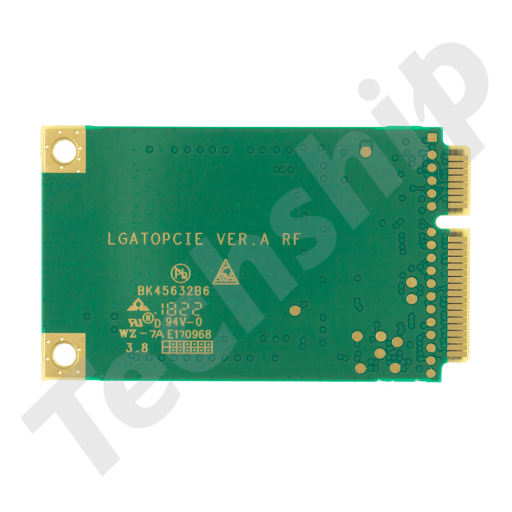

Huawei MU709s-6 mPCIe
Supplier number: 55010165
Huawei MU709s-6 mPCIe is a dual band HSPA+ module (850/1900/2100MHz) with an attractive price performance ratio targeted for the Asia Pacific and Latin America market. Top class performance allows data speeds up to 21 Mbit/s downlink and 5.76 Mbit/s uplink. With a temperature range between -40 - + 70 degrees Celsius it offers a wide usage range for most industrial environments. MU709 has an embedded TCP/IP stack, PCM Voice and firmware-over-the-air update features.
The Huawei MU709s-6 is the first wireless M2M module from Huawei with a Hisilicon chipset and the MU709 is pin-pin compatible with MU609 and ME909.
To develop applications and to test the mPCIe module separately the article 10069 Techship MiniPCIe Developer Kit incl. Technical support could be very helpful.
- UMTS Bands
- B1 (2100)
B2 (1900)
B5 (850)
- GSM/EDGE Bands
- B5 (850)
B8 (900)
B3 (1800)
B2 (1900)
- Form Factor
- mPCIe - full size
- Technology
- HSPA+
- Antenna Connectors
- IPEX MHF/U.FL
- GNSS
- No
- Max DL Speed
- 21.6 Mbps
- Max UL Speed
- 5.76 Mbps
- Chipset
- Balong 330
- Operating Temperature Range
- -30 °C – 75 °C
- Driver Support
- Windows 7
Linux
Android
Windows
Windows 8
- Width
- 30.4 mm
- Data Interface
- USB 2.0
- Length
- 51 mm
- Height
- 3.4 mm
- Voice Call Support
- Yes
- SIM interface
- Through miniPCIe connector
- GPIO
- No
- Extended Operating Temperature Range
- -30 °C – 75 °C
- Audio interface
- Digital PCM signal input/output in socket
- Certification
- FCC
CE
RoHS
GCF
A-Tick
ANATEL
RCM
IC
CE RED
- Technical details:
- BOM/SKU code and related firmware version
55010244 - firmware V.11.652.65.00.00
55010165 - firmware V.11.652.61.00.00
Please contact Techship sales team for additional information regarding SKU/BOM availability.
