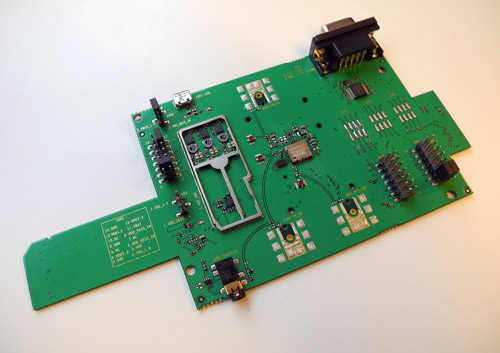

This is the development kit for the Huawei MW269 V2 WiFi module. Huawei MW269 is a WiFi module with 62-pin LGA form factor. With it's extremely small footprint, MW269 is perfectly suitable for all kinds of applications were space is limited and high-speed WiFi connectivity is essential.
This document mainly describes the power supply design for Huawei modules. This document also provides Huawei modules' requirements for power supplies, which can be used as reference for designing power supplies for Huawei modules. This document is composed of four chapters:
Power Supply Requirements
Power Supply Design Requirements
External Power Supply Circuits
Recommendations for the Layout and Routing of External Power Supply Circuits
