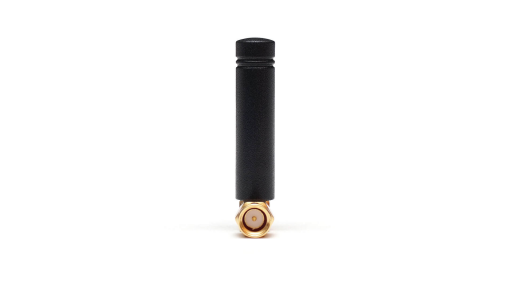

LTE right angled stub antenna, SMA-M

Article Number: 11837
Brand: 2J Antennas
Supplier number: 2J0B24-C884G_TECHSE

The elegant size smart antenna with no compromise on efficiency

This LTE connector mount antenna 2J0B24 was designed for compact installations with no compromise on efficiency and performance. Suitable for Low Power Wide Area Network NB-IoT applications where devices require constant connectivity within frequencies operating between 698MHz-960MHz, 1710MHz-2170Mhz and 2500MHz-2700Mhz. The 2J0B24 series is ideal for HD video transmission, dash cameras, fleet management, logistics, LTE routers and all other applications that require a cellular connection.

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

Do you need offline data on this product?

Download datasheet

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
Technology / Antenna Frequency
LTE 698-960/1710-2170/2500-2700 MHz
Antenna Location
External
Mounting method
Connector
Connector Type
SMA-M
Impedance
50 Ohm
Polarization
Linear
Radiation pattern
Omnidirectional
Max power
25 W
Operating Temperature Range
-40 °C – 85 °C
Height
44 mm

Datasheet for 2J0B24-C884G LTE antenna

Download

Uploaded at
2023-05-10 10:45:01
Last updated
2023-05-10 10:45:01
