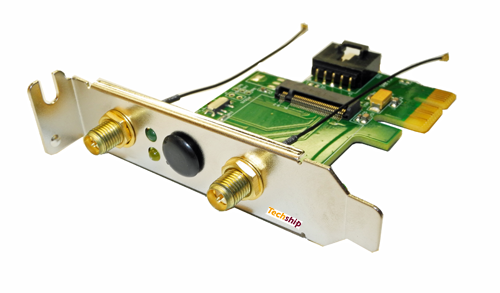

M.2 - PCIe adapter with bracket RPSMA

Article Number: 10339
Brand: BPlus
Supplier number: M2P2H-RPSMA V1.1

The PCI-E M.2 Card passive adapter is designed for wireless application on desktop PCs that convert mini PCI express cards to USB 5pin Header or standard PCI-Express 1x slot. You can insert your USB type M.2 card to this adapter then plug to USB 5pin header port through USB cable. Or insert your PCI-E type M.2 card into this adapter then insert to PCI-E 1x connector.

This kit contains an M.2 to PCIe adapter, u.fl to RPSMA-pigtail cables, a standard height PCI express bracket, a dupoint 5PIN to dupont 5PIN USB cable and a flat head screw.

M.2 stands for Next Generation Form Factor which is invented for PCI-SIG by Intel and it is developed for flat and high-efficiency equipment such as Ultrabook™ or Tablet PCs. It is a natural transition from the Mini Card and Half Mini Card to a smaller form factor in both size and volume which supports multiple function add-in cards/modules including: LTE, 3G, Wi-Fi, and Bluetooth. Also adds functionality to USB 3.0, display Port, SDIO and SSD-PCIe

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
Size
65x67x1.6 mm
Module KEY
A
Technical details:
Low Profile Height PCI Express 1x Add-in Card – Standard Height by bundled JP0593 bracket
Supports system bus interface: PCIe & USB2.0
Supports USB interface of m.2. modules such as LTE, 3G,CDMA, WWAN, HSPA, GPS, WiMAX and Bluetooth to desktop PC.
Low Profile PCI Express Add-in Card – max 3 ANTs for Low profile, max 4 ANTs for Standard Height
Wireless access LED, POWER LED
Transparent to operating systems and does not require any software drivers
