ME909u-521 devkit
Supplier number: 55010025

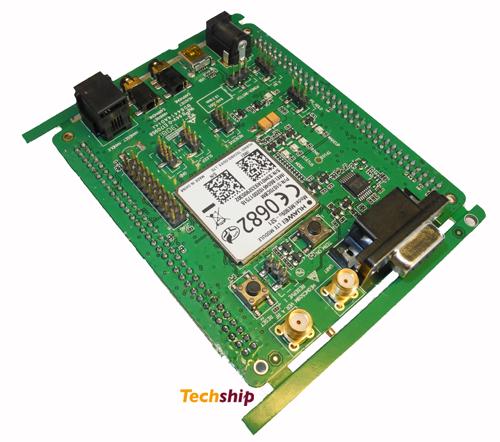

Huawei ME909u-521 Development Kit (DVK) with UART.
The DVK provides a complete solution based on the data and audio functions of the ME909 module.
For designers who adopt the module in their design, the DVK facilitates their module-based programming and troubleshooting in the testing and integration stage.
The ME909u-521 LTE LGA module is soldered onto the interface board in a manner that is similar to the surface mounting of chips. The signals output from the module are transferred to the development board for secondary development.
For data sheet and further information see article 10102 Huawei ME909u-521 - EU/ASIA
- UMTS Bands
- B1 (2100)
B2 (1900)
B26 (850)
- MIMO (Multiple-Input Multiple-Output)
- Yes
- LTE Bands
- B1 (FDD 2100)
B2 (FDD 1900)
B3 (FDD 1800)
B4 (FDD 1700 / AWS)
B7 (FDD 2600)
B8 (FDD 900)
B20 (FDD 800DD)
B5 (FDD 850)
- GSM/EDGE Bands
- B5 (850)
B8 (900)
B3 (1800)
B2 (1900)
- Interface to host
- micro USB port
UART port
- Form Factor
- LGA
- Technology
- LTE - cat 3
- Antenna Connectors
- SMA
- GNSS
- Yes
- GNSS technology
- Max DL Speed
- 100 Mbps
- Max UL Speed
- 50 Mbps
- Driver Support
- Linux
- GNSS antenna support
- Passive
- GPIO
- Yes
This guide instructs the kernel driver integration development for Huawei modules based on Linux operating system (OS), such as Android, Ubuntu and Chrome OS. It is intended for the driver developers of the products based on Linux kernel OS.
- Uploaded at
- 2015-02-26 17:24:50
- Last updated
- 2018-12-03 10:00:35
- Version
- V100R001_V2.0
- Requirements
- Linux, Huawei Module
