USBMI-WP-SMA V1.3BSupplier number:

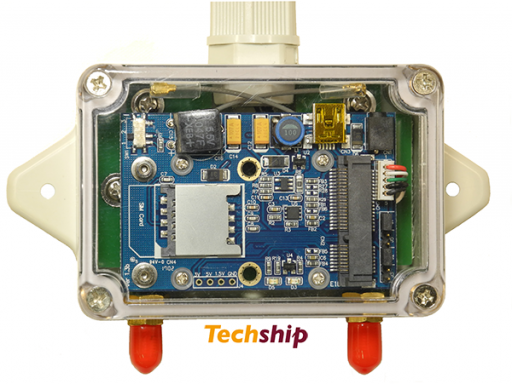

This miniPCIe to USB2 adapter is designed for use in tough environments and have a protection level corresponding to IP66. It contains a wireless adapter board with a slot for any miniPCIe wireless module using USB2 data interface. Further it has one Mini (2FF) SIM-slot and 2* U.FL antenna interface connectors for the miniPCIe wireless data card inside. Antenna connectors on the outside of casing is of SMA female type.
Connect desired antennas with SMA male antenna connector and it is ready to use.
- miniPCIe to USB board, Revision 1.2

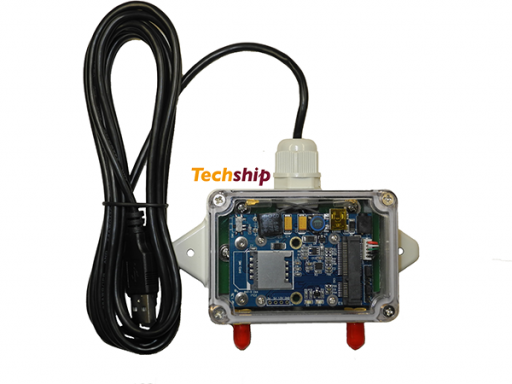

- 2.5 meter cable with USB 2.0 type A male connector.
- Mini (2FF) SIM-slot
- Compliant with IP-66
- Full or half size miniPCIe card dimensions supported
- Operating Temperature Range : - 40 to +85°C
- Operating Humidity Range : 5% to 95% RH
This adapter is not compatible with the Telit LM960 LTE Cat18 cellular miniPCIe module.
