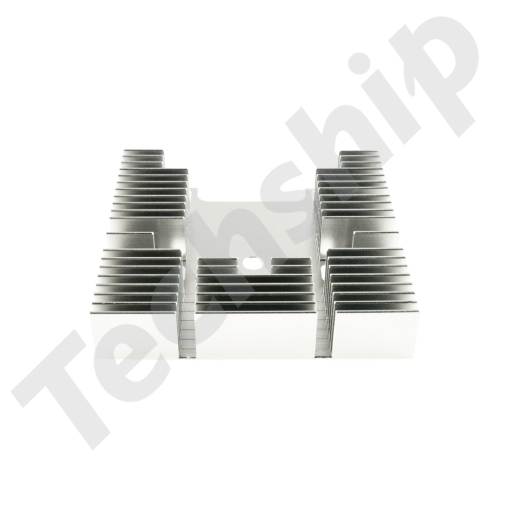

Sierra Wireless M.2 Developer Kit EM9/EM76 Series

Article Number: 11131
Brand: Sierra Wireless
Supplier number: 6001349

NOTE This board does not contain any module, which needs to be bought separately.

Sierra Wireless M.2 Developer Kit EM9/EM76 series is used to help users to create and define applications when using the AirPrime EM9/EM76 series embedded modules.

The Development Kit provides following interfaces:
• Multiple power supply inputs
• M.2 interface to connect the EM9 series embedded module
• Host interfaces
• SIM sockets
• Debugging ports
• System interfaces
• RF bridges
• mmWave interface (power supply and control signals)


End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
Form Factor
M.2
Sierra Wireless M.2 Developer Kit EM9/EM76 User Guide

Download

Uploaded at
2020-11-19 13:51:57
Last updated
2021-07-30 16:33:42
Version
R2
Related products
Sierra Wireless M.2 Developer Kit EM9/EM76 Series
AT commands guide for the Sierra Wireless AirPrime EM919x series 5G cellular module series and the EM7690 4G LTE-A cat 20 cellular module.

Download

Uploaded at
2020-09-28 15:29:06
Last updated
2022-09-29 12:25:01
Version
Rev6
Requirements

Related products
Sierra Wireless EM9190 5G NR M.2
Sierra Wireless EM9191 5G sub-6 M.2
Sierra Wireless EM7690 LTE CAT-20
Sierra Wireless M.2 Developer Kit EM9/EM76 Series
User guide for the Sierra Wireless AirPrime EM919x - EM7690 series modules development kit.

Download

Uploaded at
2020-09-28 15:34:27
Last updated
2021-08-16 14:09:08
Version
Rev2
Related products
Sierra Wireless EM9190 5G NR M.2
Sierra Wireless EM9191 5G sub-6 M.2
Sierra Wireless EM7690 LTE CAT-20
Sierra Wireless M.2 Developer Kit EM9/EM76 Series
Question

Why does not our EM9190/EM9091/EM7690 appear in our system when connected to our host board?

Solution

The Sierra 5G (EM919x) modules and EM7690 has the PCIe host interface as default, as compared to the USB interface. This differs from most other modules on today's market and can be a reason as to why the module is not appearing in your system.

First, make sure that there are no pin-conflicts between the adapter/host board and the module. To avoid any incompatibilities we recommend the Sierra Wireless development Kit (11131) or the Techship MU201 adapter.

To change the host interface from PCIe to USB using the development kit please do the following;
Slide SW201 to the USB connector (CN204).
Change CN203 jumper from 2-3 to 1-2.

To change the host interface from PCIe to USB using the MU201 adapter please do the following;
Connect the 1.27 mm jumper at AS20.
Connect the 1.27 mm jumper at AS22.

What happens when slide SW201 is switched (or jumper placed at AS20) is that pin #20 (PCIE_DIS) is set to high (1.8V) and selects USB as host interface. Changing the jumper on the CN203 (or placing a jumper or AS22) sets pin #22 (VBUS_SENSE) to high (3.135 - 4.2 V) which is used to detect USB during USB connection.

This is further explained in the Sierra Development Kit User Guide and the EM919X-EM7690 Product Technical Specification. These documents are linked to this FAQ and can also be found on the product pages under the "technical documentation" tab.
