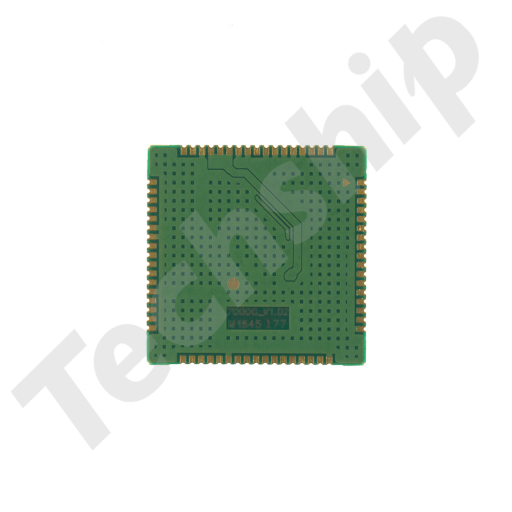

SIMCom SIM7000E CAT-M/NB-IoT SMT

Article Number: 10629
Supplier number: S2-10732-Z1T5J

SIMCom SIM7000E is a Quad-Band LTE-FDD and Dual-Band GPRS/EDGE SMT module. It supports LTE CAT-M1(eMTC) and NB-IoT with up to 375kbps data transfer.
SIM7000E is intended for the European and Australian markets
It has strong extension capability with rich interfaces including UART, USB2.0, GPIO etc.

It is designed for applications that need low latency, medium throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, telematics, asset tracking, remote monitoring ,
E-health and mobile POS terminals.



End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Sample Price

No prices available

For more information
please contact us at
sales_email

For larger quantities and complete pricing, please sign in or register

Do you need offline data on this product?

Download datasheet

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
MIMO (Multiple-Input Multiple-Output)
No
LTE Bands
B3 (1800)
B8 (900)
B20 (800DD)
B28 (700 APAC)
GSM/EDGE Bands
B8 (900)
B3 (1800)
Manufacturer
SIMCom
LTE Region
Europe
Form Factor
SMT
Technology
NB-IoT
CAT-M1 (eMTC)
Antenna Interface
Pin
GPS
Yes
GNSS technology
GPS
GLONASS
BeiDou
Galileo
QZSS
Max DL Speed
0.3 Mbps
Max UL Speed
0.375 Mbps
Chipset
Qualcomm
MDM9206
Operating Temperature Range
-40 °C – 85 °C
Driver Support
Windows 7
Windows XP
Windows Vista
Linux
Android
Windows 8
Windows CE
Windows Mobile
Interface
USB 2.0
Serial / UART
GPIO
I2C
ADC
GPIO
Yes
Carrier Certification
Deutsche Telekom
Certification
RoHS
REACH
CE RED
Technical details:
LTE NB-IoT and LTE CAT-M1 network technology requires a network side upgrade also, therefore please check with local network operator that it is supported in your location.

This manual describes the hardware and technical specifications of the module.

Download

This manual describes the AT commands valid for controlling the Simcom SIM7000 Series modules.

Download

SIM800F_SIM900_SIM5300E_Migration to SIM7000_Application Note_V1.00,
SIM7000 Series UART Application Note_V1.00,
SIM7000 Series_FTP_Application Note_V1.00,
SIM7000 Series_GNSS_Application Note_V1.00,
SIM7000 Series_HTTP_Application Note_V1.01,
SIM7000 Series_NTP_Application Note_V1.00,
SIM7000 Series_PING_Application Note_V1.00,
SIM7000 Series_TCPIP_Application Note_V1.01

Download

Datasheet for SIMCom SIM7000E

Download

Uploaded at
2018-02-22 11:24:17
Last updated
2018-02-22 11:24:17
Related products
SIMCom SIM7000E CAT-M/NB-IoT SMT
SIMCom SIM7000E CAT-M/NB-IoT PCIE

Certificate declaring CE RED compliance for SIM7000E module

Download

Uploaded at
2018-01-19 10:58:04
Last updated
2018-01-19 10:58:04
Related products
SIMCom SIM7000E CAT-M/NB-IoT SMT
SIMCom SIM7000E CAT-M/NB-IoT PCIE

Certificate document for CE RED compliance for Simcom SIM7100E cellular module.

Download

Uploaded at
2018-01-12 17:00:41
Last updated
2018-01-12 17:00:41
Related products
SIMCom SIM7000E CAT-M/NB-IoT SMT
SIMCom SIM7000E CAT-M/NB-IoT PCIE

This archice contains the Simcom SIM7000 Series Firmware Update Tool for Microsoft Windows systems
(Not for SIM7020 series)

Download

Uploaded at
2018-02-27 11:58:25
Last updated
2018-10-05 11:53:43
Version
1.39
Requirements
Microsoft Windows
Simcom SIM7000 series module
Simcom Windows drivers
Related products
SIMCom SIM7000G
SIMCom SIM7000E CAT-M/NB-IoT SMT
SIMCom SIM7000E Development Kit
SIMCom SIM7000G Development Kit
SIMCom SIM7000E CAT-M/NB-IoT PCIE
SIMCom SIM7000G CAT-M/NB-IoT/GSM miniPCIe

This archive contains the SIMCom SIM7000E firmware V.1529B02SIM7000E binary files and related release notes.

Download

Uploaded at
2019-07-02 11:38:40
Last updated
2019-07-02 11:38:40
Version
1529B02SIM7000E
Requirements
Simcom firmware update tool and Simcom driver installed in system.
The firmware is only compatible with the TX3.0 chipset hardware revision, ensure that current firmware revision begins with "1529" before applying this upgrade.

Can be checked with AT command:
AT+GMR
Revision:1529B01SIM7000E
Related products
SIMCom SIM7000E CAT-M/NB-IoT PCIE
SIMCom SIM7000E CAT-M/NB-IoT SMT

This archive contains the Simcom SIM7000E firmware update files.
Please note that this firmware is only suitable for SIM7000E SKU series: S2-10732-*****

Download

Uploaded at
2018-02-27 11:06:12
Last updated
2019-05-31 13:25:59
Version
1351B08SIM7000E
Requirements
Simcom Windows firmware update tool
SIM7000E SKU series: S2-10732-*****
Related products
SIMCom SIM7000E CAT-M/NB-IoT SMT
SIMCom SIM7000E CAT-M/NB-IoT PCIE

This archive contains the SIMCom SIM7000E firmware update files.
Please note that this firmware is only suitable for SIM7000E SKU series: S2-107Y3-*****

Download

Uploaded at
2019-04-23 11:35:53
Last updated
2019-04-23 11:37:10
Version
1529B01SIM7000E
Requirements
SIMCom Windows firmware update tool
SIM7000E SKU series: S2-107Y3-*****
Related products
SIMCom SIM7000E CAT-M/NB-IoT SMT
SIMCom SIM7000E CAT-M/NB-IoT PCIE
Question

What Linux kernel modules and configs are commonly used for communicating with cellular modules over their USB interface?

Solution

Most cellular modules can be supported in Linux by using som of the in-kernel drivers. The physical data interface to the host Linux system is usually done over USB which enumerates a set of different endpoints/interfaces. A set of serial interfaces for Modem/PPP, AT commands, NMEA location data and chipset debug information are almost always available in all configurations.

In addition some type of network endpoint/interface are also available and exposed. This can vary between manufacturers and chipset vendors and can also commonly be configurable by using USB configuration mode switching or through vendor specific AT commands.

Recommended kernel configurations to enable are listed bellow. Many cellular modules base their Linux support on these modules and drivers. Once included in the kernel build, the USB interfaces will be detected and bound correctly out-of-the-box or after applying source code patches to the driver modules.

Configs for USB serial drivers:
CONFIG_USB_SERIAL
CONFIG_USB_SERIAL_GENERIC
CONFIG_USB_SERIAL_WWAN
CONFIG_USB_SERIAL_OPTION
CONFIG_USB_SERIAL_QUALCOMM
CONFIG_USB_ACM

Configs for Modem/PPP support:
CONFIG_PPP
CONFIG_PPP_BSDCOMP
CONFIG_PPP_DEFLATE
CONFIG_PPP_FILTER
CONFIG_PPP_MPPE
CONFIG_PPP_MULTILINK
CONFIG_PPPOE
CONFIG_PPP_ASYNC
CONFIG_PPP_SYNC_TTY

Configs for USB network drivers:
CONFIG_USB_USBNET
CONFIG_USB_NET_QMI_WWAN
CONFIG_USB_NET_CDCETHER
CONFIG_USB_NET_RNDIS_HOST
CONFIG_USB_NET_CDC_NCM
CONFIG_USB_NET_HUAWEI_CDC_NCM
CONFIG_USB_NET_CDC_MBIM

Please relate to the Techship product specific web pages for vendor specific Linux integration guides.

Below is a selection of kernel commits relating to cellular module support in Linux kernels:
qmi_wwan: Add support for Fibocom NL678 series
qmi_wwan: Added support for Telit LN940 series
qmi_wwan: Added support for Fibocom NL668 series
USB: serial: option: add support for GosunCn ME3630 RNDIS mode
USB: serial: option: add support for Simcom SIM7500/SIM7600 RNDIS mode
USB: serial: option: add Simcom SIM7500/SIM7600 (MBIM mode)
USB: serial: option: add Fibocom NL678 series
USB: serial: option: add Telit LN940 series
USB: serial: option: add Fibocom NL668 series
USB: serial: option: add GosunCn ZTE WeLink ME3630
qmi_wwan: apply SET_DTR quirk to the SIMCOM shared device ID

If you use any of the listed cellular modules, drivers and specified USB modes in the commits above, ensure that your kernel version already include the patch or apply it to your build.

Related products
Huawei ME909u-521 - EU/ASIA
Huawei ME909u-523D - US - AT&T
Huawei ME909u-521 Mini PCI Express - EU/ASIA
Huawei ME909u-523D Mini PCI Express - US - AT&T
Sierra Wireless MC7710
Huawei ME909u-521 developer kit
Sierra Wireless MC7750
Sierra Wireless MC7700
Sierra Wireless MC7304
Sierra Wireless MC7354
Sierra Wireless MC7350
Sierra Wireless EM7305
Sierra Wireless EM7355
Huawei MU709s-2 LGA
Huawei MU709s-2 devkit
Huawei MS2131i-8 USB-stick
Huawei MU709s-2 mPCIe
Huawei ME909s-821 mPCIe
Huawei ME909s-821 LGA
Huawei ME909s-120 mPCIe EU
Huawei ME909s-120 LGA EU
Huawei MU709s-6 mPCIe
SimCom SIM5360E HSPA+ mPCie EU
SimCom SIM7100E LTE SMT EU
SimCom SIM7100E LTE mPCIe EU
SimCom SIM7100A LTE mPCIe US
SimCom SIM7100C LTE mPCIe China
SimCom SIM7230 LTE mPCIe EU
Huawei ME906s-158 M.2 EU
Huawei ME909s-120 LGA dev.kit
Sierra Wireless MC7455 LTE Cat 6
Sierra Wireless EM7455 LTE Cat 6
SimCom SIM7100E LTE mPCIe SIM
SimCom SIM5360E HSPA+ mPCie Audio/GPS
Sierra Wireless MC7430 mPCIe
SimCom SIM5360E-mPCIe SIM
Sierra Wireless EM7430 LTE Cat 6
Techship Starter kit Huawei MU709s
Techship Starter kit Huawei ME909s
SIMCom SIM7500A LTE SMT US
SIMCom SIM5300E HSPA SMT
SIMCom SIM5300E Development kit
SIMCom SIM7500A Development kit
Sierra Wireless WP7502
SIMCom SIM7500E LTE SMT EU
SIMCom SIM7500E Development Kit
Welink ME3630 E1C LCC EU
Welink ME3630 E1C mPCIe EU
SIMCom SIM7500E LTE mPCIe EU
Welink ME3630 U1A LCC (US)
Welink ME3630 U1A mPCIe (US)
SIMCom SIM7500SA LTE mPCIe Audio
SIMCom SIM7000E CAT-M/NB-IoT SMT
Telit HE910-G HSPA+, GPS, mPCIe
Telit HE910-G-SIM HSPA+, GPS, miniPCIe, SIM card holder
Telit HE910-D HSPA+, miniPCIe, Global
Telit HE910-D-SIM HSPA+, miniPCIe, SIM card holder
Telit LM940 LTE CAT-11, GPS, mPCIe
Telit LE910-EU V2 LTE CAT-4, mPCIe
Telit LE910-SV V2 LTE CAT-4, Verizon, mPCIe
Telit LE910-NA V2 LTE CAT-4, AT T, TM, mPCIe
Telit LE910-AU V2 LTE CAT-4, Telstra, mPCIe
Telit HE910-GL SIM UMTS, miniPCIe, SIM card holder
Telit HE910-G (Voice) HSPA+ LGA
Telit HE910-DG HSPA+ LGA
Telit HE910-EUD HSPA LGA
Telit LE910-NA1 LTE CAT-1 LGA
Telit LE910-EU1 LTE CAT-1 LGA
Telit LE910-SV1 LTE CAT-1 LGA
Telit LE910-EU V2 LTE CAT-4 LGA
Telit LE910-NA V2 LTE CAT-4 LGA
Telit LE910D1-E1 LTE CAT-1 LGA
Telit LN940 A11 LTE CAT-11 M.2
Telit LN940 A9 LTE CAT-9 M.2
SIMCom SIM7000E Development Kit
Huawei MS2372h-153 LTE USB Dongle EU
SIMCom SIM7600E-H LTE SMT EU
SIMCom SIM7600E-H LTE CAT-4 mPCIe EU
Sierra Wireless EM7565 LTE CAT-12
Welink ME3630 C1C mPCIe CN
SIMCom SIM7600E-H LTE CAT-4 mPCIe SIM
Huawei MS2372h-517 LTE USB Dongle US
SIMCom SIM7600A-H LTE CAT-4 mPCIe Audio
Huawei MS2372h-607 LTE USB Dongle Asia
Welink ME3630 E1C M.2 EU
Welink ME3630 E2C CAT-1 M.2 EU
Telit LE910-NA V2 LTE CAT-4, S.SKU, mPCIe
SIMCom SIM7600SA-H LTE CAT-4 mPCIe
SIMCom SIM7600A-H LTE CAT-4 mPCIe US
SIMCom SIM7600V-H LTE CAT-4 mPCIe Audio Verizon
Telit LE910-NA1 LTE CAT-1 Developer Kit
Telit LE910-EU1 LTE CAT-1 Developer Kit
Telit LE910-SV1 LTE CAT-1 Developer Kit
SIMCom SIM7020E-SUB KIT Developer kit
SIMCom SIM7000G
SIMCom SIM7020E NB-IoT SMT
SIMCom SIM7600SA-H LTE CAT-4 mPCIe with SIM holder
SIMCom SIM7600E LTE CAT-1 mPCIe
SIMCom SIM7600SA LTE CAT-1 mPCIe
SIMCom SIM7600E-H LTE CAT 4 -mPCIE with Audio
Telit LM960 LTE CAT-18, GPS, mPCIe
Telit LN941 LTE CAT-6, M.2
Sierra Wireless EM7511 LTE CAT-12
Sierra Wireless EM7565, CAT-12, M.2 CBRS Enabled
SIMCom SIM7000G Development Kit
SIMCom SIM7000E CAT-M/NB-IoT PCIE
SIMCom SIM7000G CAT-M/NB-IoT/GSM miniPCIe
SIMCom SIM7600E Development Kit
SIMCom SIM7020G-SUB KIT
Sierra Wireless MC-WP7607 LTE CAT-4 mPCIe
Telit LE910C4-NF LTE CAT-4 mPCIe
Telit LE910-NA V2 LTE CAT-4, S.SKU LGA
Telit LE910C1-NS
SIMCom SIM7906E LTE CAT-6 M.2
SIMCom SIM7000A CAT-M/NB-IoT mPCIe
Telit HE910-NAD HSPA+ LGA
Telit LE910-SVG LTE CAT-3 LGA
Telit HE910-NAR HSPA LGA
Telit LE910C1-NA LTE CAT-1 AT&T LGA
Telit LE910-NAG LTE CAT-3 AT&T LGA
Telit LE910-SVG LTE CAT-3 mPCIe
Telit LE910-NVG LTE CAT-3 LGA
SIMCom SIM7600G-H LTE CAT-4 mPCIe
Telit LE910C1-EU LTE CAT-1 mPCIe
Telit LE910C4-EU LTE CAT-4 mPCIe
SIMCom SIM7070E CAT-M/NB2
SIMCom SIM7070E Development Kit
Telit LM940, HW Rev. 2, LTE CAT-11, GPS, mPCIe
Telit LM960A18 LTE CAT-18 mPCIe
Question

How can we use the Simcom SIM7000 series with ECM network interface over USB in Linux systems?

Solution

In the recent firmware releases for the Simcom SIM7000 series it is possible to take advantage of the ECM network interface type over USB in order to establish data connectivity to host system instead of using Modem/PPP protocol or QMI. This how-to FAQ shows how it can be done.

The Simcom SIM7000 series expose a set of serial and QMI/RMNET interface over USB in default configuration.
By sending command:
AT+CECMMODE=1

The USB QMI/RMNET network interface can be configured to become a ECM interface instead. If this is supported in your current firmware version the module will re-enumerate in the host system with a ECM interface.

root@linux:~# usb-devices
T: Bus=03 Lev=01 Prnt=01 Port=01 Cnt=03 Dev#= 16 Spd=480 MxCh= 0
D: Ver= 2.00 Cls=ef(misc ) Sub=02 Prot=01 MxPS=64 #Cfgs= 1
P: Vendor=1e0e ProdID=9001 Rev=00.00
S: Manufacturer=SimTech, Incorporated
S: Product=SimTech SIM7000
S: SerialNumber=1234567890ABCDEF
C: #Ifs= 7 Cfg#= 1 Atr=e0 MxPwr=500mA
I: If#=0x0 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=ff Prot=ff Driver=option
I: If#=0x1 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=ff Prot=ff Driver=option
I: If#=0x2 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=ff Prot=ff Driver=option
I: If#=0x3 Alt= 0 #EPs= 3 Cls=ff(vend.) Sub=ff Prot=ff Driver=option
I: If#=0x4 Alt= 0 #EPs= 3 Cls=ff(vend.) Sub=fe Prot=ff Driver=option
I: If#=0x5 Alt= 0 #EPs= 1 Cls=02(commc) Sub=06 Prot=00 Driver=cdc_ether
I: If#=0x6 Alt= 1 #EPs= 2 Cls=0a(data ) Sub=00 Prot=00 Driver=cdc_ether

Activate the related network interface in Linux
(check assigned interface name e.g. in dmesg output)
root@linux:~# ip link set dev enx00a0c6047450 up

Run a DHCP client on the network interface:
root@linux:~# dhclient -v enx00a0c6047450
Listening on LPF/enx00a0c6047450/00:a0:c6:04:74:50
Sending on LPF/enx00a0c6047450/00:a0:c6:04:74:50
Sending on Socket/fallback
DHCPREQUEST for 192.168.225.20 on enx00a0c6047450 to 255.255.255.255 port 67 (xid=0x301a9d68)
DHCPACK of 192.168.225.20 from 192.168.225.1 (xid=0x689d1a30)
bound to 192.168.225.20 -- renewal in 16549 seconds.

The only thing needed now is to make sure that you have defined a APN for the subscription and are registered to a cellular network.
AT+CGDCONT?
+CGDCONT: 1,"IP","m2m.tele2.com","0.0.0.0",0,0,0,0

AT+CREG?
+CREG: 0,1

AT+CGATT?
+CGATT: 1

AT+CGACT?
+CGACT: 1,1

AT+CGCONTRDP
+CGCONTRDP: 1,5,m2m.tele2.com,10.160.26.28,,130.244.127.161,130.244.127.169

If APN name, IP etc. is returned with AT+CGCONTRDP, you should now be able to use the ECM network interface.

root@linux:~# ping -I enx00a0c6047450 8.8.8.8
PING 8.8.8.8 (8.8.8.8) from 192.168.225.20 enx00a0c6047450: 56(84) bytes of data.
64 bytes from 8.8.8.8: icmp_seq=1 ttl=54 time=696 ms
64 bytes from 8.8.8.8: icmp_seq=2 ttl=54 time=155 ms
64 bytes from 8.8.8.8: icmp_seq=3 ttl=54 time=150 ms
64 bytes from 8.8.8.8: icmp_seq=4 ttl=54 time=151 ms
64 bytes from 8.8.8.8: icmp_seq=5 ttl=54 time=127 ms
64 bytes from 8.8.8.8: icmp_seq=6 ttl=54 time=146 ms
^C
--- 8.8.8.8 ping statistics ---
6 packets transmitted, 6 received, 0% packet loss, time 12ms
rtt min/avg/max/mdev = 127.379/237.402/695.622/205.108 ms

Tested on SIM7000G miniPCIe with firmware:
AT+CGMR
Revision:1529B02SIM7000G

Question

How to collect initial diagnostics data and logs for Simcom SIM7000 series cellular modules, needed when requesting Techship technical support?

Solution

In order to troubleshoot and solve a technical problem, we ask you to please provide information about your system and logs from the related Simcom module when creating a technical support ticket.

Problem description of what exact problem is and in what precise situations present.

Describe the host system:
-Hardware (system board, peripherals...)
-Operating system and detailed versions (E.g. Windows, Linux release, kernel...)
-Drivers and driver versions

Identify the precise details of cellular module found on label:
-Model
-SKU/BOM or P/N code
(For RMA returns the IMEI number is mandatory)

If you are running on a Linux based system, please capture the terminal logs bellow:
uname -a
lsusb
lsusb -t
ifconfig -a
ls -l /dev/serial/by-id
ls -l /sys/bus/usb-serial/devices
dmesg

The logs from the cellular module firmware can be acquired by accessing the USB enumerated serial (COM) interfaces accepting AT commands. They can be named modem, AT, PC UI etc. (In Windows device manager, found under modem or serial interfaces). Send the following AT commands bellow to module and capture the output and include them when creating the the technical support ticket.

Test that you get a reply with command:
AT
Command echo enabled:
ATE1
Basic module info:
ATI
Detailed module version info:
AT+SIMCOMATI
Verbose error reporting:
AT+CMEE=2
Module model:
AT+CGMM
Firmware version:
AT+CGMR
IMEI Code:
AT+CGSN
Operational mode:
AT+CFUN?
Pin status:
AT+CPIN?
Get mobile operation band:
AT+CBAND?
Preferred band selection:
AT+CNBP?
Show network system mode:
AT+CNSMOD?
Preferred order CAT-M and NB-IoT:
AT+CMNB?
Preferred network mode:
AT+CNMP?
List network operator info:
AT+COPS?
Network registration status:
AT+CREG?
Network GPRS registration status:
AT+CGREG?
Network EPS registration status:
AT+CEREG?
Signal strength:
AT+CSQ
Request UE system info:
AT+CPSI?
Packet domain attach status
AT+CGATT?
List APN details/PDP profiles:
AT+CGDCONT?
AT$QCPDPP?
PDP profiles attach status:
AT+CGACT?
Show PDP IP address:
AT+CGPADDR
AT+CGCONTRDP
RM network interface status:
AT$QCRMCALL?
Power Saving Mode Setting:
AT+CPSMS?
Entended-DRX Setting:
AT+CEDRXS?
Get Network APN in CAT-M or NB-IOT:
AT+CGNAPN
Service Domain Preference:
AT+CSDP?
LTE Cat-M cell lock configuration:
AT+MCELLLOCK?
LTE NB-IOT cell lock configuration:
AT+NCELLLOCK?
NB-IOT Scrambling Feature config:
AT+NBSC?
APN configuration mode:
AT+CAPNMODE?
Query RRC State:
AT+CRRCSTATE?
CAT-M and NB-IOT band config:
AT+CBANDCFG?
Module crash reset status:
AT+CEDUMP?
NB-IOT band scan optimization config:
AT+CNBS?
Service Domain Preference For NB-IOT:
AT+CNDS?
Network information:
AT+CENG?

The support ticket can be created after login at: https://techship.com/technical_support/

You might also be interested in
