SIMCom SIM7100 LTE SMT US

Article Number: 10301
Brand: SIMCom
Supplier number: SIM7100-US

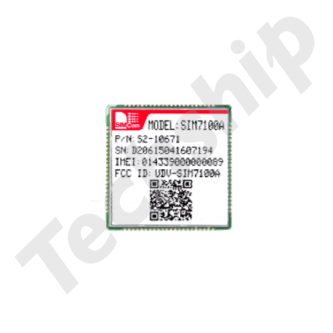

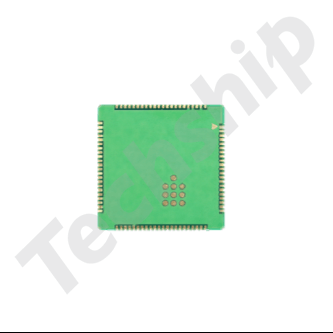

SIMCom presents an ultra compact and reliable wireless module SIM7100A which is based on Qualcomm MDM9215 multiple-mode LTE platform. SIM7100A is a complete multi-band LTE /WCDMA/GNSS module designed with very powerful processors integrating application core:CortexTM A5(550MHz),three QDSP6 cores (Up to 500Mhz), allowing customer to benefit from small dimensions and cost-effective product solutions.

It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capability like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application.

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

We suggest SIMCom SIM7600G-H R2 LTE CAT-4 SMT
as replacement for this module.

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
Region
North America
Form Factor
LCC
LTE Bands
B2 (FDD 1900)
B4 (FDD 1700 / AWS)
B5 (FDD 850)
B17 (FDD 700bc)
Max DL Speed
100 Mbps
Max UL Speed
50 Mbps
GNSS
Yes
GNSS technology
GPS
GLONASS
Antenna Connectors
IPEX MHF/U.FL
Operating Temperature Range
-40 °C – 85 °C
Chipset
Qualcomm
MDM9215
Data Interface
Serial / UART
GPIO
SMT
USB 2.0
Driver Support
Windows Vista
Windows 7
Windows 8
Windows XP
Android
Windows 8.1
Linux
Windows CE
Windows Mobile
MIMO (Multiple-Input Multiple-Output)
Yes
Size
30x30x2.9 mm
AT Commands manual for SIMCOM SIM7100 series cellular modules

Download

Document summarizing and describing the GPS systems epoch roll over dates in Simcom products GPS trackers and how to take precaution for it.

Download

Uploaded at
2020-01-07 14:50:05
Last updated
2021-12-10 13:41:30
Version
191119
Related products
SimCom SIM800H GSM LGA
SimCom SIM800C GSM SMT
SimCom SIM800F GSM SMT
SimCom SIM5360E HSPA+ mPCie EU
SimCom SIM5360E HSPA+ mPCie Audio/GPS
SimCom SIM5360E-mPCIe SIM
SIMCom SIM5320A mPCIe
SimCom SIM808 GSM/GPS SMT
SIMCom SIM7500A LTE SMT US
SIMCom SIM7500E LTE SMT EU
SIMCom SIM7500E LTE mPCIe EU
SIMCom SIM7500SA LTE mPCIe Audio
SIMCom SIM5300E HSPA SMT
SIMCom SIM5300EA-TE
SIMCom SIM868 GSM/GNSS SMT
SIMCom SIM7000E CAT-M1/NB1 SMT
SIMCom SIM7000G
SIMCom SIM7000E CAT-M1/NB1 mPCIe
SIMCom SIM7000G CAT-M/NB-IoT/GSM miniPCIe
SIMCom SIM7000A CAT-M SMT Verizon
SIMCom SIM7000A CAT-M SMT AT&T
SIMCom SIM7000A CAT-M mPCIe
SIMCom SIM7600NA-H LTE Cat-4 mPCIe
SIMCom SIM7070E CAT-M1/NB2 mPCIe
SimCom SIM900 GSM SMT
SimCom SIM900B GSM B2B
SimCom SIM7100E LTE SMT EU
SIMCom SIM7100A LTE SMT US
SimCom SIM7100E LTE mPCIe EU
SimCom SIM7100A LTE mPCIe US
SimCom SIM7100C LTE mPCIe China
SimCom SIM7230 LTE mPCIe EU
SimCom SIM800H development kit
SimCom Connector to SIM900B
SimCom SIM800C development kit
Simcom SIM900 development kit
SimCom SIM900B development kit
SIMCom SIM800F development kit
SIMCom SIM808 development kit
SimCom SIM7100E LTE mPCIe SIM
Simcom SIM28M
SIMCom SIM68M GNSS SMT
SIMCom SIM68M-TE
Simcom SIM39EAU
SIMCom SIM33ELA
SIMCom SIM33ELA development kit
SIMCom SIM39EAU development kit
SIMCom SIM68M development kit
SIMCom SIM28M development kit
SIMCom SIM7500A-TE Test Mount
SIMCom EVB-Kit
SIMCom SIM7500E-TE Test Mount
SIMCom SIM7000E-TE
SIMCom SIM7600E-H LTE SMT EU
SIMCom SIM7600E-H LTE CAT-4 mPCIe EU
SIMCom SIM7600E-H LTE CAT-4 mPCIe SIM
SIMCom SIM7600A-H LTE CAT-4 mPCIe Audio
SIMCom SIM7600SA-H LTE CAT-4 mPCIe
SIMCom SIM7600A-H LTE CAT-4 mPCIe US
SIMCom SIM7600V-H LTE CAT-4 mPCIe Audio Verizon
SIMCom SIM7020E-SUB KIT Developer kit
SIMCom SIM7020E NB-IoT SMT
SIMCom SIM7600SA-H LTE CAT-4 mPCIe with SIM holder
SIMCom SIM7600E LTE CAT-1 mPCIe
SIMCom SIM7600SA LTE CAT-1 mPCIe
SIMCom SIM7600E-H LTE CAT 4 -mPCIE with Audio
SIMCom SIM39EA GPS SMT
SIM7600E-TE-KIT
SIMCom SIM7600A-H LTE CAT-4 mPCIe-SIM
SIMCom SIM7020G-SUB KIT
SIMCom SIM7600CE-T LTE CAT-4 mPCIe CN
SIMCom SIM7906E LTE CAT-6 M.2
SIMCom SIM7906E LTE CAT-6 mPCIe
SIMCom SIM7600G-H LTE CAT-4 mPCIe
SIMCom SIM7070E CAT-M/NB2
SIMCom SIM7070E-TE Kit
SIMCom SIM7080G-TE KIT
SIMCom SIM7912G LTE CAT-12 M.2
Simcom SIM7600JC-H LTE CAT-4 mPCIe
SIMCom SIM7000G-TE-KIT
SIMCom SIM7600G R2 mPCIe
SIMCom SIM7020E-D NB1 SMT
SIMCom SIM7070E (RT) Cat-M1/NB2 mPCIe
This archive contains application guides for the module SIM7100 series cellular modules.
The following files:
Antenna design guidelines for diversity receiver system V1.01
SIM7100_CSD_Application_Note_V0.01
SIM7100_Delta_Package_Update_Application_Note_V0.01
SIM7100_ECALL_Application Note_V0.01
SIM7100_Email_Application_Note_V0.01
SIM7100_FTP_Application_Note_V0.01
SIM7100_GPIO_Application_Note_V0.01
SIM7100_GPS_Application_Note_V0.01
SIM7100_HTTP_Application_Note_V0.01
SIM7100_Internet_Service_Application_Note_V0.01
SIM7100_MIFI_Application Note_V1.00
SIM7100_MMS_Application_Note_V0.01
SIM7100_Network_Cell_Info_Application_Note_V0.01
SIM7100_SAT_Application_Note_V0.01
SIM7100_SIM5360_SIM800 Compatible Design_V1.01
SIM7100_SIM5360_SIM800C Compatible Design_V1.01
SIM7100_SIM7500_SIM7600 Series_LBS_Application Note_V1.00
SIM7100_SIM7500_SIM7600 Series_UIM HOT SWAP_Application Note_V1.01
SIM7100_SIM7500_SIM7600 Series_USB AUDIO_Application Note_V1.03
SIM7100_SIM7600M22 Series_TTS_Application Note_V1.02
SIM7100_Sleep_Mode_Application_Note_V0.01
SIM7100_SMS_Application_Note_V0.01
SIM7100_SSL_Application_Note_V1 01
SIM7100_TCPIP_Application_Note_V0.01
SIM7100_TTS_Application_Note_V0.01
SIM7100_UART_Application_Note_V0.01
SIM7X00_Audio_Application_Note_V1.00
SIM7X00 Series_Delta Package Update_Application Note_V1.00
SIM7X00 Series_TTS_Application Note_V1.00
SIM7X00 Series_UIM HOT SWAP_Application Note_V1.00
SIM7X00 Series_USB AUDIO_Application Note_V1.01

Download

This document describes the electronic specifications, RF specifications, interfaces, mechanical characteristics and testing results of the SIMCom SIM7100 series surface mount SMT/LGA modules. With the help of this document and other SIM7100 software application notes/user guides, users can understand and use SIM7100 series modules to design and develop applications quickly.

Download

Uploaded at
2015-10-09 17:08:20
Last updated
2018-01-12 18:12:08
Version
1.11
Related products
SimCom SIM7100E LTE SMT EU
SIMCom SIM7100A LTE SMT US
This guide explains how to make a NDIS connection using the SIM7100 in Linux.

Download

Uploaded at
2016-05-10 13:42:37
Last updated
2016-05-10 13:42:37
Version
01
Requirements
Linux
Related products
SimCom SIM7100C LTE mPCIe China
SimCom SIM7100A LTE mPCIe US
SimCom SIM7100E LTE mPCIe EU
SIMCom SIM7100A LTE SMT US
SimCom SIM7100E LTE SMT EU
SimCom SIM7100E LTE mPCIe SIM
Datasheet for SimCom SIM7100 US version. This document includes an overview of SIM7100 and it's features. For more detailed technical information, see the SimCom SIM7100 Hardware Design Guide.

Download

Uploaded at
2015-06-05 17:47:41
Last updated
2015-09-24 17:54:16
Version
1001
Related products
SimCom SIM7100A LTE mPCIe US
SIMCom SIM7100A LTE SMT US
This archive contains the following regulatory and operator approvals for Simcom SIM7100A North America region:
Regulatory approvals: FCC, IC, PTCRB.
Operator approvals: AT&T

Download

Uploaded at
2015-06-05 18:06:46
Last updated
2018-01-22 12:17:43
Related products
SIMCom SIM7100A LTE SMT US
SimCom SIM7100A LTE mPCIe US
This archive contains the Windows operating system drivers for the SIM7000, SIM7100, SIM7230, SIM7500, SIM7600, SIM7800 series Qualcomm chipset based cellular modules. Please refer to the installation instructions document for USB mode selection details.

Download

Uploaded at
2018-01-12 16:46:48
Last updated
2021-12-10 13:46:31
Version
V1.02
Requirements
Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP operating systems
Related products
SIMCom SIM7500A LTE SMT US
SIMCom SIM7500E LTE SMT EU
SIMCom SIM7500E LTE mPCIe EU
SIMCom SIM7500SA LTE mPCIe Audio
SIMCom SIM7000E CAT-M1/NB1 SMT
SIMCom SIM7000G
SIMCom SIM7000E CAT-M1/NB1 mPCIe
SIMCom SIM7000G CAT-M/NB-IoT/GSM miniPCIe
SIMCom SIM7000A CAT-M SMT Verizon
SIMCom SIM7000A CAT-M SMT AT&T
SIMCom SIM7000A CAT-M mPCIe
SIMCom SIM7600E-H LTE SMT EU
SIMCom SIM7600E-H LTE CAT-4 mPCIe EU
SIMCom SIM7600E-H LTE CAT-4 mPCIe SIM
SIMCom SIM7600A-H LTE CAT-4 mPCIe Audio
SIMCom SIM7600SA-H LTE CAT-4 mPCIe
Simcom SIM7600JC-H LTE CAT-4 mPCIe
SIMCom SIM7600A-H LTE CAT-4 mPCIe US
SIMCom SIM7600V-H LTE CAT-4 mPCIe Audio Verizon
SIMCom SIM7600SA-H LTE CAT-4 mPCIe with SIM holder
SIMCom SIM7600E LTE CAT-1 mPCIe
SIMCom SIM7600SA LTE CAT-1 mPCIe
SIMCom SIM7600E-H LTE CAT 4 -mPCIE with Audio
SIMCom SIM7600A-H LTE CAT-4 mPCIe-SIM
SIMCom SIM7600CE-T LTE CAT-4 mPCIe CN
SIMCom SIM7600G-H LTE CAT-4 mPCIe
SIMCom SIM7600V-H LTE CAT-4 M.2 Verizon
SIMCom SIM7600E LTE CAT-1 SMT
SIMCom SIM7600G-H R2 LTE Cat-4 mPCIe
SIMCom SIM7600NA-H LTE Cat-4 mPCIe
SIMCom SIM7600G-H R2 LTE CAT-4 SMT
SIMCom SIM7600G R2 LTE CAT-1 SMT
SIMCom SIM7600SA LTE CAT-1 SMT
SIMCom SIM7600G-H R2 LTE CAT-4 M.2
SIMCom SIM7600G-H R2 mPCIe SIM
SIMCom SIM7600G R2 mPCIe
SIMCom SIM7600E-H TE-KIT
SIMCom SIM7906E LTE CAT-6 M.2
SIMCom SIM7906E LTE CAT-6 mPCIe
SIMCom SIM7912G LTE CAT-12 M.2
SimCom SIM7230 LTE mPCIe EU
SIMCom SIM7000G-TE-KIT
SimCom SIM7100E LTE SMT EU
SIMCom SIM7100A LTE SMT US
SimCom SIM7100E LTE mPCIe EU
SimCom SIM7100A LTE mPCIe US
SimCom SIM7100C LTE mPCIe China
SimCom SIM7100E LTE mPCIe SIM
SIMCom SIM7500A-TE Test Mount
SIMCom EVB-Kit
SIMCom SIM7500E-TE Test Mount
SIMCom SIM7000E-TE
SIM7600E-TE-KIT
This archive contains the Simcom SIM7100 series Linux firmware update tools and related step by step guide applying the firmware update.

Download

This archive contains the firmware update tool, QPST tool and a firmware upgrade guide. Please follow instructions carefully.

Download

Uploaded at
2016-09-21 17:36:25
Last updated
2017-09-22 15:26:00
Version
V1.34
Requirements
Microsoft Windows OS
Related products
SIMCom SIM7100A LTE SMT US
SimCom SIM7100A LTE mPCIe US
SimCom SIM7100C LTE mPCIe China
SimCom SIM7100E LTE SMT EU
SimCom SIM7100E LTE mPCIe EU
SimCom SIM7100E LTE mPCIe SIM
This archive contains the Qualcomm Product Support Tools V.2.7.438.3 for SimCom SIM7-series modules.

Download

Uploaded at
2016-04-26 10:03:17
Last updated
2017-02-24 17:14:10
Version
2.7.438.3
Requirements
Microsoft Windows
Related products
SimCom SIM7100C LTE mPCIe China
SimCom SIM7100A LTE mPCIe US
SimCom SIM7100E LTE mPCIe EU
SimCom SIM7100E LTE mPCIe SIM
SimCom SIM7230 LTE mPCIe EU
SIMCom SIM7100A LTE SMT US
SimCom SIM7100E LTE SMT EU
This archive contains the Simcom SIM7100 QMI NDIS Linux driver and installation manual.

Download

Archive containing SimCom SIM7100A 4534B03SIM7100A firmware and release notes

Download

Uploaded at
2019-02-11 11:16:41
Last updated
2019-02-11 11:25:39
Version
4534B03SIM7100A
Requirements
Windows
Related products
SIMCom SIM7100A LTE SMT US
SimCom SIM7100A LTE mPCIe US
Question

How to step by step set up a data connection over QMI interface using qmicli and in-kernel driver qmi_wwan in Linux?



Solution

Several cellular modules based on Qualcomm chipsets implements the Qualcomm Qualcomm MSM (QMI) Interface.
There is a open source Linux in-kernel driver supporting this interface and it is called qmi_wwan. This driver can be used together with ModemManager and NetworkManager to automate connection establishment and as a connection manager.

The library libqmi which ModemManager uses can also be used to communicate in a more direct way with the cellular devices over the QMI interface and to step by step do necessary configurations and trigger the data connection over the cellular network.

A selection of cellular modules can be supported:

Using RAW IP kernel configuration:
Sierra Wireless MC74 series, EM74 series, EM75** series
Telit LM940, LM960
Telit LN94x series (requires USB mode switch)
Simcom SIM7500 series, SIM7600 series, SIM7600 -H series
(can be supported in qmi_wwan driver from kernel 4.18 or by applying the following one line qmi_wwan source code patch on previous kernel builds: qmi_wwan: apply SET_DTR quirk to the SIMCOM shared device ID)

Using 802.3 IP framing kernel configuration:
Simcom SIM7100 series
Sierra Wireless MC73**/EM73** series

ModemManager combined with NetworkManager will detect the cellular modules automatically in most cases, please refer to their respective documentations on how to establish a data connection using them.

Example on how to set up the data connection step by step manually with libqmi:
First install the libqmi Linux library e.g. by using your system package manager like apt or preferably latest version from source on the Freedesktop pages for libqmi project: https://www.freedesktop.org/wiki/Software/libqmi/

Verify that you have the Linux in-kernel qmi_wwan driver installed and attached for the cellular modules QMI interface over USB:
lsusb -t
Can look e.g. like this:
...
|__ Port 1: Dev 3, If 2, Class=Vendor Specific Class, Driver=qmi_wwan, 480M
...

If the driver is not correctly loaded, please verify that the module is set to expose the correct USB endpoints configuration toward the host system and that you have followed the provided guides from the cellular module vendors, regarding how to implement the module in Linux.

Libqmi expose a command line interface that can be used to communication with the module over QMI interface.
The qmicli help will output information about all commands available:
qmicli --help-all

The cellular modules QMI control interface are usually named cdc-wdm* e.g.:
qmicli --device=/dev/cdc-wdm0

In order to allow parallel commands to be execute on the module over QMI interface, it is recommended to use the libqmi proxy function. This can be done by including the attribute -p or --device-open-proxy in every qmicli command.

If a SIM pin is required for the SIM card, use command bellow:
qmicli --device=/dev/cdc-wdm0 -p --dms-uim-verify-pin=PIN,1234

The name of the related network interface to QMI control channel can be acquired with the command:
qmicli --device=/dev/cdc-wdm0 --device-open-proxy --get-wwan-iface

The most recent Qualcomm based cellular modules only expose QMI interfaces that can support Raw-IP mode. Sierra Wireless EM/MC74 and EM75 series modules, Telit LM940 and LN940 series for example require this.
Check what IP-mode the host system is configured for:
qmicli --device=/dev/cdc-wdm0 --get-expected-data-format
Check what IP-mode the cellular module require:
qmicli --device=/dev/cdc-wdm0 --device-open-proxy --wda-get-data-format

to change qmi_wwan driver to use Raw-IP.
Disable the network interfaces exposed by the cellular module:
ip link set dev wwan0 down
Trigger the Raw-IP support:
echo Y > /sys/class/net/wwan0/qmi/raw_ip
Enable the network interfaces again:
ip link set dev wwan0 up

Now the data connection in the cellular module can be activated e.g. with a IPv4 type configuration on the specified APN:
qmicli --device=/dev/cdc-wdm0 --device-open-proxy --wds-start-network="ip-type=4,apn=data.tre.se" --client-no-release-cid

Once "Network started" is displayed, you can send a DHCP request on the network interface.
Please note that not all DHCP clients in Linux can support Raw-IP format, udhcpc however support this for IPv4 over Raw-IP.
udhcpc -q -f -n -i wwan0

Disconnect the data bearer and data connection over QMI by command bellow and providing the network handle and CID returned at connection activation:
qmicli --device=/dev/cdc-wdm0 --device-open-proxy --wds-stop-network=NETWORK_HANDLE --client-cid=CID

Additional useful commands:

Request module manufacturer:
qmicli --device=/dev/cdc-wdm0 --device-open-proxy --dms-get-manufacturer

Get module model:
qmicli --device=/dev/cdc-wdm0 --device-open-proxy --dms-get-model

Get firmware version:
qmicli --device=/dev/cdc-wdm0 --device-open-proxy --dms-get-revision

Get module IDs (IMEI etc.):
qmicli --device=/dev/cdc-wdm0 --device-open-proxy --dms-get-ids

Get SIM card status:
qmicli --device=/dev/cdc-wdm0 --device-open-proxy --uim-get-card-status

Recent cellular modules like Sierra Wireless EM7565 require at least libqmi V1.20. Check version with command:
qmicli --version

If the connection was successfully set up established, you now have data connectivity. A ping to a remote server using the cellular network interface can for example prove this:
ping -I wwan0 8.8.8.8

The ifconfig Linux tool can show the current details for the network interface:
ifconfig wwan0

libqmi is well integrated and supported in ModemManager tool for Linux. ModemManager again is well integrated and supported when using NetworkManager tool in Linux. Please note however that these two tools expect the cellular module interfaces to only be used by them so if you manually want to use the libqmi library or AT commands interfaces, please turn off/disable ModemManager and NetworkManager first.

The libqmi is a generic open source library for Linux systems and QMI protocol from Qualcomm, therefor there are commands only working on selected devices and not necessarily supported on the device you use, resulting in an error message.



Related products
Sierra Wireless MC7304
Sierra Wireless MC7354
Sierra Wireless MC7350
Sierra Wireless EM7305
Sierra Wireless EM7355
SimCom SIM7100E LTE SMT EU
SIMCom SIM7100A LTE SMT US
SimCom SIM7100E LTE mPCIe EU
SimCom SIM7100A LTE mPCIe US
SimCom SIM7100C LTE mPCIe China
SimCom SIM7100E LTE mPCIe SIM
SIMCom SIM7500A LTE SMT US
SIMCom SIM7500A-TE Test Mount
SIMCom SIM7500E LTE SMT EU
SIMCom SIM7500E LTE mPCIe EU
SIMCom SIM7500SA LTE mPCIe Audio
Telit LM940A11 LTE CAT-11, GPS, mPCIe
Telit LN940 A11 LTE CAT-11 M.2
Telit LN940 A9 LTE CAT-9 M.2
SIMCom SIM7600E-H LTE SMT EU
SIMCom SIM7600E-H LTE CAT-4 mPCIe EU
SIMCom SIM7600E-H LTE CAT-4 mPCIe SIM
SIMCom SIM7600A-H LTE CAT-4 mPCIe Audio
SIMCom SIM7600SA-H LTE CAT-4 mPCIe
Simcom SIM7600JC-H LTE CAT-4 mPCIe
SIMCom SIM7600A-H LTE CAT-4 mPCIe US
SIMCom SIM7600V-H LTE CAT-4 mPCIe Audio Verizon
SIMCom SIM7600SA-H LTE CAT-4 mPCIe with SIM holder
SIMCom SIM7600E LTE CAT-1 mPCIe
SIMCom SIM7600SA LTE CAT-1 mPCIe
SIMCom SIM7600E-H LTE CAT 4 -mPCIE with Audio
Telit LM960 LTE CAT-18, GPS, mPCIe
Telit LN941 LTE CAT-6, M.2
SIMCom SIM7600A-H LTE CAT-4 mPCIe-SIM
SIMCom SIM7600CE-T LTE CAT-4 mPCIe CN
Sierra Wireless MC-WP7607 LTE CAT-4 mPCIe
Telit LE910C4-NF LTE CAT-4 mPCIe
SIMCom SIM7600G-H LTE CAT-4 mPCIe
Telit LE910C4-NF LTE Cat-4 LGA
Telit LE910C4-EU LTE CAT-4 mPCIe
Telit LE910C4-EU LTE CAT-4 mPCIe SIM
Telit LE910C4-NF LTE CAT-4 mPCIe SIM
Telit LE910C4-AP LTE CAT-4 mPCIe SIM
Telit LE910C4-CN LTE CAT-4 mPCIe
Telit LE910C4-CN LTE CAT-4 mPCIe SIM
SIMCom SIM7600V-H LTE CAT-4 M.2 Verizon
SIMCom SIM7600E LTE CAT-1 SMT
SIMCom SIM7600G-H R2 LTE Cat-4 mPCIe
SIMCom SIM7600NA-H LTE Cat-4 mPCIe
Telit LE910C4-EU LTE CAT-4 LGA
Sierra Wireless MC7455 mPCIe
Sierra Wireless MC7430
Sierra Wireless EM7430 M.2
Sierra Wireless, EM7455 M.2
Telit LE910C4-LA LTE CAT-4 mPCIe
Telit LE910C4-AP LTE CAT-4 LGA
Telit LE910C4-LA LTE CAT-4 mPCIe w/ Simholder
Telit LE910C4-WWX LTE Cat-4 mPCIe
Telit LE910C4-WWX LTE Cat-4 LGA
Telit LE910C4-NFD LTE Cat-4 LGA
Question

How can we establish data connection for cellular modules in Windows 8 and Windows 10 systems?



Solution

Microsoft Windows desktop versions starting from Windows 8 and newer have built in data connection manager for WWAN, Wifi etc. that can be used to configure, control and establish the data connection of cellular module that support MBIM interface, which most cellular modules do.

The connection managers settings and controls can be found and accessed on Windows desktop start menu through the network icon (see picture).

The Cellular tab can be found in Windows system settings and if needed the connection APN details can be manually entered through "Advanced options".



Images
Windows 10 connection manager Windows 10 connection settings
Related products
Sierra Wireless MC7304
Sierra Wireless MC7354
Sierra Wireless MC7350
Sierra Wireless EM7305
Sierra Wireless EM7355
Huawei MU709s-2 LGA
Huawei MU709s-2 mPCIe
Huawei ME909s-821 mPCIe
Huawei ME909s-821 LGA
Huawei ME909s-120 mPCIe EU
Huawei MU709s-6 mPCIe
SimCom SIM7100E LTE SMT EU
SIMCom SIM7100A LTE SMT US
SimCom SIM7100E LTE mPCIe EU
SimCom SIM7100A LTE mPCIe US
SimCom SIM7100C LTE mPCIe China
SimCom SIM7100E LTE mPCIe SIM
SIMCom SIM7500A LTE SMT US
SIMCom SIM7500E LTE SMT EU
Huawei MU709s-2 LGA TTS
Welink ME3630 E1C LCC EU
Welink ME3630 E1C LTE Cat-4 mPCIe
SIMCom SIM7500E LTE mPCIe EU
Welink ME3630 U1A LCC (US)
Welink ME3630 U1A mPCIe (US)
SIMCom SIM7500SA LTE mPCIe Audio
Telit LM940A11 LTE CAT-11, GPS, mPCIe
Telit LE910-EU V2 LTE CAT-4, mPCIe
Telit LE910-SV V2 LTE CAT-4, Verizon, mPCIe
Telit LE910-NA V2 LTE CAT-4, AT T, TM, mPCIe
Telit LE910-AU V2 LTE CAT-4, Telstra, mPCIe
Telit LE910-NA1 LTE CAT-1 LGA
Telit LE910-EU1 LTE CAT-1 LGA
Telit LE910-SV1 LTE CAT-1 LGA
Telit LE910-EU V2 LTE CAT-4 LGA
Telit LE910-NA V2 LTE CAT-4 LGA
Telit LN940 A11 LTE CAT-11 M.2
Telit LN940 A9 LTE CAT-9 M.2
SIMCom SIM7600E-H LTE SMT EU
SIMCom SIM7600E-H LTE CAT-4 mPCIe EU
Welink ME3630 C1C mPCIe CN
SIMCom SIM7600E-H LTE CAT-4 mPCIe SIM
SIMCom SIM7600A-H LTE CAT-4 mPCIe Audio
Welink ME3630 E1C M.2 EU
Welink ME3630 E2C CAT-1 M.2 EU
Telit LE910-NA V2 LTE CAT-4, S.SKU, mPCIe
SIMCom SIM7600SA-H LTE CAT-4 mPCIe
Simcom SIM7600JC-H LTE CAT-4 mPCIe
SIMCom SIM7600A-H LTE CAT-4 mPCIe US
SIMCom SIM7600V-H LTE CAT-4 mPCIe Audio Verizon
SIMCom SIM7600SA-H LTE CAT-4 mPCIe with SIM holder
SIMCom SIM7600E LTE CAT-1 mPCIe
SIMCom SIM7600SA LTE CAT-1 mPCIe
SIMCom SIM7600E-H LTE CAT 4 -mPCIE with Audio
Telit LM960 LTE CAT-18, GPS, mPCIe
Telit LN941 LTE CAT-6, M.2
SIMCom SIM7600A-H LTE CAT-4 mPCIe-SIM
SIMCom SIM7600CE-T LTE CAT-4 mPCIe CN
Sierra Wireless MC-WP7607 LTE CAT-4 mPCIe
Telit LE910C4-NF LTE CAT-4 mPCIe
Telit LE910-NA V2 LTE CAT-4, S.SKU LGA
Telit LE910B1-NA S.SKU LTE Cat-1 LGA
Telit LE910C1-NS LTE CAT-1 Sprint mPCIe
Telit LE910C1-NA LTE CAT-1 AT&T LGA
Telit LE910C1-NS LTE CAT-1 Sprint LGA
SIMCom SIM7600G-H LTE CAT-4 mPCIe
Telit LE910-NA1 S.SKU LTE Cat-1 LGA
Telit LE910C1-AP
Telit LE910C1-EU LTE CAT-1 LGA
Telit LE910B1-NA
Telit LE910B1-SA
Telit LE910-AU V2
Telit LE910-SV V2
Telit LE910B4-NA
Telit LE910C4-NF LTE Cat-4 LGA
Telit LE910-SV1 LTE Cat-1 mPCIe
Telit LE910-EU1 LTE Cat-1 mPCIe
Telit LE910-JN1 LTE Cat-1 mPCIe
Telit LE910-NA1 LTE Cat-1 mPCIe
Telit LE910C1-AP LTE CAT-1 mPCIe
Telit LE910C1-EU LTE CAT-1 mPCIe
Telit LE910C4-EU LTE CAT-4 mPCIe
Telit LE910C4-EU LTE CAT-4 mPCIe SIM
Telit LE910C1-NF S.SKU LTE CAT-1 LGA
Telit LM940A11, HW Rev. 2, LTE CAT-11, GPS, mPCIe
Telit LE910C4-NF LTE CAT-4 mPCIe SIM
Telit LM960A18 LTE CAT-18 mPCIe
Telit LE910C1-EU LTE CAT-1 mPCIe SIM
Telit LE910C4-AP LTE CAT-4 mPCIe SIM
Telit LE910C4-CN LTE CAT-4 mPCIe
Telit LE910C4-CN LTE CAT-4 mPCIe SIM
Gosuncn GM500 U1A mPCIe (US)
Sierra Wireless MC7455 mPCIe
Sierra Wireless MC7430
Sierra Wireless EM7430 M.2
Sierra Wireless, EM7455 M.2
Telit LE910C4-LA LTE CAT-4 mPCIe
Telit LE910C4-LA LTE CAT-4 mPCIe w/ Simholder
Telit LE910C4-WWX LTE Cat-4 mPCIe
Question

How to collect initial diagnostics data and logs for Simcom cellular modules, needed when requesting Techship technical support?

Solution

In order to troubleshoot and solve a technical problem, we ask you to please provide information about your host system and logs from the related Simcom module when creating a technical support ticket.

Detailed problem description and in what situations it present or can be reproduced.

Describe the host system:
-Hardware (system board, peripherals...)
-Operating system and detailed versions (E.g. Windows, Linux release, kernel...)
-Drivers and driver versions

Identify the precise details of cellular module found on label:
-Model
-SKU/BOM or P/N code
(For RMA returns the IMEI number is mandatory)

If you are running on a Linux based system, please capture the terminal logs bellow:
uname -a
lsusb
lsusb -t
ifconfig -a
ls -l /dev/serial/by-id
ls -l /sys/bus/usb-serial/devices
dmesg

The logs from the cellular module firmware can be acquired by accessing the USB enumerated serial (COM) interfaces accepting AT commands. They can be named modem, AT, PC UI etc. (In Windows device manager, found under modem or serial interfaces). Send the following AT commands bellow to module and capture the output and include them when creating the the technical support ticket.

Test that you get a reply with command:
AT
Command echo enabled:
ATE1
Basic module info:
ATI
Detailed module version info:
AT+SIMCOMATI
Verbose error reporting:
AT+CMEE=2
Last error report:
AT+CEER
Firmware version:
AT+CGMR
AT+CSUB
IMEI Code:
AT+CGSN
USB endpoint configuration:
AT+CUSBPIDSWITCH?
List current configuration:
AT&V
Operational mode:
AT+CFUN?
Pin status:
AT+CPIN?
Request UE system info:
AT+CPSI?
Preferred network mode:
AT+CNMP?
Preferred band selection:
AT+CNBP?
Preferred acquisition order:
AT+CNAOP?
List network operator info:
AT+COPS?
Network registration status:
AT+CREG?
Network EPS registration status:
AT+CEREG?
Signal strength:
AT+CSQ
Packet domain attach status
AT+CGATT?
List APN details/PDP profiles:
AT+CGDCONT?
AT$QCPDPP?
PDP profiles attach status:
AT+CGACT?
Show PDP IP address:
AT+CGPADDR
AT+CGCONTRDP
RM network interface status:
AT$QCRMCALL?

The support ticket can be created after login at: https://techship.com/technical_support/

Question

How-to change the cellular modulesUSB composition mode to Mobile Broadband Interface Model (MBIM) used by Windows 8 and 10 systems for controlling and establishing data connectivity through the built-in connection manager in Windows?

Solution

This is done by sending a set of AT commands to the cellular modules Modem or AT serial interface found in Windows Device Manager. Please see list below for associated AT commands.
(For additional details, refer to the product specific software, ports, and AT commands guides found on the Techship product web pages under technical documentation tab).

After the AT commands have been received by the module and has restarted, the USB interface endpoint composition should have changed to include MBIM interface as well.

You can find the correct Serial COM port number by checking Windows Device Manager, under the Modems drop down -> (right click and see properties for selected COM port info) or under the Ports (COM & LPT) drop down.

Vendor specific commands to use:
Sierra Wireless EM74x0, MC74x0 series module:
AT!ENTERCND=”A710”
AT!USBCOMP=1,1,100D
AT!RESET
(See test command AT!USBCOMP=? for full usage description)

Sierra Wireless EM75xx, EM74x1, MC74x1 series module:
AT!ENTERCND=”A710”
AT!USBCOMP=1,3,100D
AT!RESET
(See test command AT!USBCOMP=? for full usage description)

Sierra Wireless EM73xx, MC73xx series module:
AT!ENTERCND=”A710”
AT!UDUSBCOMP=8
AT!RESET

Simcom SIM7100, SIM7500 and SIM7600 series modules:
AT+CUSBPIDSWITCH=9003,1,1
AT+CRESET

ZTE Welink ME3630 series:
AT+ZSWITCH=8
AT+ZRST

Telit LE910C1 and LE910C4 series:
AT#USBCFG=2
AT#REBOOT

Telit LM940 and LM940A11:
AT#USBCFG=2
AT#REBOOT

Telit LM960 and LM960A18:
AT#USBCFG=2
AT#REBOOT

Telit LE910 V2 series:
AT#USBCFG=3
AT#REBOOT

On Huawei and Telit LN94x series modules the USB mode changing is done automatically by the modules Windows drivers based on current Windows version.

Please be aware that some USB mode configurations do not include any serial interfaces, making it impossible to revert the changes using AT commands.

Related products
Sierra Wireless MC7304
Sierra Wireless MC7354
Sierra Wireless MC7350
Sierra Wireless EM7305
Sierra Wireless EM7355
Huawei MU709s-2 LGA
Huawei MU709s-2 mPCIe
Huawei ME909s-821 mPCIe
Huawei ME909s-821 LGA
Huawei ME909s-120 mPCIe EU
Huawei ME909s-120 LGA EU
Huawei MU709s-6 mPCIe
SimCom SIM7100E LTE SMT EU
SIMCom SIM7100A LTE SMT US
SimCom SIM7100E LTE mPCIe EU
SimCom SIM7100A LTE mPCIe US
SimCom SIM7100C LTE mPCIe China
Huawei ME909s-120 LGA dev.kit
SimCom SIM7100E LTE mPCIe SIM
ZTE ME3610 E1A LCC
Techship Starter kit Huawei ME909s
SIMCom SIM7500A LTE SMT US
SIMCom SIM7500E LTE SMT EU
Huawei MU709s-2 LGA TTS
Welink ME3630 E1C LCC EU
Welink ME3630 E1C LTE Cat-4 mPCIe
SIMCom SIM7500E LTE mPCIe EU
Welink ME3630 U1A LCC (US)
Welink ME3630 U1A mPCIe (US)
SIMCom SIM7500SA LTE mPCIe Audio
Telit LM940A11 LTE CAT-11, GPS, mPCIe
Telit LE910-EU V2 LTE CAT-4, mPCIe
Telit LE910-SV V2 LTE CAT-4, Verizon, mPCIe
Telit LE910-NA V2 LTE CAT-4, AT T, TM, mPCIe
Telit LE910-AU V2 LTE CAT-4, Telstra, mPCIe
Telit LE910-NA1 LTE CAT-1 LGA
Telit LE910-EU1 LTE CAT-1 LGA
Telit LE910-SV1 LTE CAT-1 LGA
Telit LE910-EU V2 LTE CAT-4 LGA
Telit LE910-NA V2 LTE CAT-4 LGA
SIMCom SIM7600E-H LTE SMT EU
SIMCom SIM7600E-H LTE CAT-4 mPCIe EU
Welink ME3630 C1C mPCIe CN
SIMCom SIM7600E-H LTE CAT-4 mPCIe SIM
SIMCom SIM7600A-H LTE CAT-4 mPCIe Audio
Welink ME3630 E1C M.2 EU
Welink ME3630 E2C CAT-1 M.2 EU
Telit LE910-NA V2 LTE CAT-4, S.SKU, mPCIe
SIMCom SIM7600SA-H LTE CAT-4 mPCIe
Simcom SIM7600JC-H LTE CAT-4 mPCIe
SIMCom SIM7600A-H LTE CAT-4 mPCIe US
SIMCom SIM7600V-H LTE CAT-4 mPCIe Audio Verizon
SIMCom SIM7600SA-H LTE CAT-4 mPCIe with SIM holder
SIMCom SIM7600E LTE CAT-1 mPCIe
SIMCom SIM7600SA LTE CAT-1 mPCIe
SIMCom SIM7600E-H LTE CAT 4 -mPCIE with Audio
Telit LM960 LTE CAT-18, GPS, mPCIe
SIMCom SIM7600A-H LTE CAT-4 mPCIe-SIM
SIMCom SIM7600CE-T LTE CAT-4 mPCIe CN
Telit LE910C4-NF LTE CAT-4 mPCIe
Telit LE910-NA V2 LTE CAT-4, S.SKU LGA
Telit LE910B1-NA S.SKU LTE Cat-1 LGA
Telit LE910C1-NS LTE CAT-1 Sprint mPCIe
Telit LE910C1-NA LTE CAT-1 AT&T LGA
Telit LE910C1-NS LTE CAT-1 Sprint LGA
SIMCom SIM7600G-H LTE CAT-4 mPCIe
Telit LE910-NA1 S.SKU LTE Cat-1 LGA
Telit LE910-JN1 LTE Cat-1 LGA
Telit LE910C1-AP
Telit LE910C1-EU LTE CAT-1 LGA
Telit LE910B1-NA
Telit LE910B1-SA
Telit LE910-AU V2
Telit LE910-SV V2
Telit LE910B4-NA
Telit LE910C4-NF LTE Cat-4 LGA
Telit LE910-SV1 LTE Cat-1 mPCIe
Telit LE910-EU1 LTE Cat-1 mPCIe
Telit LE910-JN1 LTE Cat-1 mPCIe
Telit LE910-NA1 LTE Cat-1 mPCIe
Telit LE910C1-AP LTE CAT-1 mPCIe
Telit LE910C1-EU LTE CAT-1 mPCIe
Telit LE910C4-EU LTE CAT-4 mPCIe
Telit LE910C4-EU LTE CAT-4 mPCIe SIM
Telit LE910C1-NF S.SKU LTE CAT-1 LGA
Telit LM940A11, HW Rev. 2, LTE CAT-11, GPS, mPCIe
Telit LE910C4-NF LTE CAT-4 mPCIe SIM
Telit LM960A18 LTE CAT-18 mPCIe
Telit LE910C1-EU LTE CAT-1 mPCIe SIM
Telit LE910C1-AP LTE CAT-1 mPCIe SIM
Telit LE910C1-NF LTE CAT-1 mPCIe
Telit LE910C4-AP LTE CAT-4 mPCIe SIM
Telit LE910C4-CN LTE CAT-4 mPCIe
Telit LE910C4-CN LTE CAT-4 mPCIe SIM
Gosuncn GM500 U1A mPCIe (US)
SIMCom SIM7600V-H LTE CAT-4 M.2 Verizon
Sierra Wireless EM7411 NAM
Sierra Wireless MC7411 NAM
Sierra Wireless EM7421 EMEA/APAC
Sierra Wireless MC7421 EMEA/APAC
Sierra Wireless EM7431 Japan
Sierra Wireless MC7431 Japan
Telit LE910C1-SA CAT-1 LGA
SIMCom SIM7600E LTE CAT-1 SMT
Telit LE910C1-NF S.SKU LTE CAT-1 mPCIe SIM
SIMCom SIM7600G-H R2 LTE Cat-4 mPCIe
SIMCom SIM7600NA-H LTE Cat-4 mPCIe
Sierra Wireless MC7455 mPCIe
Sierra Wireless MC7430
Sierra Wireless EM7565 M.2
Sierra Wireless EM7430 M.2
Sierra Wireless EM7511 M.2
Sierra Wireless, EM7455 M.2
Telit LE910C4-LA LTE CAT-4 mPCIe
Telit LE910C4-LA LTE CAT-4 mPCIe w/ Simholder
Telit LE910C4-WWX LTE Cat-4 mPCIe
Question

How to use NetworkManager and ModemManager in Linux to automatically establish a cellular data connection and configure IP details?

Solution

Using NetworkManager and ModemManager in Linux to automatically establish a connection and configure IP details

In this FAQ we will show how to set up NetworkManager to automatically configure, establish the cellular data connection in your system.

NetworkManager and ModemManager are open source tool for Linux to manage several types of networks and interfaces such as ethernet, wifi, etc. It can also manage cellular WWAN interfaces through the ModemManager tool.
It is hosted by the Freedesktop.org community and driven by Aleksander Morgado and other contributors. please visit https://wiki.gnome.org/Projects/NetworkManager and https://www.freedesktop.org/wiki/Software/ModemManager/ for latest information, source code, API reference manuals, debugging tips, contribution, mailing list etc.

ModemManager is capable of communicating over several types of device control channels such as QMI/RMNET, MBIM, MODEM / AT command etc. But support for vendor proprietary or out-of-kernel drivers are none or very limited. Such drivers are gobinet, simcom_wwan and other drivers provided by the vendors directly.

Many Linux distributions have NetworkManager and ModemManager pre-installed or they can typically easily be installed through the systems package manager.
In Ubuntu for example apt can install it for you by command if not already installed:
apt install network-manager

Check with commands below that you have both tools installed in system and their versions.
NetworkManager -V
ModemManager -V

ModemManager (and NetworkManager) are continuously developed for better compatibility with the cellular devices, therefore it is recommend to use a recent version of the tools and in case of problem situations, evaluate the latest versions from source and check the mailing list archives for possible discussions on the problem experienced.

Keep in mind that NetworkManager and ModemManager projects are not directly developed or driven by the cellular device vendors and the compatibility with the device you aim to use can be limited. Some vendors contribute with code to make their devices fully compatible, while others don't. Many cellular devices can be set to expose standardized types of USB network interface and control channel such as MBIM interface by USB-IF or the Qualcomm proprietary interface QMI that ModemManager will try to identify, and often manage to work successfully with but there are exceptions also.

Both NetworkManager and ModemManager have command line interfaces (nmcli and mmcli respectively) where you can interact with the management tools.

Relate to the following FAQ if you want more details for using ModemManager only to configure and control the cellular device but manually establish, maintain the connection and network interface IP address details.
How-to guide: control and set up a data connection in Linux using ModemManager as connection manager?

Have ModemManager list all the cellular device it has detected. Here we use the Alcatel IK41 series with MBIM interface in this example:
mmcli --list-modems
/org/freedesktop/ModemManager1/Modem/0 [Alcatel] Mobilebroadband

General details and status of them modem can be listed with "--modem" option.
mmcli --modem=0
-----------------------------
General | dbus path: /org/freedesktop/ModemManager1/Modem/0
| device id: 998e478c5b14c75e16bffe6abaacabef22fb2f5b
-----------------------------
Hardware | manufacturer: Alcatel
| model: Mobilebroadband
| firmware revision: MPSS.JO.2.0.2.c1.7-00004-9607_
| carrier config: default
| h/w revision: 0
| supported: gsm-umts, lte
| current: gsm-umts, lte
| equipment id:
-----------------------------
System | device: /sys/devices/pci0000:00/0000:00:14.0/usb3/3-1
| drivers: option1, cdc_mbim
| plugin: Generic
| primary port: cdc-wdm0
| ports: cdc-wdm0 (mbim), ttyUSB0 (at), ttyUSB2 (at), wwan0 (net),
| ttyUSB1 (qcdm)
-----------------------------
Status | lock: sim-pin
| unlock retries: sim-pin (3)
| state: locked
| power state: on
| signal quality: 0% (cached)
-----------------------------
Modes | supported: allowed: 2g; preferred: none
| allowed: 3g; preferred: none
| allowed: 4g; preferred: none
| allowed: 2g, 3g; preferred: 3g
| allowed: 2g, 3g; preferred: 2g
| allowed: 2g, 4g; preferred: 4g
| allowed: 2g, 4g; preferred: 2g
| allowed: 3g, 4g; preferred: 3g
| allowed: 3g, 4g; preferred: 4g
| allowed: 2g, 3g, 4g; preferred: 4g
| allowed: 2g, 3g, 4g; preferred: 3g
| allowed: 2g, 3g, 4g; preferred: 2g
| current: allowed: 2g, 3g, 4g; preferred: 2g
-----------------------------
Bands | supported: egsm, dcs, pcs, g850, utran-1, utran-8, eutran-1, eutran-3,
| eutran-7, eutran-8, eutran-20, eutran-28
| current: egsm, dcs, pcs, g850, utran-1, utran-8, eutran-1, eutran-3,
| eutran-7, eutran-8, eutran-20, eutran-28
-----------------------------
IP | supported: ipv4, ipv6, ipv4v6
-----------------------------
SIM | dbus path: /org/freedesktop/ModemManager1/SIM/0

Check that the cellular device is managed by NetworkManager by not having state "unmanaged" listed for it.
nmcli device status
DEVICE TYPE STATE CONNECTION
cdc-wdm0 gsm disconnected --
enp3s0 ethernet unmanaged --
lo loopback unmanaged --

Now you should create a connection profile in NetworkManager for your specific network carrier and SIM card with the "nmcli connection add" command:
For example:
nmcli connection add type gsm ifname '*' con-name '3-sweden' apn 'data.tre.se' connection.autoconnect yes gsm.pin 0000

- type is gsm for all typical cellular connections unless it is of cdma type.
- ifname is the control interface name, in this case cdc-wdm0, wildcard can be used also to have it autoselect.
- con-name is the profile name you want to give it.
- apn is provided by your network carrier and tells the modem what attach point it should use for the data connection.
- connection.autoconnect set to yes will make NetworkManager always try to auto connect and maintain this profile connection.
- gsm.pin lets you provide a pin code for the SIM card, that NetworkManager will try to use if PIN check is enabled for SIM card.

There are several additional commands and attributes available such as username and password settings for the APNs etc. Refer to the NetworkManager help and manual pages for full details on the commands.

If successful you should receive a reply similar to this one:
Connection '3-sweden' (cad6fcbf-2cb1-4796-b7e6-67b9f9635aef) successfully added.

You can check the status now by command:
nmcli device status
DEVICE TYPE STATE CONNECTION
cdc-wdm0 gsm connected 3-sweden
enp3s0 ethernet unmanaged --
lo loopback unmanaged --

Where connected should be listed as state if the connection establishment was successful.

If the connection is not successful or you want more details about the device and connection you can check commands:

You can list the current status with command:
nmcli radio
WIFI-HW WIFI WWAN-HW WWAN
enabled enabled enabled enabled

nmcli device show cdc-wdm
GENERAL.DEVICE: cdc-wdm0
GENERAL.TYPE: gsm
GENERAL.HWADDR: (unknown)
GENERAL.MTU: 1500
GENERAL.STATE: 100 (connected)
GENERAL.CONNECTION: 3-sweden
GENERAL.CON-PATH: /org/freedesktop/NetworkManager/ActiveConnection/18
IP4.ADDRESS[1]: 2.68.73.130/30
IP4.GATEWAY: 2.68.73.129
IP4.ROUTE[1]: dst = 2.68.73.128/30, nh = 0.0.0.0, mt = 700
IP4.ROUTE[2]: dst = 0.0.0.0/0, nh = 2.68.73.129, mt = 700
IP4.DNS[1]: 80.251.201.177
IP4.DNS[2]: 80.251.201.178
IP6.ADDRESS[1]: 2a02:aa1:1017:6d11:1060:3dff:feac:e92f/64
IP6.ADDRESS[2]: 2a02:aa1:1017:6d11:6474:7254:7b72:eb09/64
IP6.GATEWAY: 2a02:aa1:1017:6d11:21e6:9049:6cfb:8ac3
IP6.ROUTE[1]: dst = ff00::/8, nh = ::, mt = 256, table=255
IP6.ROUTE[2]: dst = 2a02:aa1:1017:6d11::/64, nh = ::, mt = 700
IP6.ROUTE[3]: dst = ::/0, nh = fe80::21e6:9049:6cfb:8ac3, mt = 1024
IP6.ROUTE[4]: dst = 2a02:aa1:1017:6d11::/64, nh = ::, mt = 256
IP6.ROUTE[5]: dst = ::/0, nh = 2a02:aa1:1017:6d11:21e6:9049:6cfb:8ac3, mt = 700
IP6.DNS[1]: 2a02:aa0::55
IP6.DNS[2]: 2a02:aa0::56

nmcli connection show
NAME UUID TYPE DEVICE
3-sweden e946017f-2e9c-477b-89ad-4c31e7331d65 gsm cdc-wdm0

Ifconfig should now show the related IP address details already set to the network interface by NetworkManager:
ifconfig
wwan0: flags=4291 mtu 1500
inet 2.68.73.130 netmask 255.255.255.252 broadcast 2.68.73.131
inet6 2a02:aa1:1017:6d11:6474:7254:7b72:eb09 prefixlen 64 scopeid 0x0
inet6 2a02:aa1:1017:6d11:1060:3dff:feac:e92f prefixlen 64 scopeid 0x0
ether 12:60:3d:ac:e9:2f txqueuelen 1000 (Ethernet)
RX packets 186 bytes 10886 (10.8 KB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 5 bytes 480 (480.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

You can now for example test the connection over the network interface by sending ping requests.
Testing IPV4 connection:
ping -4 -I wwan0 8.8.8.8
PING 8.8.8.8 (8.8.8.8) from 2.68.73.130 wwan0: 56(84) bytes of data.
64 bytes from 8.8.8.8: icmp_seq=1 ttl=118 time=55.8 ms
64 bytes from 8.8.8.8: icmp_seq=2 ttl=118 time=45.4 ms
64 bytes from 8.8.8.8: icmp_seq=3 ttl=118 time=42.9 ms
--- 8.8.8.8 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2003ms
rtt min/avg/max/mdev = 42.918/48.053/55.845/5.601 ms

Testing IPV6 connection: (if your cellular device, network subscription and APN supports it)
ping -6 -I wwan0 2600::
PING 2600::(2600::) from 2a02:aa1:1017:6d11:1060:3dff:feac:e92f wwan0: 56 data bytes
64 bytes from 2600::: icmp_seq=1 ttl=46 time=172 ms
64 bytes from 2600::: icmp_seq=2 ttl=46 time=171 ms
64 bytes from 2600::: icmp_seq=3 ttl=46 time=169 ms
64 bytes from 2600::: icmp_seq=4 ttl=46 time=168 ms
--- 2600:: ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3004ms
rtt min/avg/max/mdev = 167.921/170.037/172.272/1.651 ms

The connection is successful and automatic reconnect is working when testing to unplug and plug in the device again.
For additional configurations, commands and available attributes, please relate to the manual pages for NetworkManager and ModemManager.

Troubleshooting logs:
NetworkManager and ModemManager write log messages to the Linux syslog file /var/log/syslog.
In case of problems with establishing a cellular data connection, please copy the logfile after the problem have appeared and include it in a Techship technical support ticket.

In some situations more detailed debug logs are needed, these can be acquired by changing the log levels for NetworkManager and ModemManager and run them manually.

To capture debug logs, please first disable and stop the normal services:
systemctl stop NetworkManager ModemManager
systemctl disable NetworkManager ModemManager

Run them manually in background with debug level set:
/usr/sbin/ModemManager --log-level=DEBUG &> /dev/null &
/usr/sbin/NetworkManager --log-level=DEBUG &

Reproduce the cellular data connection problem.
Once completed, kill the processes:
killall -TERM NetworkManager ModemManager

Copy the relate messages in syslog to a mm-nm-sys-debug.log logfile:
grep -E 'ModemManager|NetworkManager|systemd|dbus-daemon|dhclient' /var/log/syslog > mm-nm-sys-debug.log

Activate and start the services again:
systemctl enable NetworkManager ModemManager
systemctl start NetworkManager ModemManager

Include the mm-nm-sys-debug.log in a technical support ticket at Techship.com where you describe the issue in details and include other relevant information also such as kernel version, ModemManager and NetworkManager versions, dmesg log etc.
