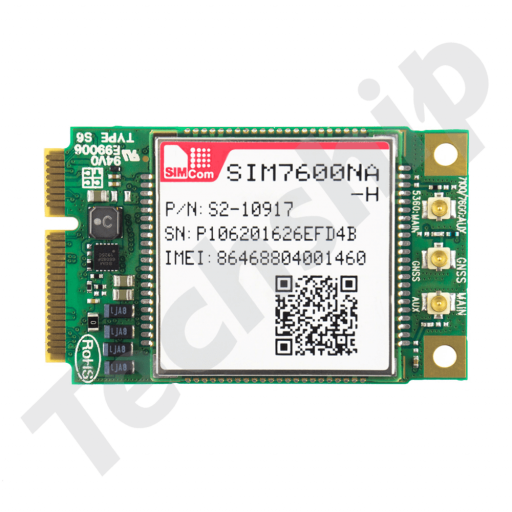

SIMCom SIM7600NA-H mPCIe

Article Number: 11157
Supplier number: S2-1094Q

The SIMCom SIM7600NA-H mPCIe is Multi-Band LTE-FDD module solution in a mPCIe form factor. SIM7600NA-H is a LTE CAT4 module with support of up to 150Mbps downlink data transfer.

With abundant application capability like TCP/UDP/FTP/FTPS/HTTP/HTTPS/DNS, the module provides much flexibility and ease of integration for customer's application.

SIM7600NA-H is a single SKU module for the North American market.

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

Do you need offline data on this product?

Download datasheet

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
MIMO (Multiple-Input Multiple-Output)
Yes
LTE Bands
B2 (1900)
B4 (AWS)
B12 (700ac)
B13 (700c)
B14 (700PS)
B5 (850)
B25 (1900)
B26 (US 850 Ext)
B41 (TDD 2500)
B66 (AWS-3)
B71 (600)
Manufacturer
SIMCom
LTE Region
North America
Form Factor
mPCIe
Technology
LTE - cat 4
Antenna Interface
IPEX MHF/U.FL
GPS
Yes
GNSS technology
GPS
GLONASS
Max DL Speed
150 Mbps
Max UL Speed
50 Mbps
Chipset
Qualcomm
Operating Temperature Range
-40 °C – 85 °C
Driver Support
Windows 7
Linux
Android
Windows
Windows 8
Windows 8.1
Windows 10
Interface
USB 2.0
Voice Call Support
Yes
GNSS antenna support
Passive
Active
SIM interface
Through miniPCIe connector
Audio interface
Digital PCM signal input/output in socket
Digital PCM signal over USB interface

This document describes the electronic specifications, RF specifications, interfaces, mechanical characteristics and testing results of the SIMCom module. With the help of this document and other software application notes/user guides, users can understand and use module to design and develop applications quickly.

Download

Uploaded at
2020-07-20 14:16:42
Last updated
2020-07-20 14:16:42
Version
R1.03
Related products
SIMCom SIM7600NA-H mPCIe
SIMCom SIM7600G-H R2 mPCIe
SIMCom SIM7600G-H LTE CAT-4 mPCIe

This document describes the electronic specifications, RF specifications, interfaces, mechanical characteristics and testing results of the SIMCom SIM7600E and SIM7600E-H module. With the help of this document and other software application notes/user guides, users can understand and use module to design and develop applications quickly.

Download

Document summarizing and describing the GPS systems epoch roll over dates in Simcom products GPS trackers and how to take precaution for it.

Download

Uploaded at
2020-01-07 14:50:05
Last updated
2020-01-07 14:50:05
Version
191119
Related products
SIMCom SIM7070E Development Kit
SIMCom SIM7912G LTE CAT-12 M.2
SIMCom SIM7070E CAT-M/NB2
SIMCOM SIM8200EA-M.2 5G
SIMCom SIM7600G-H LTE CAT-4 mPCIe
SIMCom SIM7000A CAT-M/NB-IoT mPCIe
SIMCom SIM7906E LTE CAT-6 mPCIe
SIMCom SIM7906E LTE CAT-6 M.2
SIMCom SIM7000A CAT-M/NB-IoT SMT AT&T
SIMCom SIM7000A CAT-M/NB-IoT SMT Verizon
SIMCom SIM7020G-SUB KIT
SIMCom SIM7600A-H LTE CAT-4 mPCIe-SIM
SIMCom SIM7600E Development Kit
SIMCom SIM7000G CAT-M/NB-IoT/GSM miniPCIe
SIMCom SIM7000E CAT-M/NB-IoT PCIE
SIMCom SIM7000G Development Kit
SIMCom SIM7600E-H LTE CAT 4 -mPCIE with Audio
SIMCom SIM7600SA LTE CAT-1 mPCIe
SIMCom SIM7600E LTE CAT-1 mPCIe
SIMCom SIM7600SA-H LTE CAT-4 mPCIe with SIM holder
SIMCom SIM7020E NB-IoT SMT
SIMCom SIM7000G
SIMCom SIM7020E-SUB KIT Developer kit
SIMCom SIM7600V-H LTE CAT-4 mPCIe Audio Verizon
SIMCom SIM7600A-H LTE CAT-4 mPCIe US
SIMCom SIM7600SA-H LTE CAT-4 mPCIe
SIMCom SIM7600A-H LTE CAT-4 mPCIe Audio
SIMCom SIM7600E-H LTE CAT-4 mPCIe SIM
SIMCom SIM7600E-H LTE CAT-4 mPCIe EU
SIMCom SIM7600E-H LTE SMT EU
SIMCom SIM7000E Development Kit
SIMCom SIM7000E CAT-M/NB-IoT SMT
SIMCom SIM7500SA LTE mPCIe Audio
SIMCom SIM5320A mPCIe
SIMCom SIM7500E LTE mPCIe EU
SIMCom SIM868 GSM/GNSS SMT
SIMCom SIM7500E Development Kit
SIMCom SIM7500E LTE SMT EU
SIMCom SIM7500A Development kit
SIMCom SIM5300E HSPA SMT
SIMCom SIM7500A LTE SMT US
SIMCom SIM28M development kit
SIMCom SIM68M development kit
SIMCom SIM39EAU development kit
SIMCom SIM33ELA development kit
SimCom SIM5360E-mPCIe SIM
Simcom SIM33ELA
Simcom SIM39EAU
SIMCom SIM68M GNSS SMT
Simcom SIM28M
SimCom SIM5360E HSPA+ mPCie Audio/GPS
SimCom SIM7100E LTE mPCIe SIM
SIMCom SIM808 development kit
SIMCom SIM800F development kit
SimCom SIM800F GSM SMT
SimCom SIM900B development kit
Simcom SIM900 development kit
SimCom SIM800C development kit
SimCom Connector to SIM900B
SimCom SIM800H development kit
SimCom SIM808 GSM/GPS SMT
SimCom SIM7230 LTE mPCIe EU
SimCom SIM7100C LTE mPCIe China
SimCom SIM7100A LTE mPCIe US
SimCom SIM7100E LTE mPCIe EU
SimCom SM7100A LTE SMT US
SimCom SIM7100E LTE SMT EU
SimCom SIM5360E HSPA+ mPCie EU
SimCom SIM900B GSM B2B
SimCom SIM800C GSM SMT
SimCom SIM800H GSM LGA
SimCom SIM900 GSM SMT
SIMCom SIM7070E mPCIe
SIMCom SIM7600NA-H mPCIe

This archive contains the SIMCOM:
SIM7X00 Series_GPIO_Application Note_V1.00.pdf
SIM7X00 Series_GPS_Application Note_V1.00.pdf
SIM7X00 Series_SAT_Application Note_V1.00.pdf
SIM7X00 Series_Sleep Mode_Application Note_V1.00.pdf
SIM7X00 Series_SMS_Application Note_V1.00.pdf
SIM7X00 Series_TCPIP_Application Note_V1.00.pdf
SIM7X00 Series_UART_Application Note_V1.00.pdf
SIM7X00_Audio_Application_Note_V1.00.pdf
SIM7100_SIM7500_SIM7600 Series_LBS_Application Note_V1.00.pdf
SIM7100_SIM7500_SIM7600 Series_UIM HOT SWAP_Application Note_V1.01.pdf
SIM7100_SIM7500_SIM7600 Series_USB AUDIO_Application Note_V1.03.pdf
SIM7100_SIM7500_SIM7600_Sleep Mode_Application Note_V1.01.pdf
SIM7100_SIM7600M22 Series_TTS_Application Note_V1.02.pdf
SIM7500_SIM7600 Series_Delta_Package_Update_Application Note_V1.02.pdf
SIM7500_SIM7600_SIM7800 Series_FTPS_AT Command Manual_V1.00.pdf
SIM7500_SIM7600_SIM7800 Series_HTTP_AT Command Manual_V1.00.pdf
SIM7500_SIM7600_SIM7800 Series_MQTT_AT Command Manual_V1.00.pdf
SIM7500_SIM7600_SIM7800 Series_SSL_AT Command Manual_V1.00.pdf
SIM7500_SIM7600_SIM7800 Series_TCPIP_AT Command Manual_V1.00.pdf
SIM7600 Hardware Design Notice V1.02.pdf
SIM7600 Series_HSIC_LAN_Application_Note_V1.00.pdf
SIM7600_USB-OTG_Application_Note_V1.00.pdf
SIM7600M22_MIFI_Application Note_V1.00.pdf
SIM7600M22_MIFI_RTL_Application Note_V1.00.pdf

Download

This archive contains the Windows operating system drivers for the SIM7000, SIM7100, SIM7230, SIM7500, SIM7600, SIM7800 series Qualcomm chipset based cellular modules. Please refer to the installation instructions document for USB mode selection details.

Download

Question

How to use the SIMCom SIM7600 with my MikroTik board running RouterOS?

Solution

It is recommended to have a generic mPCIe to USB adapter available to easily configure, firmware update and troubleshoot the module if needed. Such as the following adapter: https://techship.com/products/mpcie-to-usb-adapter-card/.

First, make sure that your MiktroTik board is compatible with the module by comparing the boards pin-out configuration with the modules (found in the hardware design guide).

If you have not used RouterOS or WinBox before, please refer to this guide from MikroTiks wiki page for first time start up: https://help.mikrotik.com/docs/display/ROS/First+Time+Configuration.

Make sure RouterOS is running at least version 6.x. In order to upgrade or downgrade, please follow these instructions: https://help.mikrotik.com/docs/display/ROS/Upgrading+and+installation.

Open the RouterOS terminal. Change the boot delay time to make sure the module is fully booted before the board tries to connect. This is done by going to:
/system routerboard settings
and changing "boot-delay" to 15 (seconds).

In order to use your module in RouterOS the network interface need to be set to Rmnet mode (this is the default mode, so next step may be skipped). This is done by using AT commands. If you are unsure on how to send AT commands to your module, please follow this FAQ: https://techship.com/faq/how-can-i-send-at-commands-to-a-cellular-module/.

To change the network interface to Rmnet mode send the following AT command:
AT+CUSBPIDSWITCH=9001,1,1

The modem device will reset automatically and new USB composition is applied from the next boot up time, if this command is done successfully. Hence, in order to use "AT+CUSBPIDSWITCH?" to double check that the new network interface was set, you may need to change the COM port.

Now, connect your module to your MikroTik board.

Your module should now appear in the Interface list found under "Interfaces > LTE".
