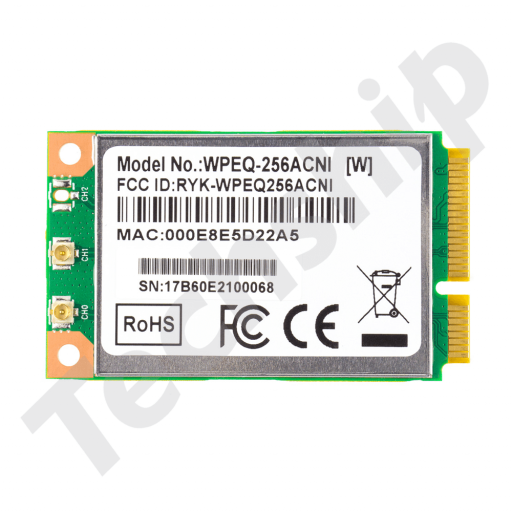

Sparklan WPEQ-256ACNI

Article Number: 10403
Brand: SparkLAN
Supplier number: 256ACNI

SparkLAN WPEQ-256ACNI is an 802.11ac/b/g/n Dual-Band Mini PCI express module based on Qualcomm Atheros QCA9892-BR4B chipset. It supports 2T2R (2x2) technology, which runs up to 867Mbps. The WPEQ-256ACNI supports 20/40/80MHz and 256-QAM to maximize bandwidth efficiency.

Adopting the latest 802.11ac solution, WPEQ-256ACNI is ideal for next-generation high throughput enterprise networking solution.

Incorporated with advanced security encryption, such as WEP, WPA, WPA2, WPS, and 802.1x, it helps prevent users’ devices from malicious attacks.

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

We suggest Sparklan WPEQ-256ACNRBI
as replacement for this module.

Do you need offline data on this product?

Download datasheet

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
AP/Client Mode
AP mode
Wifi Standard
802.11a/b/g/n/ac
Wifi Frequency
2.4 GHz
5 GHz
Form Factor
mPCIe - full size
Data Streams
2T2R MIMO
Antenna Connectors
IPEX MHF/U.FL
Max output power
18 dBm
Chipset
Qualcomm
Atheros
QCA9892
Operating Temperature Range
-40 °C – 85 °C
Driver Support
Linux
Linux kernel 3.11 →
Width
29.85 mm
Data Interface
PCIe
Length
50.8 mm
Certification
FCC
CE RED
