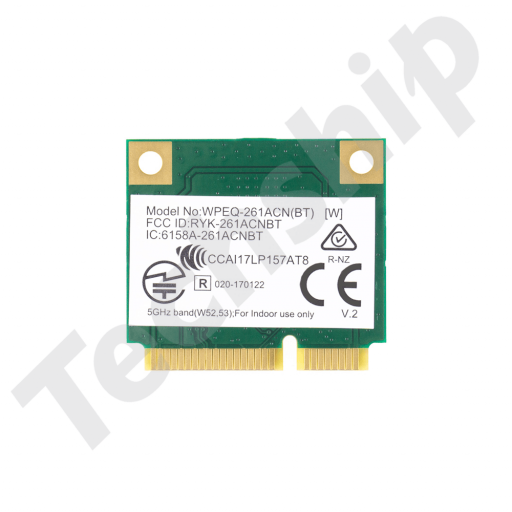

Sparklan WPEQ-261ACN(BT)

Article Number: 10668
Brand: SparkLAN
Supplier number: WPEQ-261 ACN (BT) V2

Sparklan WPEQ-261ACN (BT) is a Wi-Fi and Bluetooth combo solution that supports 2x2 multi-user multiple input, multiple output (MU-MIMO) with two spatial streams IEEE802.11 ac/abgn WLAN standards and Bluetooth 4.2+HS.

WPEQ-261ACN(BT) is dual band AC on 2.4GHz+5GHz and incorporates the latest Bluetooth 4.2 The maximum download speeds are 300Mbps on N networks and 867Mbps on AC network. WPEQ-261ACN(BT) integrates Bluetooth transmission technology for voice and data transfers between short range devices. WPEQ-261ACN(BT) is designed for any wireless enabled devices with Half Mini PCIe slot.

Applications include medical devices, security systems, robots, video streaming, PoS, digital signs, gaming machines, Medical equipment, tablet PC’s, handheld devices, thin client devices, and many more.

Recommended Linux Kernel 4.0+ for an easy implementation

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

Do you need offline data on this product?

Download datasheet

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
AP/Client Mode
Client mode
Soft AP mode (limited number of clients)
Wifi Standard
802.11a/b/g/n/ac/ac wave 2
Wifi Frequency
2.4 GHz
5 GHz
Bluetooth Standard
Bluetooth 4.2
Form Factor
mPCIe - half size
Data Interface
Wifi: PCIe / BT:USB
Data Streams
2T2R MIMO
Driver Support
Windows 10
In-kernel ath10k
Windows 8.1
Windows 8
Windows 7
Linux kernel 4.0 →
Max output power
18 dBm
Chipset
Qualcomm
Atheros
QCA6174A-5
Certification
CE RED
FCC
IC
RoHS
REACH
NOM
ASNZS
MIC
NCC
KC
ANATEL
Operating Temperature Range
-40 °C – 70 °C
Antenna Connectors
IPEX MHF-4
Datasheet for Sparklan WPEQ-261ACN(BT) V2

Download

Uploaded at
2017-10-27 18:40:51
Last updated
2022-08-23 11:32:56
Version
1.5
Related products
Sparklan WPEQ-261ACN(BT)

Driver package archive for Sparklan modules based on Qualcomm QCA6174A-5

Download

Uploaded at
2018-03-07 19:14:07
Last updated
2023-11-10 11:28:49
Requirements
Microsoft Windows 7
Microsoft Windows 8, 8.1
Microsoft Windows 10
Related products
Sparklan WPEQ-261ACN(BT)
Sparklan WPEQ-261ACNI(BT)
Sparklan WNFQ-261ACNI(BT)
Sparklan WNFQ-262ACNI(BT)
SparkLAN WPEA-251ACNI(BT)
Sparklan WNFQ-258ACN(BT)
Sparklan WNFQ-255ACN(BT)
Sparklan WCBN-808A Q2 .11ac M.2
This archive contains the SparkLan WPEQ-261ACN(BT) Windows 8+, Windows 10 Bluetooth Drivers

Download

Uploaded at
2018-03-07 19:17:25
Last updated
2018-03-07 19:17:26
Requirements
Microsoft Windows 8, 8.1
Microsoft Windows 10
Related products
Sparklan WPEQ-261ACN(BT)
This archive contains the SparkLan WPEQ-261ACN(BT) Windows 7 Bluetooth Drivers

Download

Uploaded at
2018-03-07 19:15:41
Last updated
2018-03-07 19:15:41
Requirements
Microsoft Windows 7
Related products
Sparklan WPEQ-261ACN(BT)
Question

How can I control my Bluetooth devices on linux?

Solution

The easiest way of controlling Bluetooth devices on a Linux host is by using the Bluez package which can be found at the below link: https://github.com/bluez/bluez

It is natively supported from kernel 4.4 and by installing the bluez-utils package you can use the command line tool, bluetoothctl for configuring and pairing your Bluetooth.

Make sure that the bluetooth.service is running on your host device which can be checked with the command,

$ sudo systemctl status bluetooth.service

and started with,

$ sudo systemctl start bluetooth.service

In addition, make sure that the drivers are properly installed and loaded. Sometimes, WiFi drivers only include drivers for WLAN over PCI and an additional set of drivers are needed for Bluetooth to function in parallell over USB.

The package can support earlier kernel verision by backporting the package which supports the below basic features:

3.13 basic bluetooth classic and LE functionality

3.10 basic bluetooth classic

For basic troubleshooting, the Arch Linux wiki has a thorough guide at the following link:

https://wiki.archlinux.org/title/bluetooth#Troubleshooting

Question

What diagnostics information is needed when troubleshooting WiFi?

Solution

In order to ease the troubleshooting of technical problems and understand your end-product or application and its usage scenario we ask you to please provide the following information when creating a technical support ticket at: techship.com/technical_support/

Please give a detailed problem description and in what precise circumstances it is present.

Describe the host system:

-Hardware (system board, processor architecture, other peripheral devices...)

-Operating system with detailed versions (E.g. Windows version and build, Linux distribution, kernel version)

-Drivers used and versions (Linux: out-of-tree vendor drivers or in-kernel drivers?)

-Connection script and connection settings, including e.g. hostapd configuration

Details from the Wi-Fi module label:

-Model

-SKU/BOM or P/N code

-MAC

For Linux systems, capture terminal logs from commands with sudo prefix:

uname –a

ifconfig -a

dmesg

Iw list

lshw -c network

ip route

For PCIe devices:

lspci

lspci –vv

For USB devices:

lsusb

lsusb -t

ls -l /dev/serial/by-id

ls -l /sys/bus/usb-serial/devices
