T-blade Antenna, Fakra Straight

Article Number: 10272
Brand: 2J
Supplier number: 2J5204P R-210RG174-

The antenna is terminated with a 10k ohm resistor and can be used in applications where you need check if the antenna is connected or not (open circuit).

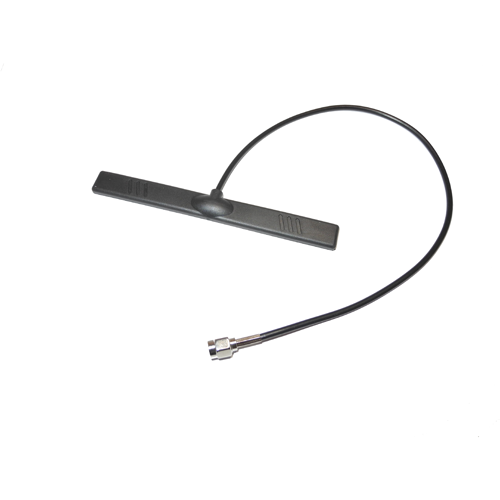

This antenna has a 2.1m cable with Fakra D Bordeaux straight male connector (Picture showing the right antenna with a standard connector).

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

Do you need offline data on this product?

Download datasheet

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
Technology / Antenna Frequency
LTE 698-960/1710-2690 MHz
GSM 850/900/1800/1900 MHz
Wifi/Bluetooth 2400
UMTS 2100
Antenna Location
External
Mounting method
Adhesive
VSWR
2 :1
Gain
2.14 dBi
Connector Type
Fakra
Impedance
50 Ohm
Cable length
30 cm
Cable Specification
RG174
Polarization
Linear
Max power
25 W
Operating Temperature Range
-40 °C – 85 °C
Width
12.5 mm
Length
117.4 mm
Height
6.7 mm
Data-Sheet for External T-blade Antenna

Download

Uploaded at
2014-02-06 10:24:51
Last updated
2021-07-01 15:52:59
