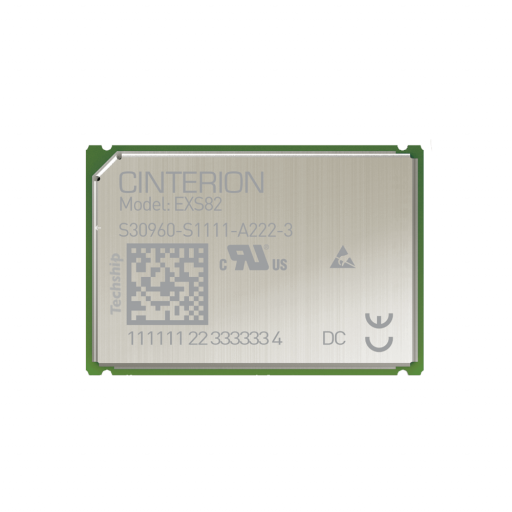

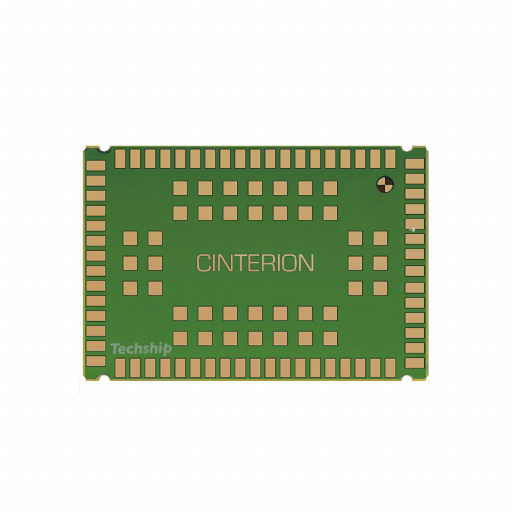

Telit Cinterion EXS82-W Rel.1.3 LTE Cat-M/NB2 LGA

Article Number: 12665
Brand: Telit Cinterion
Supplier number: L30960N6200A130

EXS82 supports 2G Fallback

EXS62 does not support 2G Fallback

The Cinterion® EXS82 IoT wireless module platform is driving evolution from LTE to 5G and enabling Low Power Wide Area (LPWA) connectivity for billions of new industrial applications. The platform delivers global LTE-M and NB-IoT connectivity with optional 2G fallback plus support for evolving 5G technologies. Delivering a range of highly efficient IoT-optimized data speeds, the platform is ideal for small, battery-operated devices in remote locations including smart meters, asset trackers, healthcare apps, wearables and smart city solutions.

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

Do you need offline data on this product?

Download datasheet

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
Region
Europe
North America
South America
Asia
Australia
China
Japan
Africa
APAC
Primary Technology
eMTC (Cat-M1)
NB-IoT (NB2)
NB-IoT (NB1)
Fallback
2G
Form Factor
LGA
LTE Bands
B1 (FDD 2100)
B2 (FDD 1900)
B3 (FDD 1800)
B4 (FDD 1700 / AWS)
B5 (FDD 850)
B8 (FDD 900)
B12 (FDD 700ac)
B13 (FDD 700c)
B18 (FDD 800)
B19 (FDD 800)
B20 (FDD 800DD)
B25 (FDD 1900)
B26 (FDD 850)
B27 (FDD 800)
B28 (FDD 700)
B66 (FDD 1700 / AWS-3)
B71 (FDD 600)
B85 (FDD 700)
GSM/EDGE Bands
B2 (1900)
B3 (1800)
B5 (850)
B8 (900)
Max DL Speed
0.588 Mbps
Max UL Speed
1 Mbps
GNSS
Yes
GNSS technology
GPS
GLONASS
Galileo
BeiDou
Antenna Connectors
Through pin
Certification
RoHS
REACH
PTCRB
CE RED
FCC
IC
GCF
ANATEL
Carrier Certification
Verizon
AT&T
Operating Temperature Range
-40 °C – 85 °C
Extended Operating Temperature Range
-40 °C – 85 °C
Chipset
Qualcomm
MDM9205
Data Interface
Serial / UART
SPI
USB 2.0
I2C
Voice Call Support
No
Driver Support
Windows 10
Windows 8
Windows 7
Linux
Size
27.6x18.8x2.3 mm

Datasheet for Telit Cinterion EXS62 and EXS82 modules

Download

Uploaded at
2023-11-16 11:09:12
Last updated
2023-11-16 11:09:12
Related products
Telit Cinterion EXS62-W Rel.1.3 LTE Cat-M/NB2 LGA
Telit Cinterion EXS82-W Rel.1.3 LTE Cat-M/NB2 LGA

Hardware migration guide for ELS6x and EXSx series

Download

This folder includes the following documentation:

TC_AT_Command_Response_Timeouts_Application_Note_r1

TC_EXS62_EXS82_TX62_TX82_Jamming_Detection_RLS_Application_Note_r1

TC_EXSx2_Thermal_Solutions_Applications_Note_r0

TC_EXSx2_TXx2_Transport_Layer_Security_Application_Note_r0

TC_EXSx2-W_SMT_Module_Integration_Application_Note_r0

TC_EXSx2-W_TXx2-W_Updating_Firmware_Application_Note_r0

TC_Power_Supply_for_Wireless_Applications_Application_Note_r0

TC_SMT_Module_Integration_Application_Note_r0

Download

Uploaded at
2023-11-16 11:12:36
Last updated
2023-11-16 11:12:36
Version
r0
Related products
Telit Cinterion EXS82-W Rel.1.3 LTE Cat-M/NB2 LGA
Telit Cinterion EXS62-W Rel.1.3 LTE Cat-M/NB2 LGA

This archive contains the Telit Cinterion EXSx2-W firmware (01.200-arn01.000.13). Please relate to the release notes prior to update regarding update instructions and changes.

Download

Uploaded at
2023-11-17 11:57:59
Last updated
2023-11-17 11:57:59
Version
01.200-arn01.000.13
Related products
Telit Cinterion EXS82-W Rel.1.3 LTE Cat-M/NB2 LGA
Telit Cinterion EXS62-W Rel.1.3 LTE Cat-M/NB2 LGA
