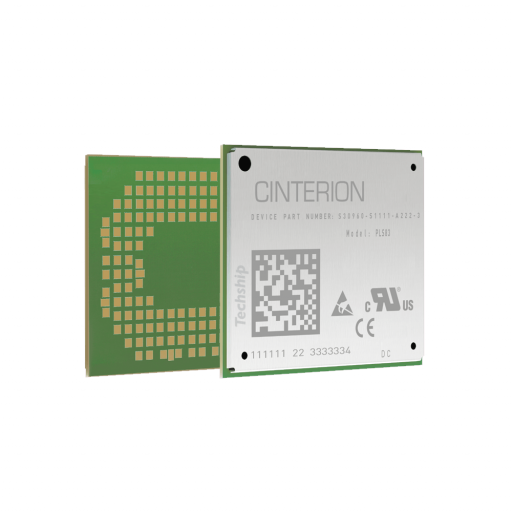

Telit Cinterion PLS83-X Rel.1.3 LTE Cat-4 LGA

Article Number: 12681
Brand: Telit Cinterion
Supplier number: L30960N6510A130

** Data-Only Version (no VoLTE)

The Telit Cinterion® PLS83-X provides high-speed IoT connectivity delivering 18 Band LTE Cat.4 with 2G/3G fallback for seamless coverage across a wide variety of different wireless networks. Offering IoT optimized speeds of 150Mbit/s download and 50Mbit/s uplink, the PLS83 IoT module is ideal for industrial IoT applications such as transportation and industrial automation and gateways. All of these applications require high bandwidth plus the longevity and stability of LTE networks along with continuous coverage in regions where a 4G connection is not present.

This is the North American version of the PLS83-X with 3G fallback. Other versions like the PLS83-X2 and PLS83-X3 have more focused bands without the 3G fallback support.

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

Do you need offline data on this product?

Download datasheet

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
Region
North America
Primary Technology
LTE - cat 4
Fallback
3G
Form Factor
LGA
LTE Bands
B2 (FDD 1900)
B4 (FDD 1700 / AWS)
B5 (FDD 850)
B12 (FDD 700ac)
B13 (FDD 700c)
B14 (FDD 700PS)
B25 (FDD 1900)
B26 (FDD 850)
B66 (FDD 1700 / AWS-3)
B71 (FDD 600)
UMTS Bands
B2 (1900)
B4 (AWS)
B5 (850)
Max DL Speed
150 Mbps
Max UL Speed
50 Mbps
GNSS
Yes
GNSS technology
GPS
GLONASS
Galileo
BeiDou
Antenna Connectors
Through pin
Certification
PTCRB
CE RED
FCC
IC
GCF
CE
Carrier Certification
Verizon
AT&T
Operating Temperature Range
-40 °C – 95 °C
Chipset
Qualcomm
MDM9207
Data Interface
Serial / UART
UICC
PCM
SPI
USB 2.0
Voice Call Support
No
Driver Support
Windows 10
Windows 8
Windows 7
Android
Linux
Size
33x29x2.6 mm

This folder includes the following documentation:

TC_PLSx3_AT_Command_Response_Timeouts_Application_Note_r0

TC_PLSx3_Getting_Started_Startup_Guide_r0

TC_PLSx3_GNSS_Antenna_Integration_Application_Note_r0

TC_PLSx3_Hardware_Interface_Description_Application_Note_v01.002c_r0

TC_PLSx3_Hardware_Interface_Description_Application_Note_v01.005t_01.006_r0

TC_PLSx3_Hardware_Interface_Description_Application_Note_v01.210a_r1

TC_PLSx3_Hardware_Interface_Description_r0

TC_PLSx3_Jamming_Detection_Radio_Link_Stability_Application_Note_r0

TC_PLSx3_OTA_Firmware_Update_Application_Note_r0

TC_PLSx3_RMNET_Connection_Setup_Application_Note_r0

TC_PLSx3_RX_Diversity_MIMO_Antenna_Integration_Application_Note_r0

TC_PLSx3_SMT_Module_Integration_Application_Note_r0

TC_PLSx3_Telstra_Customization_Issues_Application_Note_r0

TC_PLSx3_Thermal_Solutions_Application_Note_r0

TC_PLSx3_Transport_Layer_Security_for_Client_TCP-IP_Services_Application_Note_r0

TC_PLSx3_Updating_Firmware_Application_Note_r0

TC_PLSx3_USB_Interface_Description_Application_Note_r0

TC_Signal_Strength_Bar_Configuration_User_Guide_r0

Download
