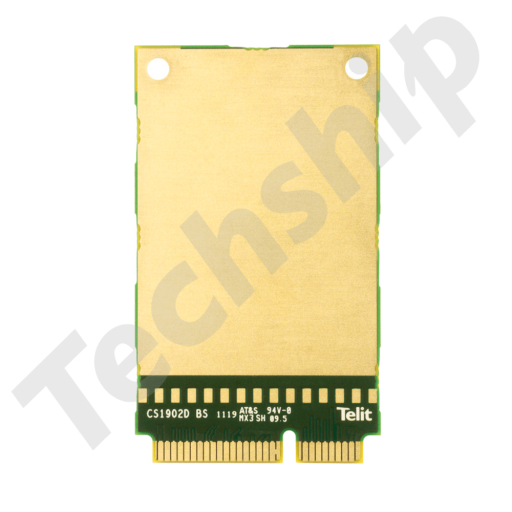

Telit LE910C4-EU is intended for the European market.
It is 3GPP release 10 compliant and comes with simultaneous support of GPS, Glonass, Bei-dou, Galileo, QZSS.
• Standard Mini PCIe Data-card form factor
• Best-in class 3GPP rel10 platform
• Easy to integrate with peripherals and actuators using USB 2.0 HS, UART and user definable GPIOs
• Battery-friendly 1.8V GPIO
• Ideal platform for IoT applications and mobile data
and computing devices with ultra-compact design and extended operating temperature range
• Internet friendly with integrated TCP/IP and UDP/IP stacks,
• Simple drop-in migration and technology design reuse path to 2G and 3G with any xE910 module
• Over-the-Air firmware update
Designers looking to add LTE capabilities to commercial
and industrial computing devices benefit from the
simple, yet powerful mPICe form factor with the
flexibility to choose another technology best suited for
the application environment from any one of the other
models in the xE910 mPCIe series.
Datasheet for Telit LE910Cx series
Hardware design guide for Telit LE910Cx-mPCIe series.
User guide describing the software interface of Telit LE910Cx series modules.
Purpose of this document is providing a detailed specification and a comprehensive listing as a reference for the whole set of AT command for the LE910Cx-series
This document describes the integration steps of the cellular modules USB endpoints in Linux systems.
Voice over LTE (VoLTE) call application note.
Application note for voice audio transmission over USB interface of the Telit LE910Cx series.
Thermal design guide for the Telit LE910Cx series miniPCIe form factor module.
Hardware Release Notes for the Telit LE910Cx Series for the miniPCIe factor.
Application note describing how to use NetworkManager in Linux with Telit Modems
Application note describing how to use ModemManager in Linux with Telit Modems
Application guide for A-GPS functionality on the Telit LE910C1 series, LE910C4 series, ME910C1 series, ML865C1 series, NE910C1 series cellular modules with embedded GNSS tracker.
Application Note for the Telit digital voice interface.
This archive contains the Windows 10 WHQL certified Telit module drivers for both x86 and x64 system platforms.
Zip archive with Telit cellular modules USB drivers installers for Windows 7, 8.x, 10 both x86 and x64 system architectures.
(Non WHQL certified drivers).
Archive containing firmware update files and release notes compatible with Telit XFP tool.
This archive contains the Telit LE910Cx TFI firmware updater tool and related release notes
What Linux kernel modules and configs are commonly used for communicating with cellular modules over their USB interface?
Most cellular modules can be supported in Linux by using som of the in-kernel drivers. The physical data interface to the host Linux system is usually done over USB which enumerates a set of different endpoints/interfaces. A set of serial interfaces for Modem/PPP, AT commands, NMEA location data and chipset debug information are almost always available in all configurations.
In addition some type of network endpoint/interface are also available and exposed. This can vary between manufacturers and chipset vendors and can also commonly be configurable by using USB configuration mode switching or through vendor specific AT commands.
Recommended kernel configurations to enable are listed bellow. Many cellular modules base their Linux support on these modules and drivers. Once included in the kernel build, the USB interfaces will be detected and bound correctly out-of-the-box or after applying source code patches to the driver modules.
Configs for USB serial drivers:
Configs for Modem/PPP support:
Configs for USB network drivers:
Please relate to the Techship product specific web pages for vendor specific Linux integration guides.
Below is a selection of kernel commits relating to cellular module support in Linux kernels:
qmi_wwan: Add support for Fibocom NL678 series
qmi_wwan: Added support for Telit LN940 series
qmi_wwan: Added support for Fibocom NL668 series
USB: serial: option: add support for GosunCn ME3630 RNDIS mode
USB: serial: option: add support for Simcom SIM7500/SIM7600 RNDIS mode
USB: serial: option: add Simcom SIM7500/SIM7600 (MBIM mode)
USB: serial: option: add Fibocom NL678 series
USB: serial: option: add Telit LN940 series
USB: serial: option: add Fibocom NL668 series
USB: serial: option: add GosunCn ZTE WeLink ME3630
qmi_wwan: apply SET_DTR quirk to the SIMCOM shared device ID
If you use any of the listed cellular modules, drivers and specified USB modes in the commits above, ensure that your kernel version already include the patch or apply it to your build.
How can we establish data connection for cellular modules in Windows 8 and Windows 10 systems?
Microsoft Windows desktop versions starting from Windows 8 and newer have built in data connection manager for WWAN, Wifi etc. that can be used to configure, control and establish the data connection of cellular module that support MBIM interface, which most cellular modules do.
The connection managers settings and controls can be found and accessed on Windows desktop start menu through the network icon (see picture).
The Cellular tab can be found in Windows system settings and if needed the connection APN details can be manually entered through "Advanced options".
How-to change the cellular modulesUSB composition mode to Mobile Broadband Interface Model (MBIM) used by Windows 8 and 10 systems for controlling and establishing data connectivity through the built-in connection manager in Windows?
This is done by sending a set of AT commands to the cellular modules Modem or AT serial interface found in Windows Device Manager. Please see list below for associated AT commands.
(For additional details, refer to the product specific software, ports, and AT commands guides found on the Techship product web pages under technical documentation tab).
After the AT commands have been received by the module and has restarted, the USB interface endpoint composition should have changed to include MBIM interface as well.
You can find the correct Serial COM port number by checking Windows Device Manager, under the Modems drop down -> (right click and see properties for selected COM port info) or under the Ports (COM & LPT) drop down.
Vendor specific commands to use:
Sierra Wireless EM75xx series module:
Sierra Wireless EM74xx, MC74xx series module:
Sierra Wireless EM73xx, MC73xx series module:
Simcom SIM7100, SIM7500 and SIM7600 series modules:
ZTE Welink ME3630 series:
Telit LE910C1 and LE910C4 series:
Telit LM940 and LM940A11:
Telit LM960 and LM960A18:
Telit LE910 V2 series:
On Huawei and Telit LN94x series modules the USB mode changing is done automatically by the modules Windows drivers based on current Windows version.
Please be aware that some USB mode configurations do not include any serial interfaces, making it impossible to revert the changes using AT commands.
How to set up a simple data connection over Qualcomm QMI interface using libqmi and driver qmi_wwan in Linux?
Several cellular modules based on Qualcomm chipsets implements the Qualcomm MSM QMI RMNET Interface.
There is a open source Linux in-kernel driver supporting this interface called qmi_wwan. The helper library libqmi can be used to communicate with the cellular devices over the interface and do cellular module configurations to control and trigger the data connection over the cellular network.
Install the libqmi Linux library using e.g. your OS package manager like apt etc.
(Check out the official libqmi page here: https://www.freedesktop.org/wiki/Software/libqmi/)
Please be aware that libqmi is a 3rd party software not distributed by the chipset or module vendors. So full compatibility on all available commands should not be expected.
There are Qualcomm chipset standard QMI commands and in addition vendors specific custom QMI commands not supported by all manufacturers, but still available in libqmi. There are also new QMI commands not supported in older chipsets and vice versa, old QMI commands no longer supported in new chipset series.
Verify that you have the Linux in-kernel qmi_wwan driver installed and loaded for the cellular modules QMI interface endpoint over USB:
Can look like this:
|__ Port 1: Dev 3, If 2, Class=Vendor Specific Class, Driver=qmi_wwan, 480M
If the driver is not loaded correctly, please verify that the cellular module is set to expose QMI RMNET network interface endpoint in its configuration. How to do so can often be found in AT commands guides, Linux implementation guides and similar from the cellular module vendors.
Libqmi library include a command line tool qmicli that can be used in a more convenient way communicate directly with the module over QMI interface for testing, scripting and troubleshooting.
The qmicli help will output information about all commands available:
The qmi_wwan network control interfaces for modules are usually named like cdc-wdm# under /dev/ path.
Use the attribute --device or -d to specify it for qmicli in your command execution:
qmicli -d /dev/cdc-wdm0
In order to ease usage of the QMI interface and handle parallell command requests, libqmi include a proxy function to handle it correctly on the QMI interface, To use it, make sure to have the the attribute present in the qmicli command:
Example commands on how to communicate
Request module manufacturer:
qmicli -p -d /dev/cdc-wdm0 --dms-get-manufacturer
Get module model:
qmicli -p -d /dev/cdc-wdm0 --dms-get-model
Get firmware version:
qmicli -p -d /dev/cdc-wdm0 --dms-get-revision
Get module IDs (IMEI etc.):
qmicli -p -d /dev/cdc-wdm0 --dms-get-ids
Get SIM card status:
qmicli -p -d /dev/cdc-wdm0 --uim-get-card-status
The script qmi-network can be used to establish a simple data connection, it will automatically try to verify the IP framing type match them correctly between qmi_wwan driver and module (Raw-IP vs. 802.3 IP framing).
Create a config file containing your network operator APN details and if needed, the username and password.
Save it e.g. in the default location /etc/qmi-network.conf
The parameter --profile=[PATH] can be used to define the path to config when executing qmi-network.
Example config file content: APN details and enabling of proxy usage.
Add the username and password lines if it is needed for your APN:
Once the APN information is saved, you can start the network connection with the command:
qmi-network /dev/cdc-wdm0 start
The name of the related network interface in the Linux system can be acquired with the command:
qmicli -p -d /dev/cdc-wdm0 --get-wwan-iface
Once you see "Network started successfully" message, you can send a DHCP request on the network interface.
Please note that not all DHCP clients in Linux can handle Raw-IP format but udhcpc support it.
udhcpc -q -f -i wwan0
The IP information from the cellular network can also be acquired and set manually to the network interface by the user or scripting, the correct address details can be acquired from the cellular module over QMI with command:
qmicli -p -d /dev/cdc-wdm0 --wds-get-current-settings
If the connection was successfully set up and established, you now have a data connection. Ping request to a remote server using the cellular network interface can prove this:
ping -I wwan0 188.8.131.52
The ifconfig Linux tool can show the current details for the network interface:
To bring down and stop the cellular network connection, please use the stop command bellow:
qmi-network /dev/cdc-wdm0 stop
The ModemManager tool for Linux is based on libqmi. NetworkManager and ModemManager . Please note however that these two tools expect the cellular module interfaces to only be used by them so if you manually want to use the libqmi library or AT commands interfaces, please turn off/disable ModemManager and NetworkManager first.
The libqmi is a generic open source library for Linux systems and QMI protocol from Qualcomm, therefor there are several commands only working on selected devices and not necessarily on supported in the specific device you use, resulting in an error message.
How to collect initial diagnostics data and logs for Telit cellular modules needed when requesting Techship technical support?
In order to ease the troubleshooting of technical problems and understand your end-product or application and its usage scenario we ask you to please provide the following information when creating a technical support ticket at: techship.com/technical_support/
Please give a detailed problem description and in what precise circumstances it is present.
Describe the host system:
-Hardware (system board, processor architecture, other peripheral devices...)
-Operating system with detailed versions (E.g. Windows version and build, Linux distribution, kernel version)
-Drivers used and versions (Linux: out-of-tree vendor drivers or in-kernel drivers?)
Details from the cellular module label:
-SKU/BOM or P/N code
For Linux systems, capture terminal logs from commands:
ls -l /dev/serial/by-id
ls -l /sys/bus/usb-serial/devices
The cellular module logs can be acquired by accessing one of the USB enumerated serial (COM) interfaces or physical UART serial interfaces accepting AT commands. In Windows device manager they are generally found as modem infterface or serial and ports interface types).
Send AT commands to module and capture the text output:
Test that you get a OK reply:
Enable AT command echo:
Verbose error reporting:
USB endpoint configuration:
Serial port configuration:
Selected network access techniques:
List network operator info:
Network registration status:
Last serving cell network information:
Current network status:
List APN details:
List Packet switch enable/disable status:
List PDP profiles status:
List default data connection details:
List bearers and IP addresses:
Additional test commands for Telit LM940/LM960:
We cannot acquire an DHCP address over qmi_wwan driver when using Raspbian Linux OS?
Raspbian uses dhcpd to probe all available network interfaces found in the system, which is problematic for the qmi_wwan driver interface, if it is done before being configured properly when using cellular modules supporting only Raw-IP.
This can be avoided by setting dhcpd to deny the related cellular module network interface (most often named wwan0 by the system).
Add to the /etc/dhcpcd.conf file in Raspbian the following line (in the end):
Now, restart the system (preferably re-power it) so cellular module fully restarts also.
At next startup, the settings should be applied and you can now configure and use the qmi interface as described in some of the others faq's, found on the Techship webpage.
