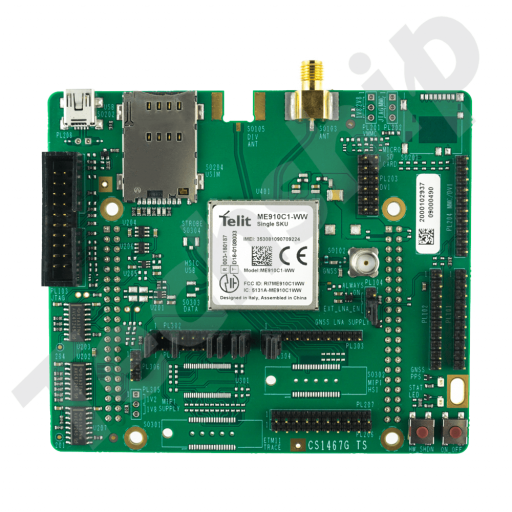

Interface board / translation board (TLB) which can be used with Telit EVK2 IoT Developer Board for rapid development.
This TLB includes a ME910C1- WW module. 11117, Telit ME910C1-WW
Telit Developer Board bought separately 10681, Telit EVK2 IoT Developer Board
This document the describes the specifications of the Telit ME910C1 series modules.
This document is aimed at providing a detailed specification and a comprehensive listing as a Reference for the whole set of AT command
This document is aimed in providing a detailed specification and a comprehensive listing as a reference for the whole set of AT command for LWM2M.
This document provide guidelines for Telit customers about system certification process and how to reduce the effort to reach the North American market.
This archive contains the Telit ME910C1-WW TFI firmware updater tool and related release notes.
How to collect initial diagnostics data and logs for Telit cellular modules needed when requesting Techship technical support?
In order to ease the troubleshooting of technical problems and understand your end-product or application and its usage scenario we ask you to please provide the following information when creating a technical support ticket at: techship.com/technical_support/
Please give a detailed problem description and in what precise circumstances it is present.
Describe the host system:
-Hardware (system board, processor architecture, other peripheral devices...)
-Operating system with detailed versions (E.g. Windows version and build, Linux distribution, kernel version)
-Drivers used and versions (Linux: out-of-tree vendor drivers or in-kernel drivers?)
Details from the cellular module label:
-SKU/BOM or P/N code
For Linux systems, capture terminal logs from commands:
ls -l /dev/serial/by-id
ls -l /sys/bus/usb-serial/devices
The cellular module logs can be acquired by accessing one of the USB enumerated serial (COM) interfaces or physical UART serial interfaces accepting AT commands. In Windows device manager they are generally found as modem infterface or serial and ports interface types).
Send AT commands to module and capture the text output:
Test that you get a OK reply:
Enable AT command echo:
Verbose error reporting:
USB endpoint configuration:
Serial port configuration:
Selected network access techniques:
List network operator info:
Network registration status:
Last serving cell network information:
Current network status:
List APN details:
List Packet switch enable/disable status:
List PDP profiles status:
List default data connection details:
List bearers and IP addresses:
Additional test commands for Telit LM940/LM960/FN98x:
Additional test commands for Telit FN98x:
