Wifi MIMO Dual-band embedded antenna

Article Number: 11067
Supplier number: 2JF0302PA-010MC137-U

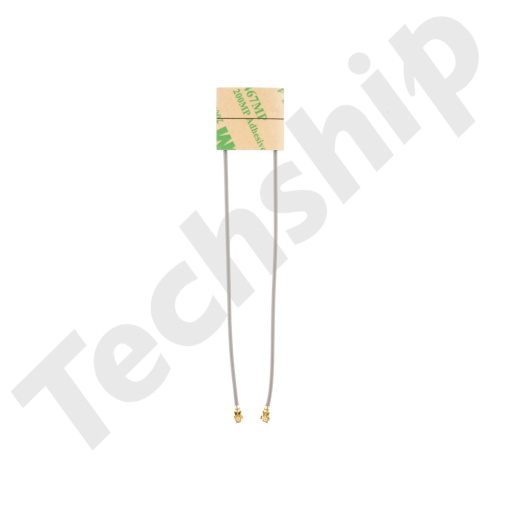

Wifi MIMO Dual-band embedded antenna, 10cm, 1.37mm coax with u.fl connectors.

One of the smallest ISM MIMO flexible self-adhesive embedded antennas on the market
At only 22x20mm size, this flexible self-adhesive embedded antenna is one of the only designs providing a MIMO solution for 2.4GHz-5.0GHz DualBand WIFI ISM bands. This antenna is ready to support any throughput sensitivity, speed and reliability demanded by any ISM application.
The antenna does not fall short of the high efficiency and performance with its 2 antennas along the side packed on one PCB of the size of a coin.

End-of-life

This product has reached
end-of-life and can not be
ordered any more.

Quantity Price

No prices available

For more information
please contact us at
sales-americas@techship.com

For larger quantities and complete pricing, please sign in or register

Do you need offline data on this product?

Download datasheet

Subscribe to stay up to date with the latest about this product.

Subscribe to updates
Manufacturer
2J
Technology / Antenna Frequency
Wifi/Bluetooth 2400
Wifi 5000
Mounting method
Adhesive
Antenna Location
Internal
Connector Type
IPEX MHF/U.FL
Impedance
50 Ohm
Cable length
10 cm
Cable Specification
1.37mm coax
Polarization
Linear
Radiation pattern
Omnidirectional
Max power
10 W
Operating Temperature Range
-40 °C – 85 °C

Datasheet for 2JF0302Pa Embedded Wi-Fi MIMO antenna

Download

Uploaded at
2020-03-06 13:43:15
Last updated
2020-03-06 13:43:15
